JVC DT-V9L3D - Manual (Page 5)

5
ENGLISH

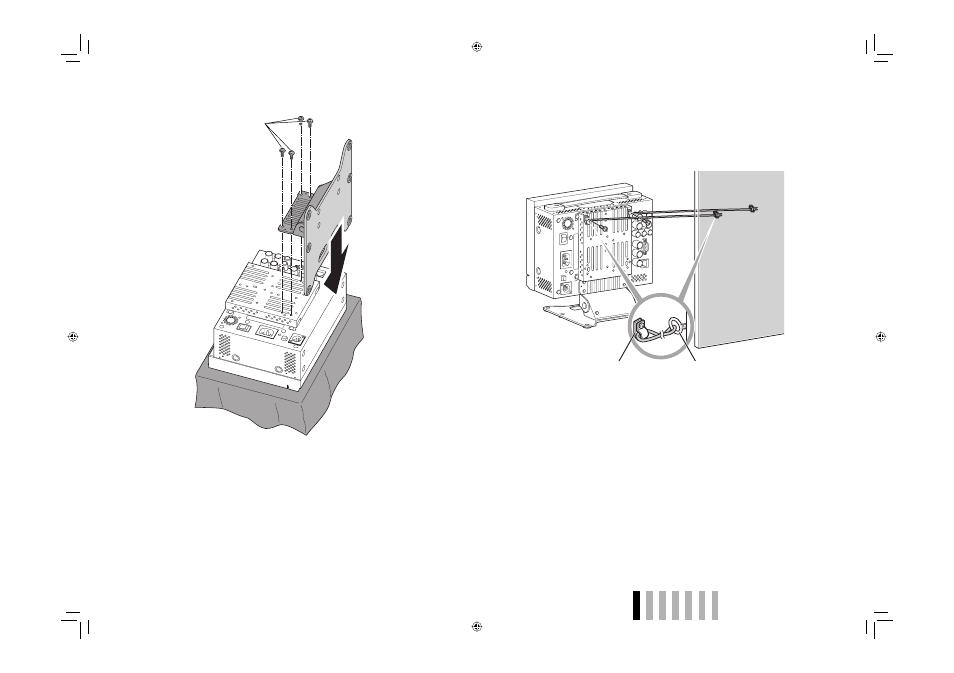

To prevent an accidental fall
Fix the monitor to a wall by using strings.
Fixing the monitor
Attach the hook (not provided) to the VESA mounting holes on the rear panel (use the two 100 mm pitch holes
on the upper side) using M4 x 10 mm screws (not provided). Bind the hooks on the rear panel of the monitor to a
wall or a pillar using durable string.
Lower position
Attachment screws
Stand
Monitor
Hook and screws (M4 x 10 mm)
(not provided)
Hook (not provided)
