22 Specifications
(cont.)
VESA mounting holes
(8-M4, depth: 10 mm)

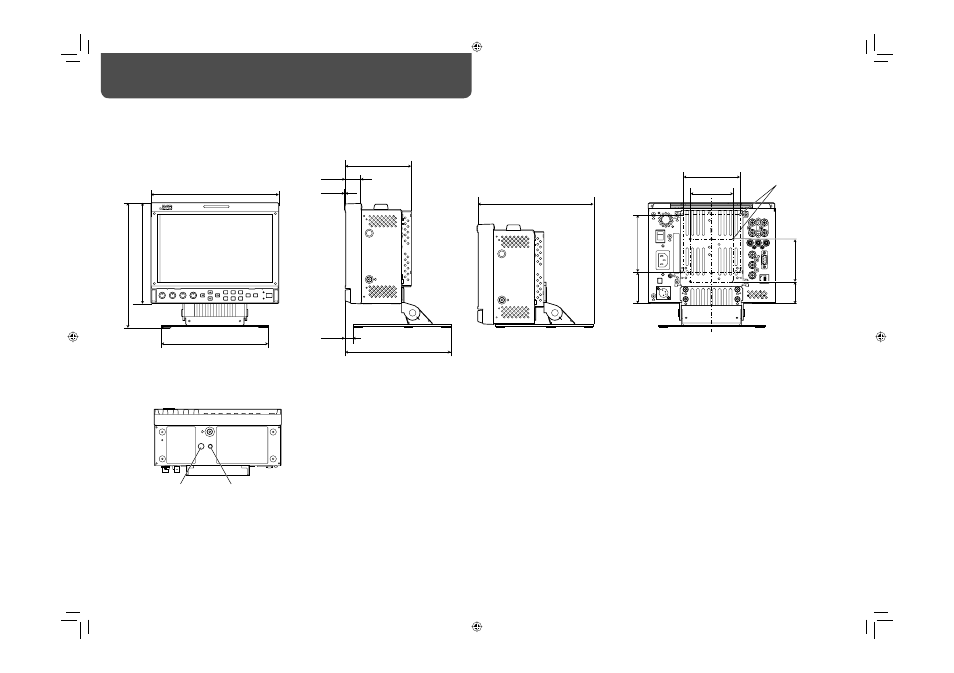

7 Dimensions
Unit: mm (inch)
222.4 (8 7/8)
218 (8 5/8)*/181 (7 1/4)**
* at the higher position
** at the lower position
176 (7)
186 (7 3/8)
116 (4 5/8)
202 (8)
100
75
37.5
(1 1/2)
• When the stand is attached to the
higher position.
• When the stand is attached to the
lower position.
27.5 (1 1/8)
1.5 (1/16)
13 (5/8)
75
100
55 (2 1/4)
tapped hole (1/4 ˝ ) tapped hole (3/8 ˝ )
185 (7 3/8)
