Specifications
Image pickup device
: 1/3 type WDR digital image device
Number of effective pixeis
: 380,000 pixels ((H) 720 × (V) 540)
Synchronizaton method
: Internal,Line lock
Scanning frequency
: U Type (H) 15.734 kHz, (V) 59.94 Hz
E type (H) 15.625 kHz, (V) 50.0 Hz
Resolution
: 480 TV lines (H)
VIDEO OUT
: Composite video signal
1 V(p-p), 75Ω (BNC)
Video S/N ratio
: 50 dB (AGC OFF)
Minimum required illumination : 1.9 lx (50%, F1.2, AGC HIGH)
0.5 lx (50%, F1.2, AGC ULTRA(×16))
0.95 lx (25%, F1.2, AGC HIGH)
0.25 lx (25%, F1.2, AGC ULTRA(×16))
Lens mount
: CS mount
Power supply
: AC 24 V ` 50 Hz/60 Hz
DC 12 V
Power consumption
: U type Approx. 5.7 W
E type Approx. 400 mA
Ambient temperature
: –10°C to 50°C (operation)
0°C to 35°C (recommended)
Mass
: 330 g
Accessory
: Instructions
U type .............................. 1
E type .............................. 2
Ferrite core ....................... 1

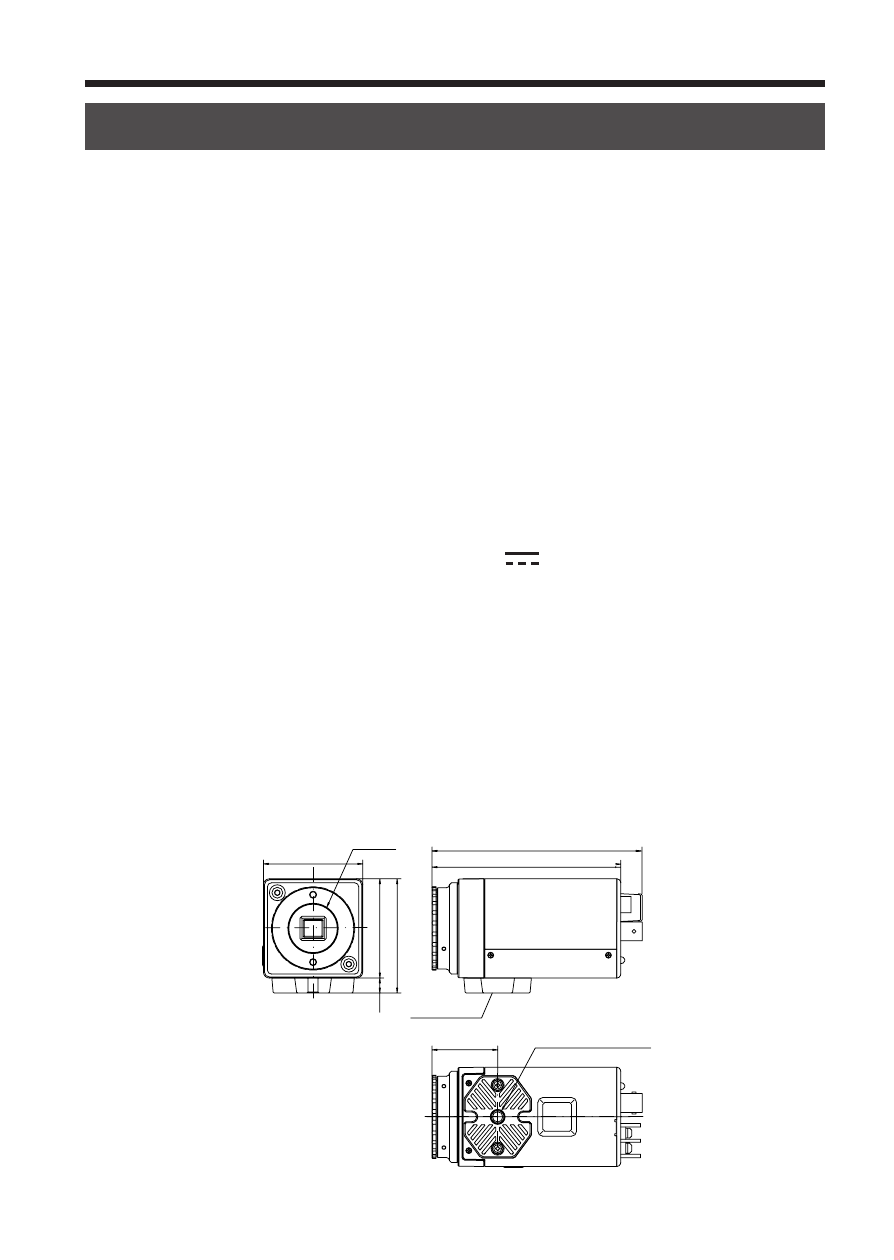

Ⅵ External Dimensions (Unit: mm)
Design and specifications are subject to change without notice.
COLOR VIDEO CAMERA
1/4-20UNC
MOUNTING HOLE
U1-32
50
57.5
7.5
50
107
95
33
TRIPOD
BASE
