Connections
12

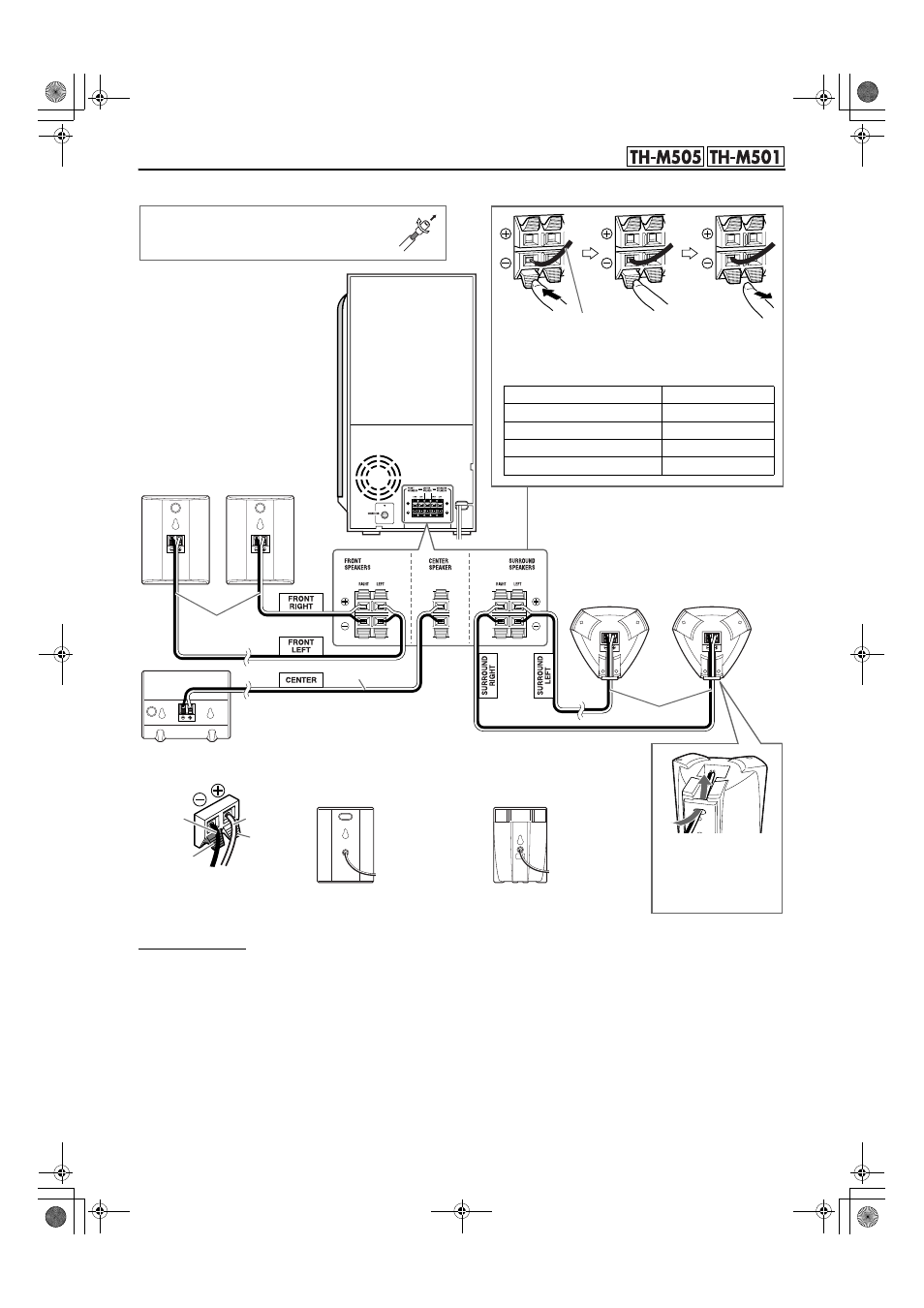

Note that the illustration below is for TH-M505.
CAUTION
• When you connect speakers other than the supplied ones, use
speakers of the same speaker impedance (SPEAKER IMPEDANCE)
indicated near the speaker terminals on the rear of the powered
subwoofer.
• DO NOT connect more than one speaker to one speaker terminal.
• When installing the satellite speakers on the wall;
• Be sure to have them installed on the wall by a qualified personnel.
DO NOT install the satellite speakers on the wall by yourself to
avoid unexpected damage from their falling off the wall due to
incorrect installation or weakness in wall structure.
• Care must be taken in selecting a location for speaker installation
on a wall. Injury to personnel or damage to equipment may result
if the speakers installed interfere with daily activities.
Surround speakers
(Bottom)
( TH-M505: SP-THM505S * 1
TH-M501: SP-THM303S * 2
)
Center speaker
( TH-M505: SP-THM505C * 1
TH-M501: SP-THM303C * 2
)
Front speakers
( TH-M505: SP-THM505F * 1
TH-M501: SP-THM303F * 2
)
• Connect the silver cords to the black (r) terminals.
• Connect the copper cords to the (q) terminals referring to
the table below:
Speaker cord (supplied)
FRONT SPEAKERS (RIGHT) Red
FRONT SPEAKERS (LEFT) White
CENTER SPEAKER Green
SURROUND SPEAKERS (RIGHT) Gray
SURROUND SPEAKERS (LEFT) Blue
Before connecting the speaker cords;
Twist and pull the insulation coat off and remove.
Powered subwoofer
( TH-M505: SP-PWM505
TH-M501: SP-PWM501 )
4 m (13 feet)
10 m (33 feet)
Route the speaker cord
through the hole on the
bracket.
4 m (13 feet)
*1 For TH-M505 *2 For TH-M501, the satellite speakers are equipped with their speaker
cords attached directly to their speaker unit instead of having speaker
terminals on their cabinet.
Copper
Red
Black
Silver
Front/Center
speakers Surround
speakers
Continued on next page
