TM-H1900G 1-4
No.51960
ENGLISH
PAL
VOLUME :20
PHASE :00
+ –
Items
VOLUME/SELECT button
– +
CHROMA
lighter deeper (Chroma)
PHASE
reddish greenish (Phase)
CONTRAST
lower higher (Contrast)
BRIGHT
darker brighter (Brightness)
STATUS indication
(PAL or NTSC)
00 ~ 50
–40 ~ +40
HOW TO HANDLE BASIC
OPERATIONS
BASIC OPERATION
PICTURE ADJUSTMENT
2. Press the POWER switch to turn on the power.
ON : Power turns ON. (Power indicator: lit)
Green:The main power is ON, and the monitor’s
power is ON (in the normal operation mode).
OFF : Power turns OFF. (Power indicator: unlit)
Orange :The main power is ON, but the monitor’s
power is OFF (in the standby mode)
Unlit :The main power is OFF.
3. Press the INPUT SELECT buttons to choose input.
Select video/audio signals input to terminals on the rear
panel. The selected button lights in green.
4. Press the VOLUME/SELECT buttons to adjust the
speaker volume.
Press this button to display the speaker volume level on the
screen.
+ : The Built-in speaker volume is increased. (00
[ 50)
– : The Built-in speaker volume is decreased. (50 [ 00)
* Screen indication will disappear about 10 seconds after operating.
* The on-screen display goes off when you press MENU button.
1. Press select buttons corresponding to the item
you want to adjust.
The item you select is displayed on the screen.
1 Chroma control : Press the CHROMA/PHASE button once.
2 Phase control : Press the CHROMA/PHASE button twice.
3 Contrast control : Press the CONTRAST/BRIGHT button once.
4 Brightness control : Press the CONTRAST/BRIGHT button twice.
* Pressing the CHROMA/PHASE button and CONTRAST/BRIGHT button
alternately while the item is shown on screen restores the previous status.
When no item is shown on screen, CHROMA and CONTRAST have priority.
* Screen indication will disappear about 10 seconds after operating.
* The on-screen display goes off when you press MENU button.
About the STATUS indication
● With the COLOR SYSTEM setting set
to AUTO mode, when you turn on the
power or select inputs, the color
system indication appears for about
3 seconds on the screen while PAL or
NTSC signals are being detected.
It does not appear when receiving a
B/W signal or when no signal is input.
Refer to page 9 for more information
about COLOR SYSTEM setting and
page 10 for more information about
STATUS indication setting.
Notes:
● Phase control is effective only in the
NTSC color system mode.
● Chroma control is not effective when
receiving B/W or when no signal is
input.
● When CHROMA is adjusted to “–40,”
the picture becomes less colorful.
● “NO EFFECT” is displayed (for about
3 seconds) when your selected
function has no effect.
● To change the display position on
screen, set UPPER or LOWER with
ADJ. BAR POSI.
2. Adjust with the VOLUME/SELECT buttons.
+ –
7
POWER
VOLUME/SELECT
CHROMA
PHASE BRIGHT
CONTRAST
VOLUME/SELECT
PHASE :00
UPPER
LOWER
VIDEO B (Y/C) terminal
1. Press the main power switch to turn on the power.
INPUT SELECT
A B
Terminals on the rear panel
Video signal input Audio signal input
1 Input A VIDEO A terminal AUDIO A terminal (VIDEO)
2 Input B VIDEO B terminal AUDIO B terminal (VIDEO Y/C)
INPUT
SELECT
buttons
Note:The Y/C (S-video) terminal has priority.
VIDEO A
REMOTE
AUDIO A
AUDIO B
VIDEO B IN OUT
IN
IN
IN
OUT
OUT
IN OUT
Y/C
OUT
18 17
19
19
19

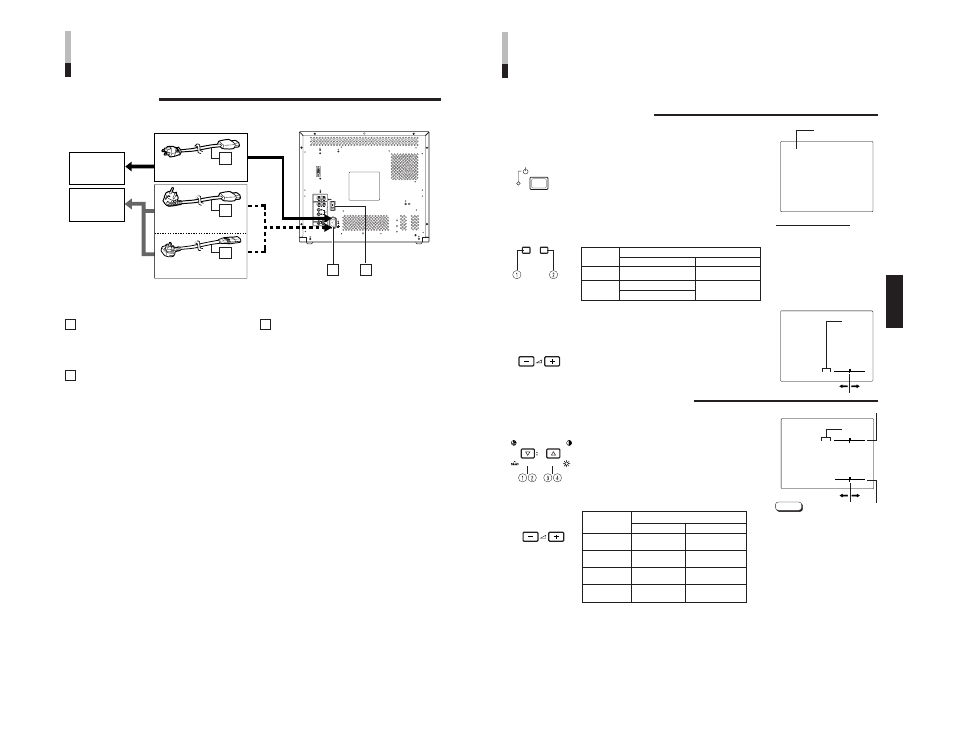

REAR VIEW
CONTROLS AND FEATURES
(cont’d)
6
Main power switch
Press the switch to turn the main power ON or OFF. When
the main power is ON, the power indicator on the front
panel lights in orange and the monitor enters the stand-by
mode.
I : ON
⅜ : OFF
AC inlet [AC IN]
Power input connector. Connect the provided AC power
cord
( to an AC outlet (120 V AC or 230 V AC,
50 Hz/60 Hz).
To AC outlet
(230 V AC,
50 Hz/60 Hz)
For the United Kingdom
For Europe
Power cord
Connects the provided power cord (120 V AC or
230 V AC, 50 Hz/60 Hz) to the AC IN connector
* .
Caution:
In North America (USA and Canada), this monitor comes
with one power cable. In Europe and the United King-
dom, two power cables are provided (one for use in
continental European countries and the other for the UK).
Be sure to use the power cable that is appropriate for the
AC outlets used in your region. If none of the power
cables provided is suitable, please contact your dealer or
qualified service personnel to obtain the correct type of
power cable.
To AC outlet
(120 V AC,
50 Hz/60 Hz)
For U.S.A. and Canada
17
18
19
(Rear view of
TM-H1900G shown)
