STEP 2 (See Diagram 2)
A.) Attach the Leg Developer Holder (#4) to the Front Stabilizer (#3). Secure it with two
M10 x ¾” Allen Bolts (#45) and Ø ¾” Washers (#49).
B.) Attach the Leg Developer Holder to the Main Seat Support (#5). Secure it with two M10
x 2 3/8” Carriage Bolts (#41), Ø ¾” Washers (#49), and M10 Aircraft Nuts (#48)
horizontally. Secure it with one M10 x 2 1/8” Carriage Bolt (#42), Ø ¾” Washer (#49),
and M10 Aircraft Nut (#48) vertically.
C.) Attach the Main Seat Support to the Cross Brace (#8). Secure it with a 4 3/8” x 1 ½”
Bracket (#26), two M10 x 2 3/8” Carriage Bolts (#41), two
∅
¾” Washers (#49), and two
M10 Aircraft Nuts (#48).
D.) Insert the T-shaped Lock Pin (#22) into the hole on the Main Seat Support.

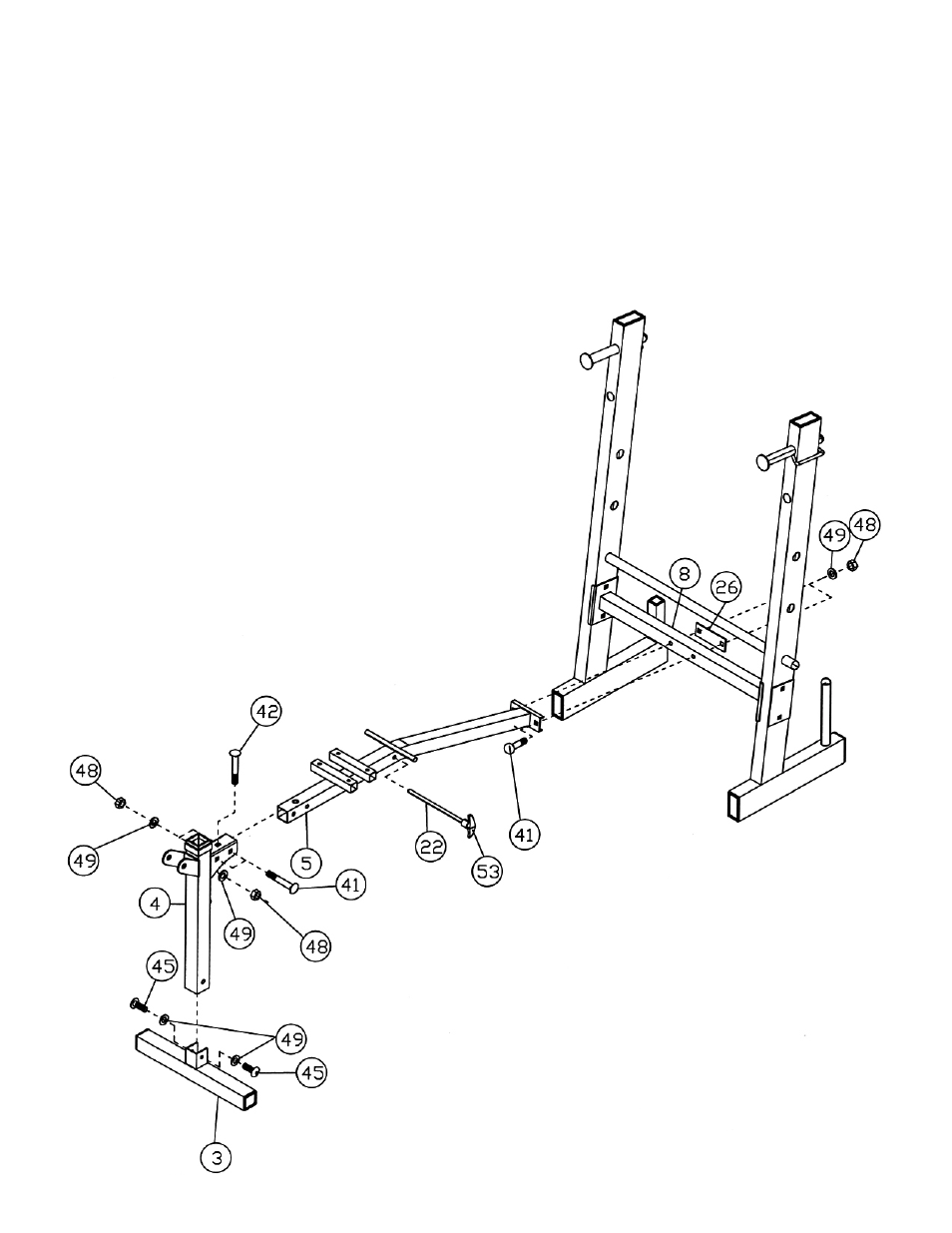

DIAGRAM 2
