INSTALLATIONS

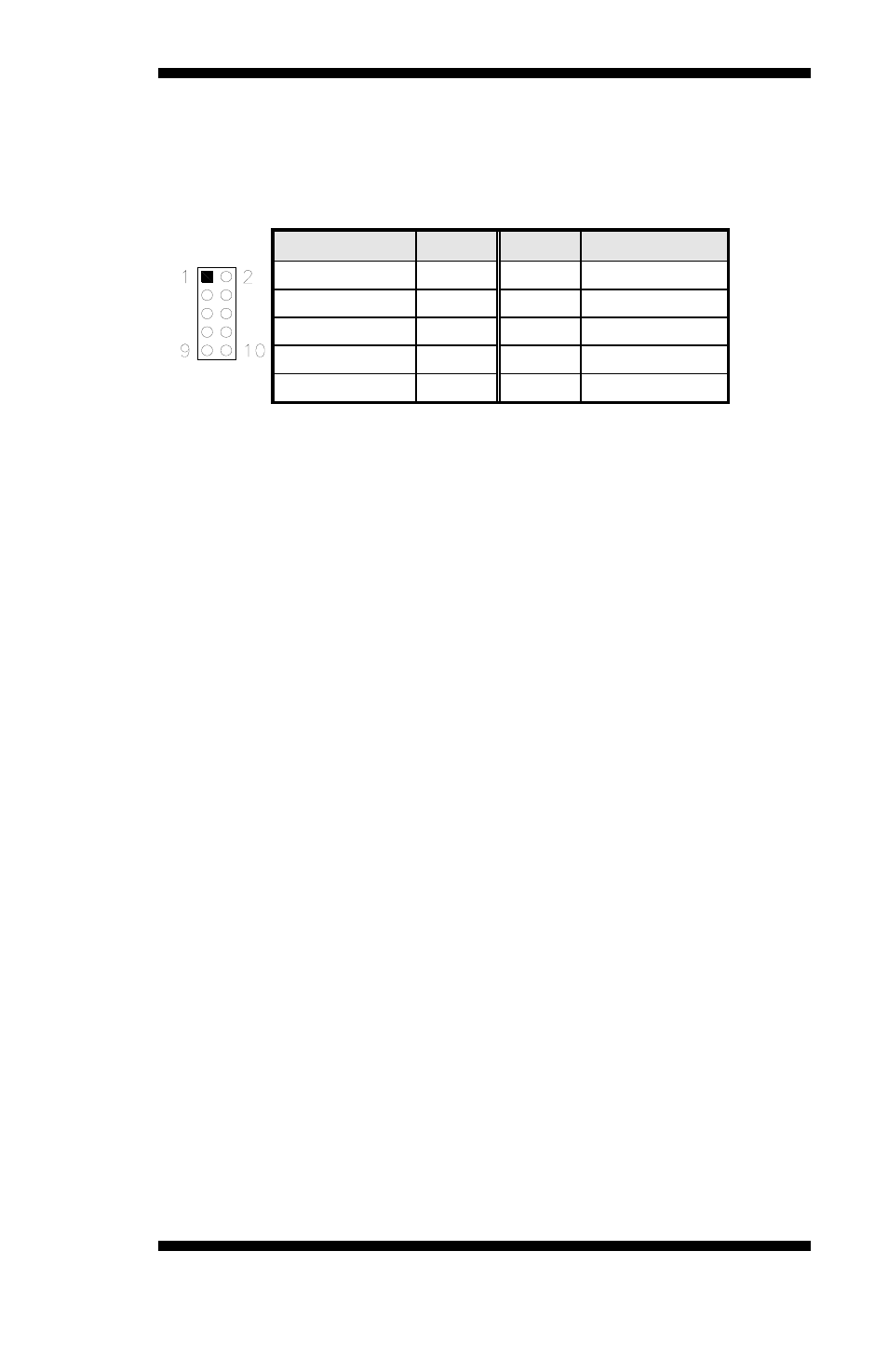

J12: Digital I/O Connector (4 in, 4 out)
This 10-pin digital I/O connector supports TTL levels and is used to
control external devices requiring ON/OFF circuitry.
Signal Name
Pin #
Pin #
Signal Name
Ground 1 2 +5V
Out3 3
4 Out1
Out2 5
6 Out0
IN3 7
8 IN1
IN2 9
10 IN0
PCIE_1: x16 PCI Express Slot
PCIE_2, PCIE_3: x1 PCI Express Slots
PCI1, PCI2, PCI3, PCI4: PCI Slots
J9: CF Socket
MB898 User’s Manual
23
