INSTALLATIONS

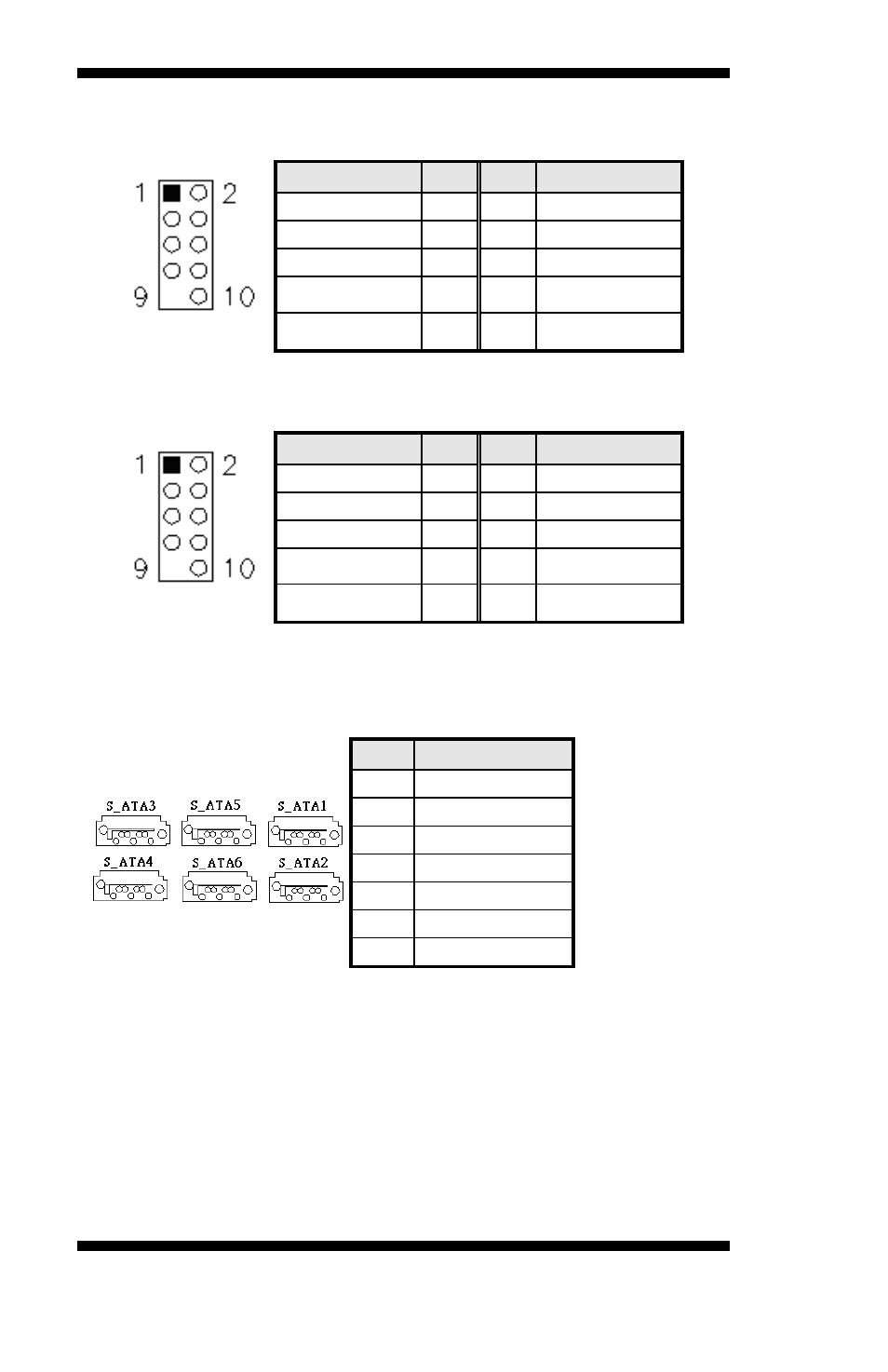

F_USB2: USB2/USB3 Connector
Signal Name
Pin
Pin Signal Name
Vcc 1
2 Vcc
D2- 3
4 D3-
D2+ 5
6 D3+
Ground 7
8 Ground
NC 9
10
Ground
F_USB3: USB8/USB9 Connector
Signal Name
Pin
Pin Signal Name
Vcc 1
2 Vcc
D8- 3
4 D9-
D8+ 5
6 D9+
Ground 7
8 Ground
NC 9
10
Ground
S_ATA1,S_ATA2,S_ATA3,S_ATA4,S_ATA5,S_ATA6:
SATA0/1/2/3/4/5 Connector
Pin #
Signal Name
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
Note: S_ATA5 and S_ATA6 MB898F only
18
MB898 User’s Manual
