Adjusting the Height of the Manual Center Mount
Footrest

ƽ WARNING

While the wheelchair is moving, minimum ground clearance for the front rigging is

three inches. If the wheelchair is not moving, the front rigging MUST maintain a

minimum of one inch ground clearance - otherwise personal injury and damage may

result.

NOTE: For this procedure, refer to FIGURE 6.

1. Loosen the two mounting screws that

secure the button head cleat to the
extension housing.

2. Adjust the footrest extension tube to

the desired height.

3. Secure the extension tube to the desired

height with the button head cleat and
mounting screws. Securely tighten.

4. Repeat STEPS 1‐3 for the other

extension tube.

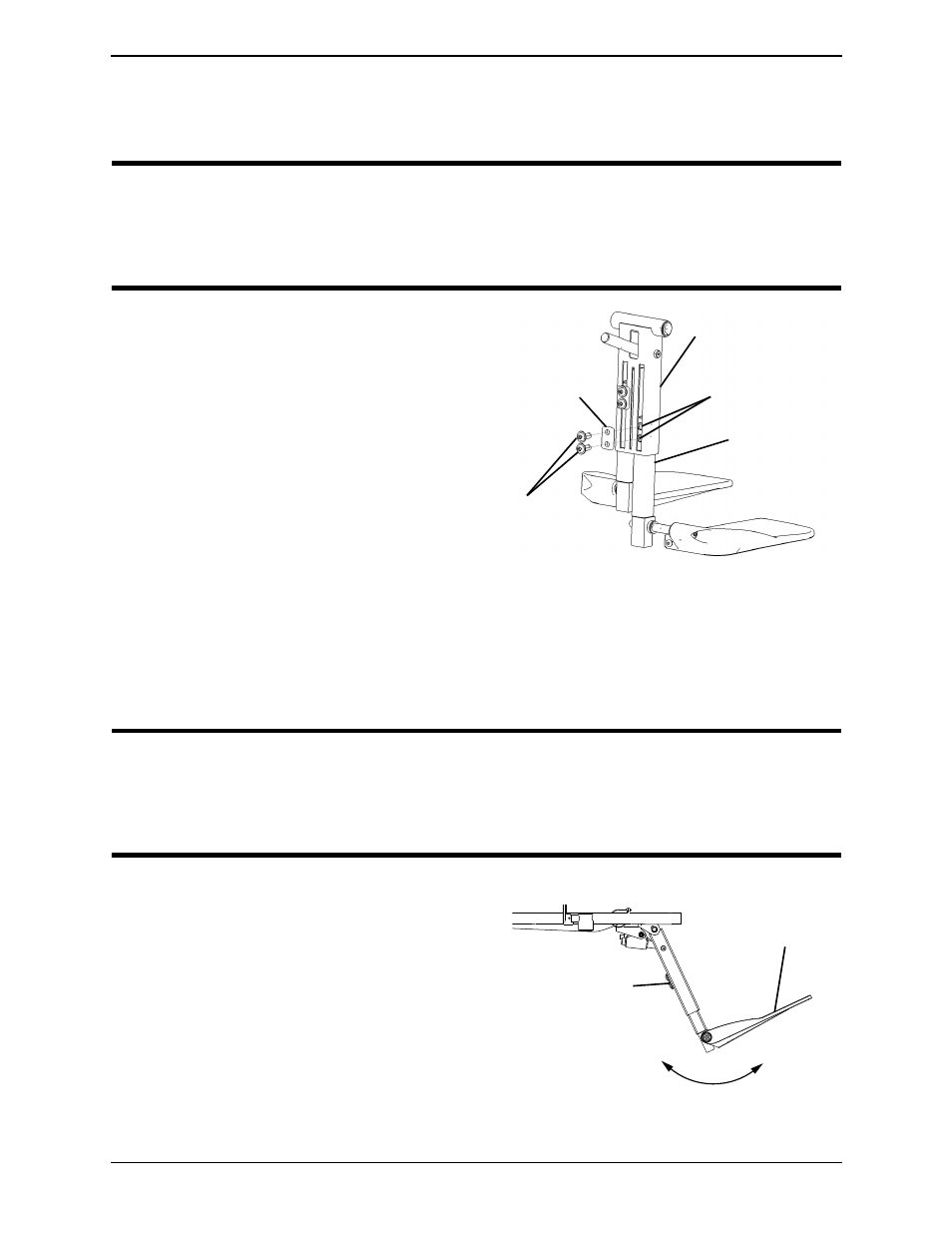

FIGURE 6 Adjusting the Height of the

Adjusting the Angle of the Manual Center Mount
Footrest

ƽ WARNING

While the wheelchair is moving, minimum ground clearance for the front rigging is

three inches. If the wheelchair is not moving, the front rigging MUST maintain a

minimum of one inch ground clearance - otherwise personal injury and damage may

result.

NOTE: For this procedure, refer to FIGURE 5 on page 7 and FIGURE 7.

1. Engage the release lever with one hand

(not shown) and move the center
mount footrest to the desired angle
with the other hand.

NOTE: Refer to FIGURE 5 for the location of
the release lever.

2. Disengage the release lever (not shown)

to lock the center mount footrest in the
new position.

FIGURE 7 Adjusting the Angle of the

Extension Housing

Extension

Tube

Mounting

Screws

Extension Tube

Mounting Holes

Button

Head Cleat

Footplate

Center Mount

Footrest
