11

To remove a cable with a pull connector, grasp the connector with one hand and push it toward the port,
then pull the latch away from the port with your other hand and gently wiggle the connector away from
the port.

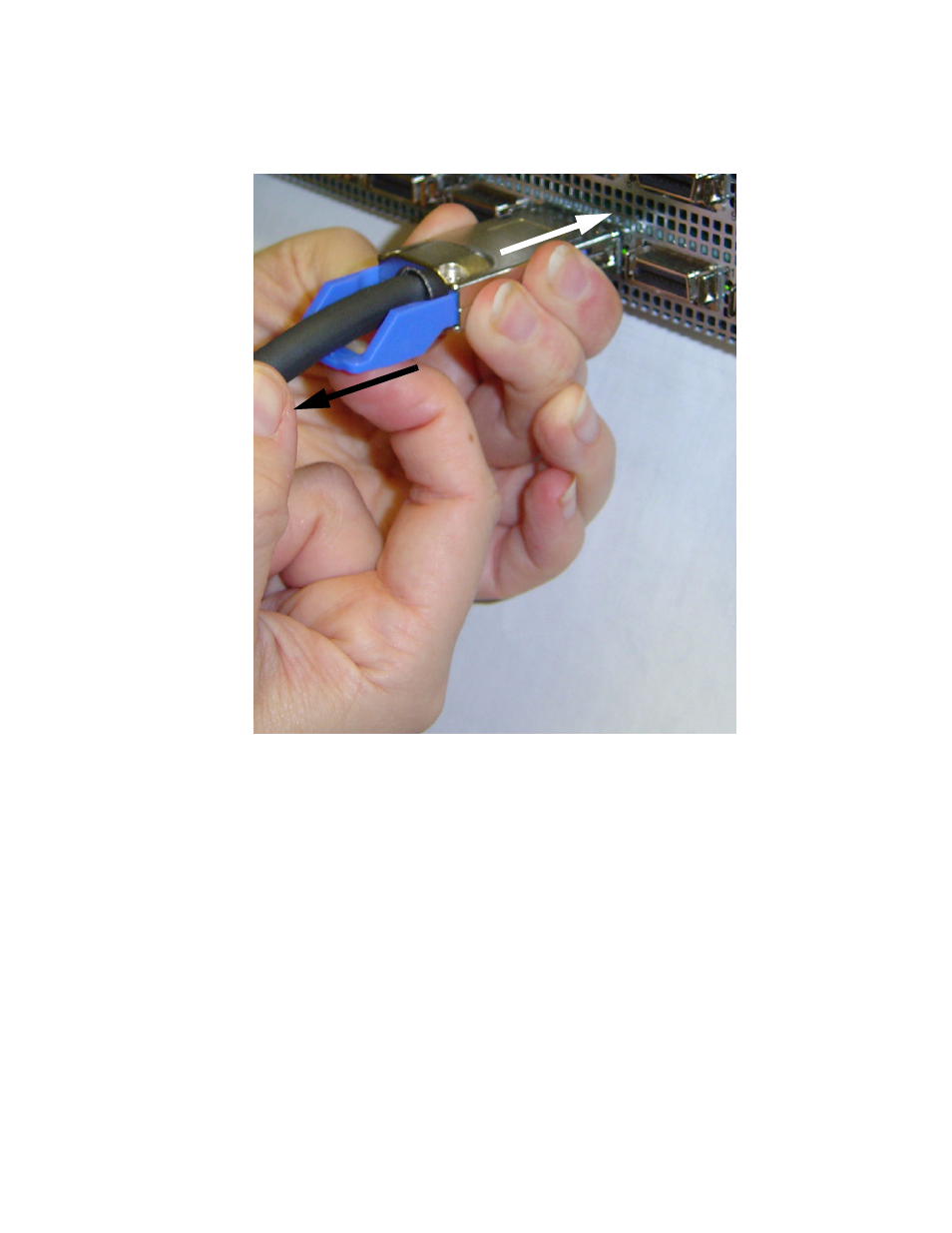

Figure 2-2: Removing a Pull Connector

1. push connector toward port

2. pull latch away from port

3. pull connector away from port
