INSTALLATIONS
14 MB820 User’s Manual

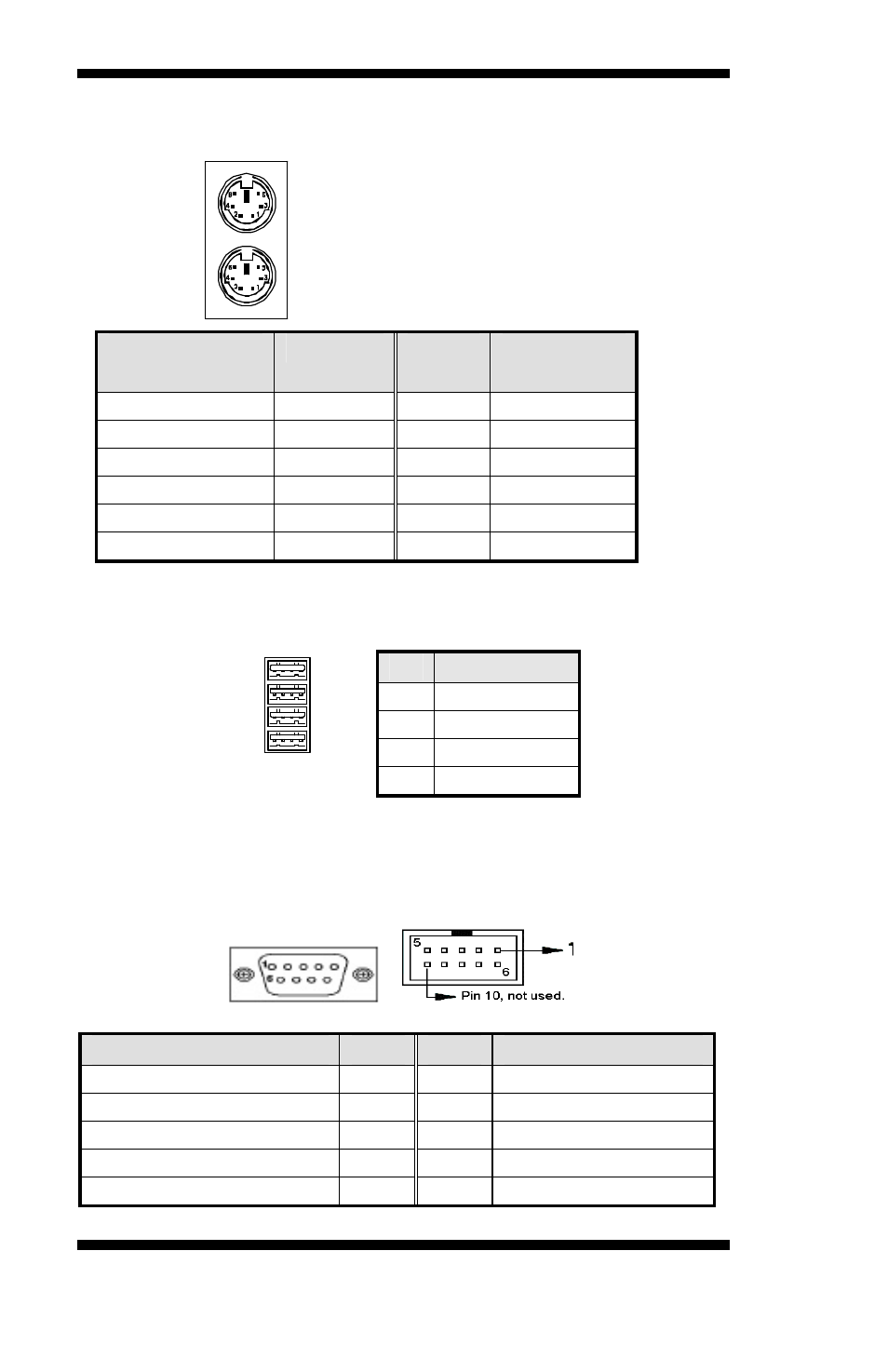

CN1: PS/2 Keyboard and PS/2 Mouse Connectors
PS/2 Mouse
PS/2 Keyboard
Signal Name
Keyboard Mouse Signal Name
Keyboard data 1 1 Mouse data
N.C. 2 2 N.C.
GND 3 3 GND
5V 4 4 5V
Keyboard clock 5 5 Mouse clock
N.C. 6 6 N.C.
CN2: 4-port USB Connector
CN2 is a USB connector consisting of four ports stacked vertically.
Pin Signal Name
1 Ground
2 USB+
3 USB-
CN2
4 Vcc
CN3, J3: Serial Ports
CN3 (COM1) is a DB-9 connector, while J3 is a COM2 pin-header
connector. COM2 is optionally available as a DB-9 connector (CN5).
COM1 COM2
Signal Name Pin # Pin # Signal Name
DCD, Data carrier detect 1 6 DSR, Data set ready
RXD, Receive data 2 7 RTS, Request to send
TXD, Transmit data 3 8 CTS, Clear to send
DTR, Data terminal ready 4 9 RI, Ring indicator
GND, ground 5 10 Not Used
