Intellinet Network Solutions 524537 - Manual (Page 11)

11

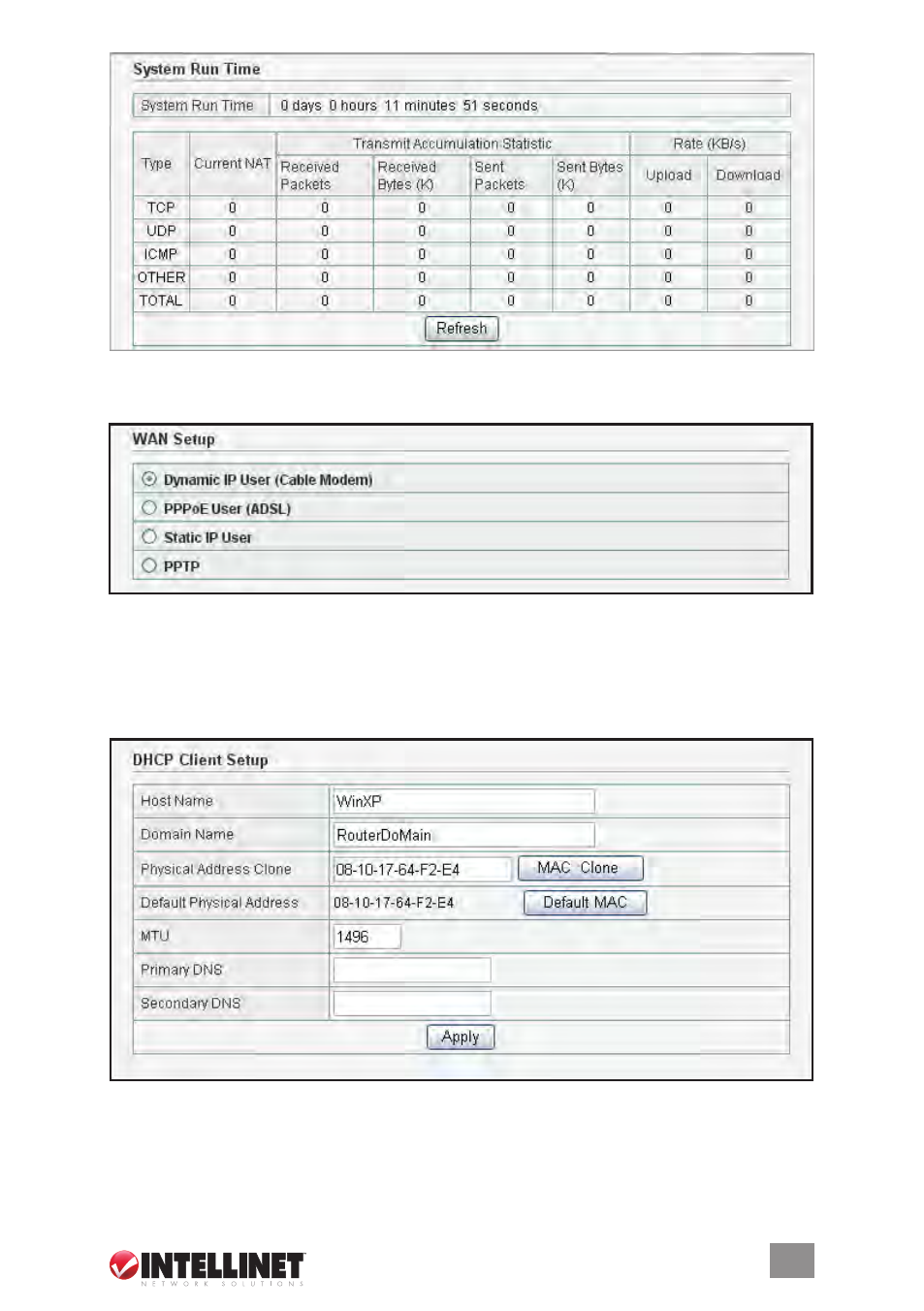

3.2 wan setup
The 4-Port Broadband Router allows one of four Internet-LAN connection types, which can be
selected on this screen: Dynamic IP, PPPoE, Static IP and PPTP. Select the preferred — or,
depending on the Internet service provider (ISP), the required — option to display the
corresponding configuration screen. The default setting is Dynamic IP.
3.2.1 Dynamic IP
Host Name
— This is typically optional, but may be required by some ISPs.
Domain Name
— This is typically optional, but may be required by some ISPs.
Physical Address Clone
— You can click “MAC Clone” to copy the MAC address of your PC
so that it’s also the MAC address of this device (if required by your ISP — see below).
Default Physical Address
— The default MAC address is set to the WAN’s physical interface
