ASUS CUSL2K User’s Manual
3. HARDWARE SETUP
18
Motherboard
Settings
3. H/W SETUP
Motherboard Feature Settings
The motherboard’s onboard functions are either adjusted through jumpers or DIP
switches. When using DIP switches, the white block represents the switch’s posi-
tion. The example below shows all the switches in the OFF position.
1. Frequency Selection
2. Frequency Selection
3. Frequency Selection
4. Frequency Selection
5. Frequency Selection.

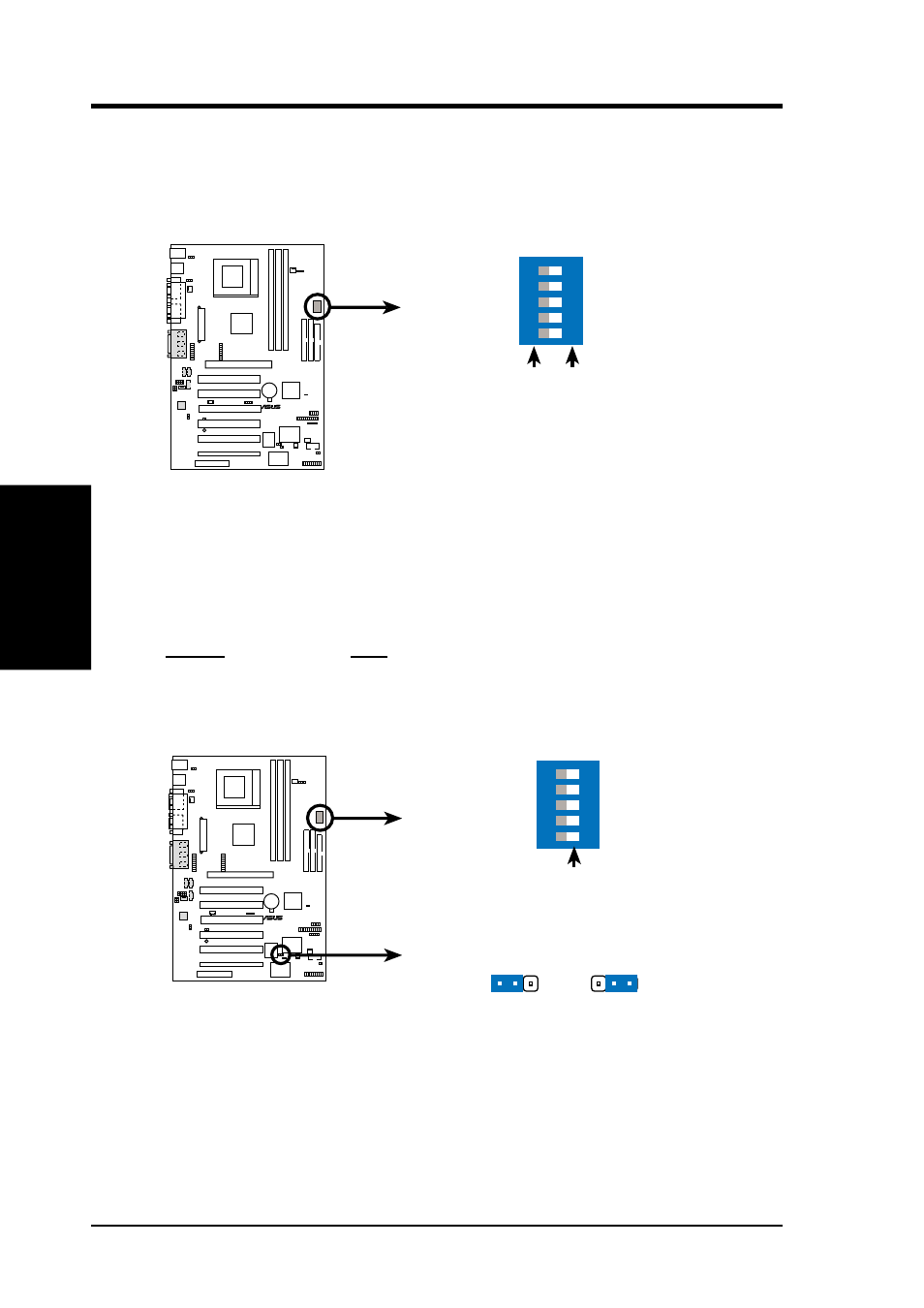

CUSL2K DIP Switches
DSW
ON OFF
ON 12345
CUSL2K
®
1) JumperFree™ Mode (JEN)
This jumper allows you to enable or disable the JumperFree™ mode. The
JumperFree™ mode allows processor settings to be made through the BIOS
setup (see 4.4 Advanced Menu).
NOTE: In JumperFree™ mode, all dip switches must be set to OFF.
Setting
JEN
Disable (Jumper) [1-2]
Enable (JumperFree) [2-3] (default)
CUSL2K JumperFree™ Mode Setting
JEN
DSW
ON 12345
OFF
Disable
1 2
Enable(default)
2 3
CUSL2K
®
