Intel IM-Q35 Series User Manual

Page 25

IM-Q35 Mainboard

2-6

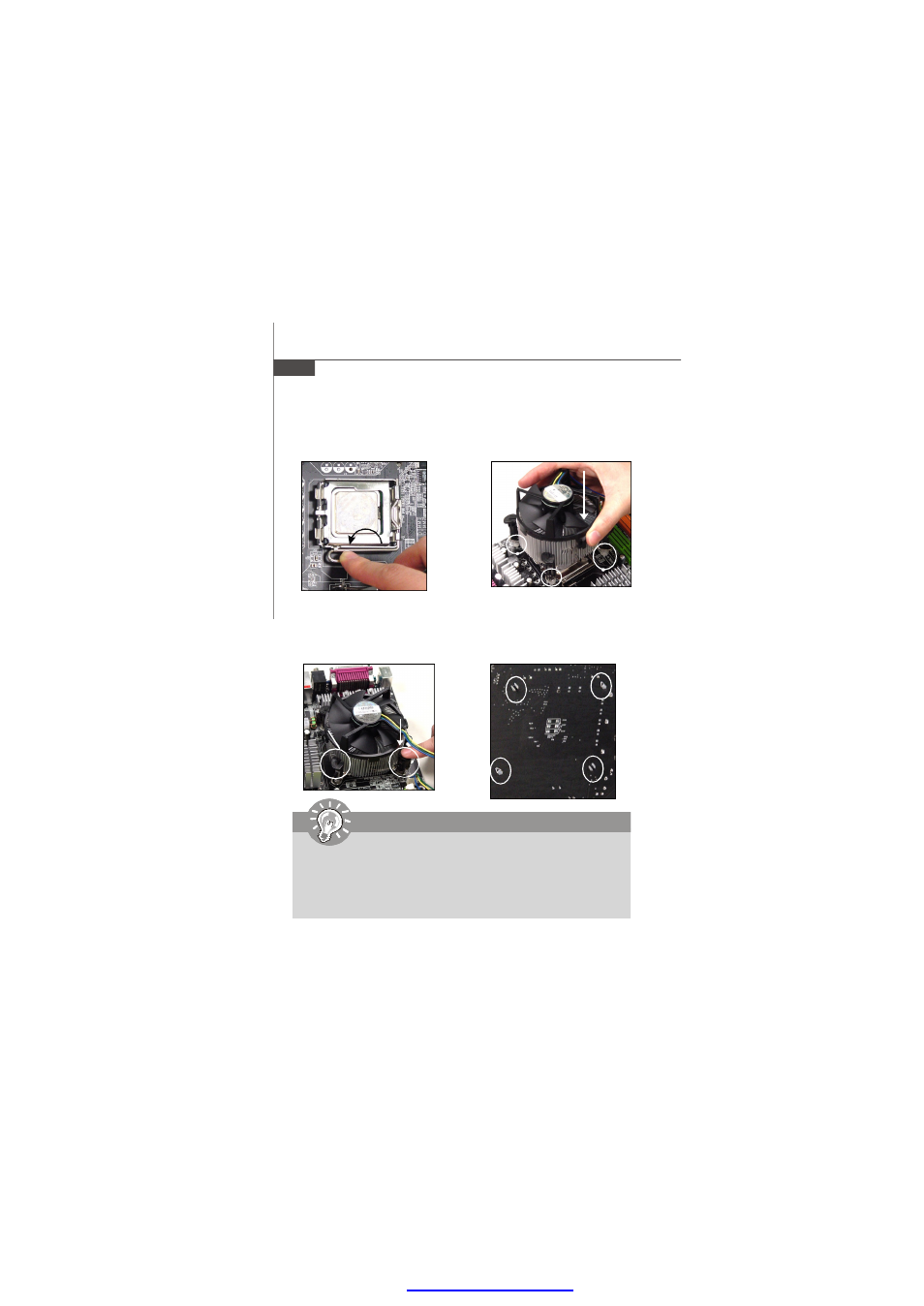

10. Align the holes on the mainboard

with the heatsink. Push down the
cool er u n t il its f ou r cl ip s g et
wedg ed in t o t h e h ol es of t h e
mainboard.

12. Turn over the mainboard to con-

firm that the clip-ends are cor-
rectly inserted.

11. Press the four hooks down to fas-

ten the cooler. Then rotate the lock-
ing switch (refer to the correct di-
rection marked on it) to lock the
hooks.

9. Press down the load lever lightly

onto the load plate, and then se-
cure the lever with the hook under
retention tab.

locking

switch

Important

1. Read the CPU status in BIOS (Chapter 3).
2. Whenever CPU is not installed, always protect your CPU socket pin with the

plastic cap covered (shown in Figure 1) to avoid damaging.

3. Mainboard photos shown in this section are for demonstration of the CPU/

cooler installation only. The appearance of your mainboard may vary depend-
ing on the model you purchase.
