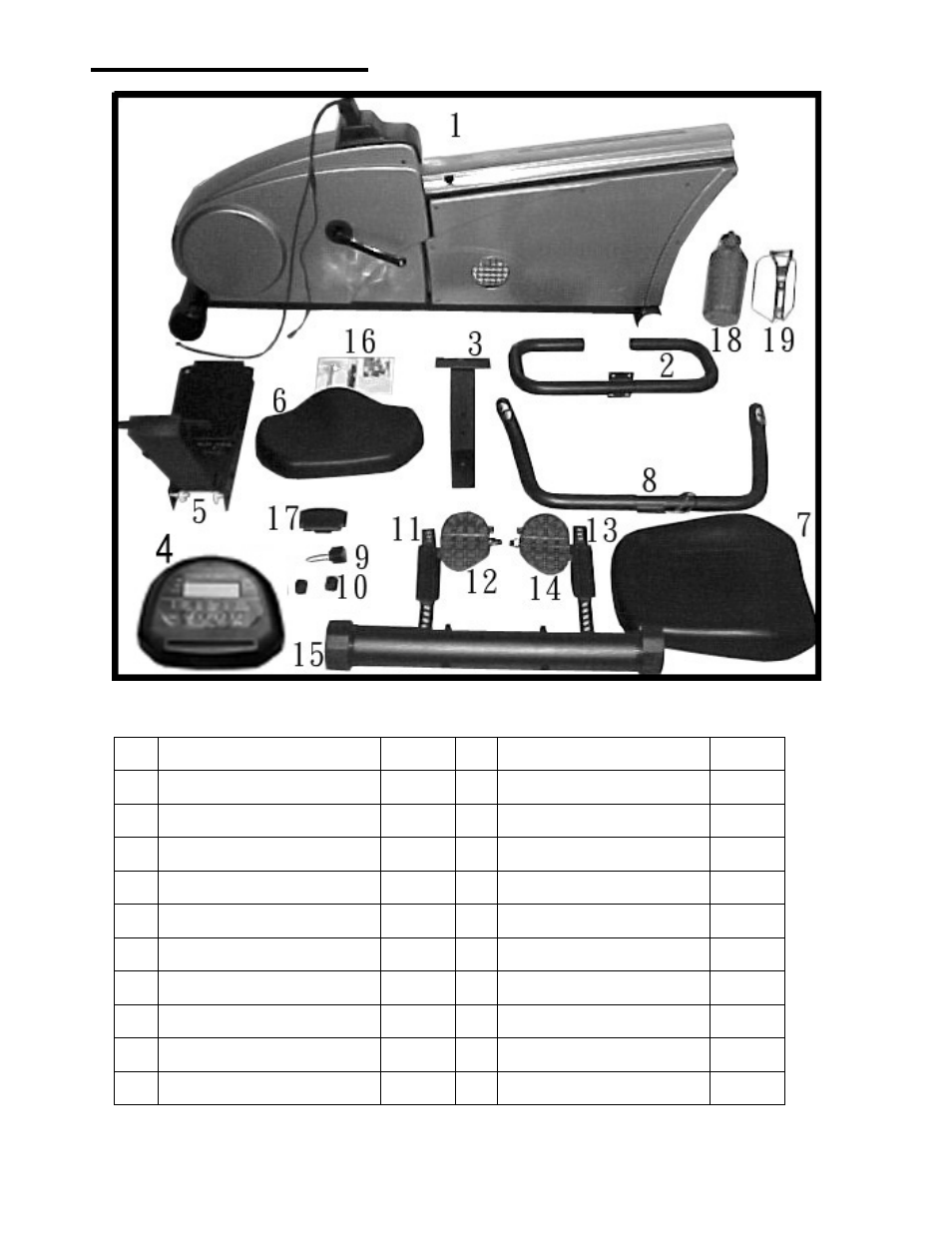

PARTS DRAWING:
NO. DESCRIPTION Q'TY NO. DESCRIPTION Q'TY
1 MAIN FRAME 1 PCE 11 PEDAL STRAP (L) 1 PCE
2 FRONT HANDLE 1 PCE 12 PEDAL (L) 1 PCE
3 COMPUTER POST 1 PCE 13 PEDAL STRAP (R) 1 PCE
4 COMPUTER 1 PCE 14 PEDAL (R) 1 PCE
5 SEAT BRACKET 1 PCE 15 REAR STABILIZER 1 PCE
6 SEAT 1 PCE 16 SCREW PACK 1 PCE
7 BACKREST BOARD 1 PCE 17 END CAP FOR TRACK 1 PCE
8 REAR HANDLE 1 PCE 18 WATER BOTTLE 1 PCE
9 SEAT ADJUST KNOB 1 PCE 19 BOTTLE FRAME 1 PCE
10 RUBBER CUSHION 2 PCE
