ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Adjustable Wrench and Allen Wrench
NOTE: It is strongly recommended this machine to be assembled by two or more
people to avoid possible injury.

STEP 1 (See Diagram 1)

A.) Attach a Floor Stabilizer (#6) and a Lower Pivot Bracket (#35) to the Base Frame

(#3). Secure it with two M12 x 4” Carriage Bolts (#28),

∅

1” Washers (#29), and

M12 Aircraft Nuts (#30).

B.) Insert the Lower Pulley Bracket (#14) into the hole on the Lower Pivot Bracket

(#35). Secure it with one M10 x 1” Allen Bolt (#38) and

∅

1 ½” Washer (#39).

C.) Repeat the procedure A and B above to install the other side.

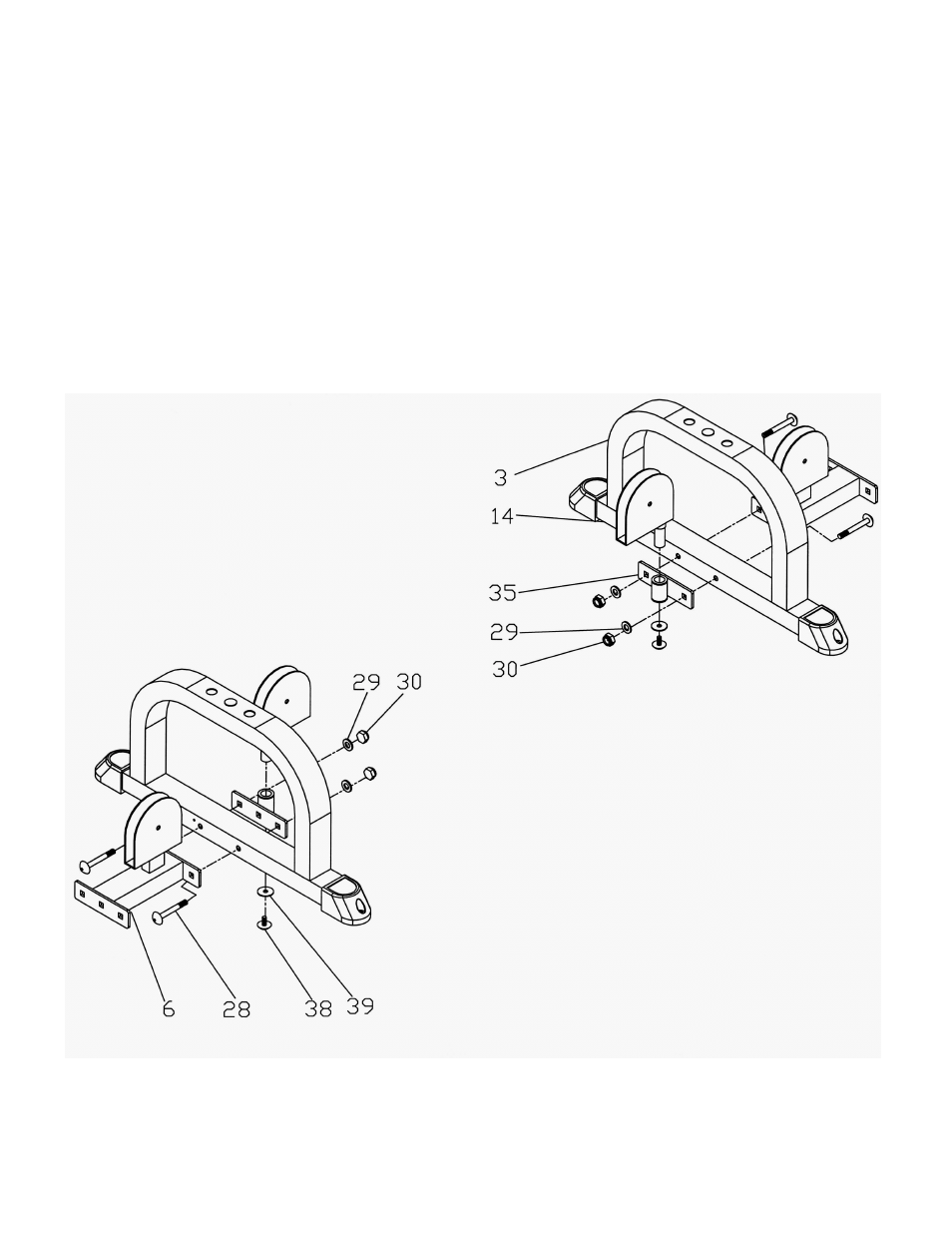

DIAGRAM 1
