SECTION 3—OPERATING INSTRUCTIONS
Part No 1118387 27 Side Entry Whirlpool Tub

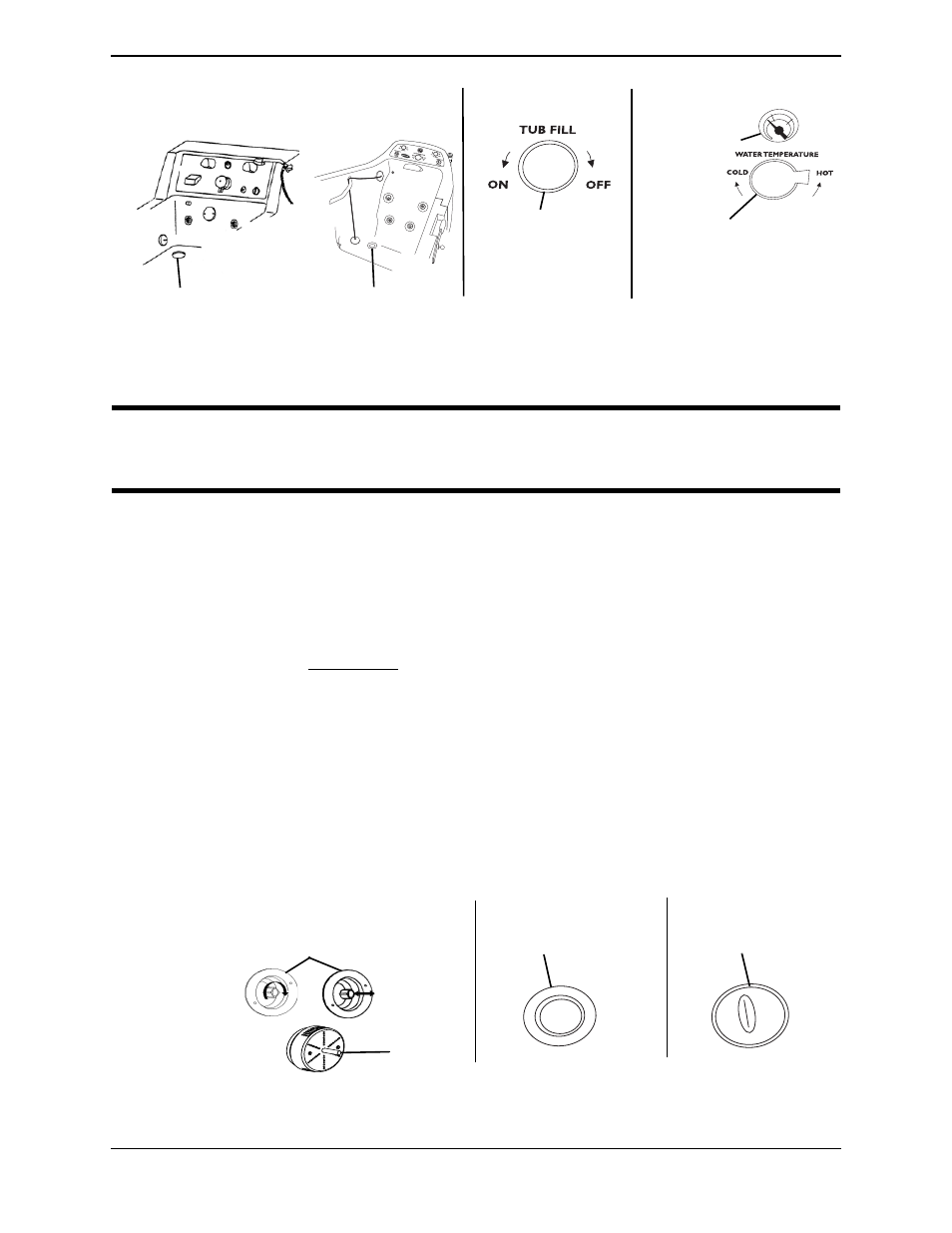

FIGURE 3.5 Filling Tub
Hydromassage
CAUTION
Before starting hydromassage, water level MUST be completely above whirlpool
jets otherwise severe damage to the motor/pump will result.
NOTE: For this procedure, refer to FIGURE 3.6 on page 27.
1. Close the aerator by rotating the aerator valve two turns clockwise.
2. Open the whirlpool inlet by pushing the inlet plug in.
3. Open all whirlpool jets by pulling the center of the whirlpool jet out or rotating the
center counterclockwise (Detail “A”).
4. Fill the tub. Refer to Filling Tub on page 26.
5. After water level covers whirlpool jets and after bathing the resident, add Invacare
Defoamer to bath water. Refer to Defoamer bottle for directions.
6. Push whirlpool On/Off (Detail “B”) button to start whirlpool jets.
7. Adjust the whirlpool aerator for desired water agitation by rotating the whirlpool
aerator (Detail “C”).
8. After use, push whirlpool On/Off button (Detail “B”) to stop whirlpool jets.
9. Drain tub.
FIGURE 3.6 Hydromassage
Water
Temperature
Valve
Flow Water
Thermometer
Tub Fill On/Off Valve
DETAIL “C” DETAIL “B” DETAIL “A”
Drain
Models 3600 and 3600XL Model 3650
Drain
Whirlpool On/Off Button Whirlpool Aerator
DETAIL “B” DETAIL “C”
Push In To
Close
Plug
Turn Clockwise
to Close
Whirlpool Jet
DETAIL “A”
