SECTION 2—PARTS AND INSTALLATION
21
9. Check for leaks in supply or drain lines and check operation of tub. Refer to Operating
NOTE: Check local codes regarding maximum water temperature allowed at hot water outlets for
facility type.
FIGURE 2.5 Plumbing Installation
Post Installation Checklist
Before putting the tub into service, check the following:
Water lines have been purged of any foreign matter.
Both hot and cold water lines are properly connected to tub.
Dedicated 115V 15AMP AC power line is properly wired to unit.
Power line is protected by a 15AMP GFCI.
All water lines are checked for leaks.
ICCI skin care and cleaning products have been ordered. To place your order, call 800‐
668‐2337.
ICCI representative has been called at 800‐668‐2337 to arrange for an In‐Service on tub.

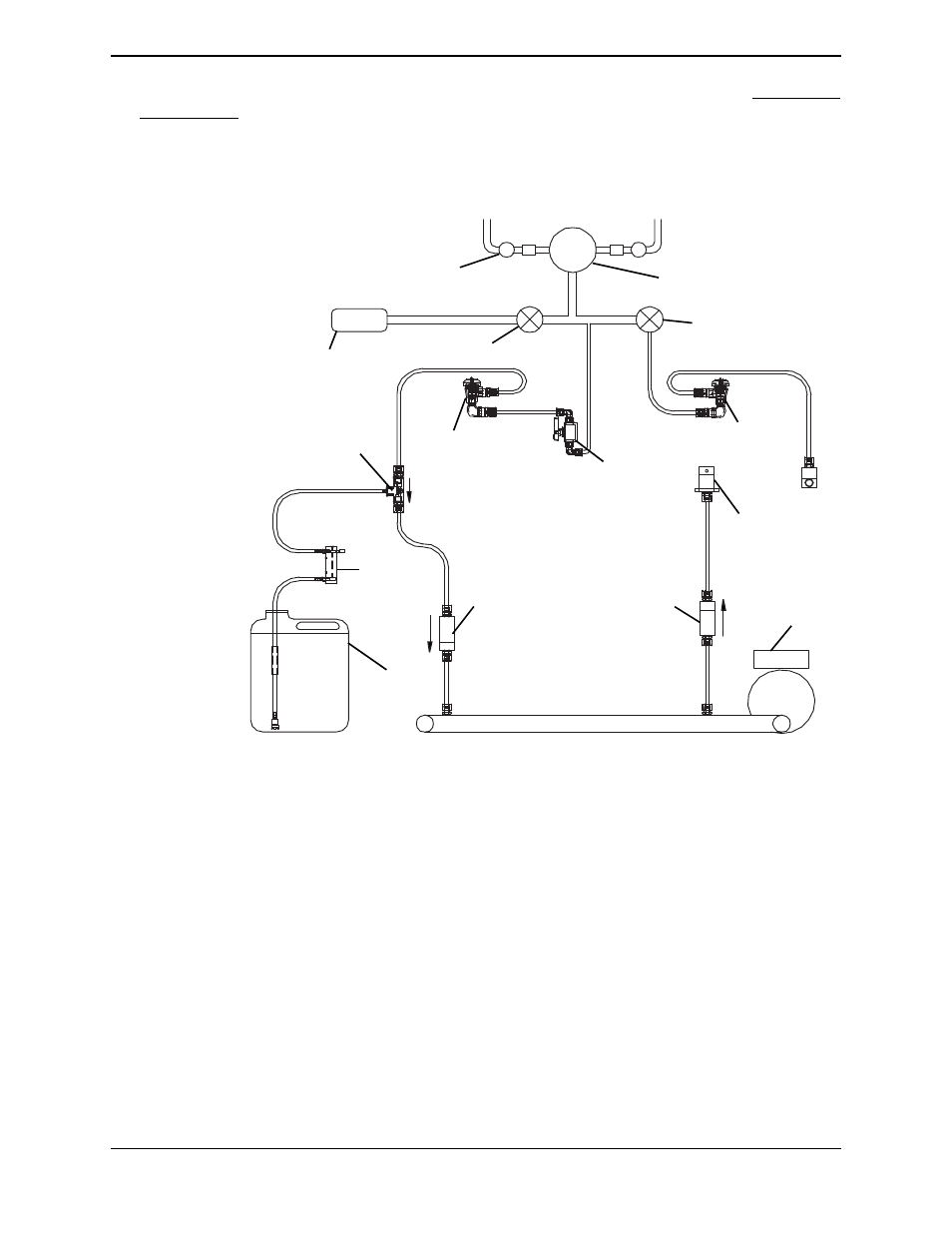

DETAIL “A” - PLUMBING SCHEMATIC
HOT
COLD
Tub Fill Valve
Backflow
Preventor
Flowmeter
Invacare
Disinfectant
Check
Valve
Pump
Suction Return Line
Burp
Fitting
Shower Control
Valve
RADA Mixing Valve
Optional
Pressure
Regulator
Back Flow
Preventer
Disinfectant
Injector
In House Water Service
2-Way
Selector
Valve
Tub Spout
Check
Valve
(Nearest
Tub)
