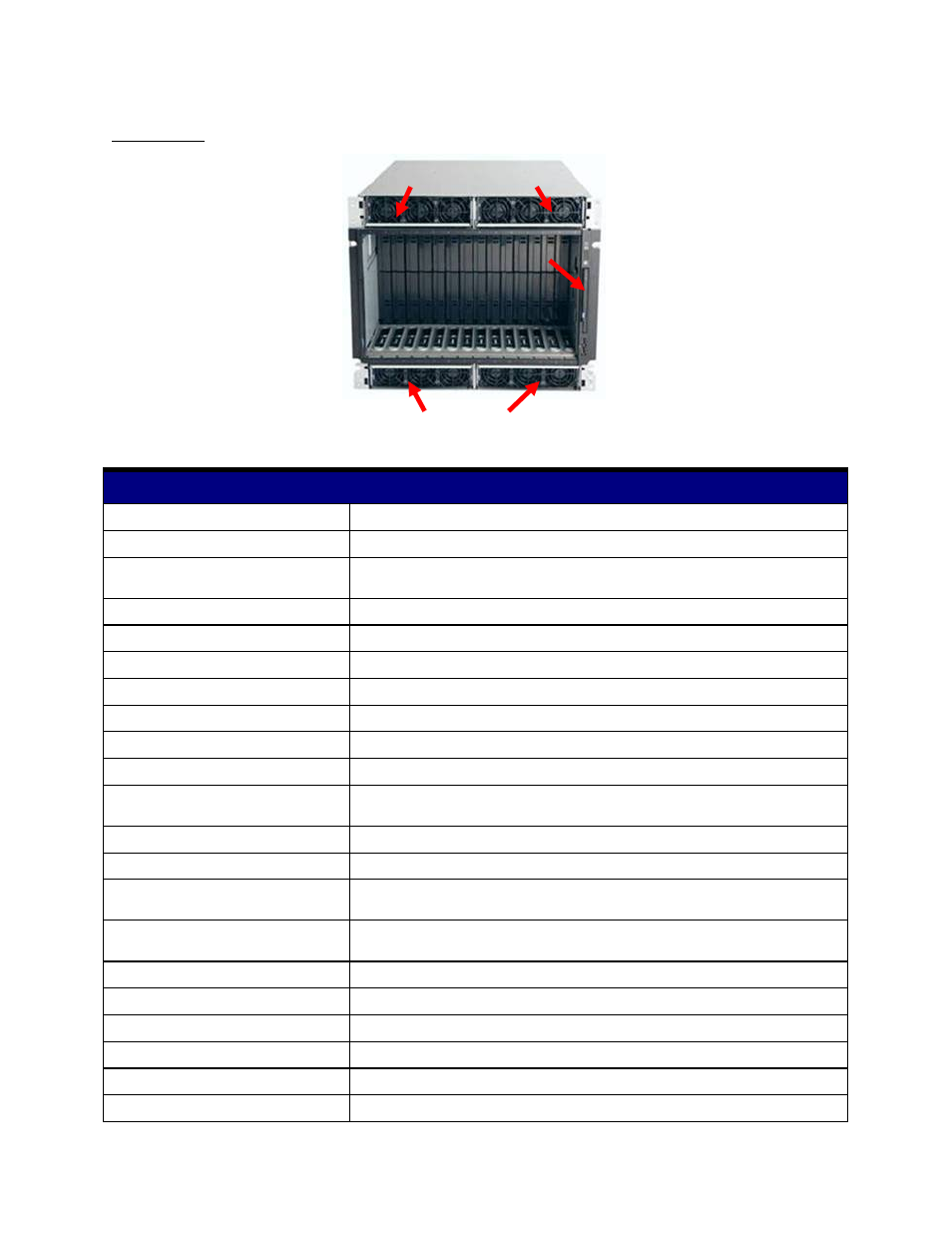

Interior View
Media
Tray
Empty blade slots
Power Supply
Modules (showing
fan 3-pack)
Power Supply Modules
(showing fan 3-pack)
BladeCenter H Chassis Specifications
Machine type 8852-4XU
Rack form factor 9U
# of DVD/CD drives standard
1 (in Media Tray;
can choose to have either a read-only or multi-burner or no DVD/CD drive at all)
# of diskette drives standard None
Internal tape drives supported None (SAN-attached)
External disk drive support NAS/SAN-attach
# of video ports 1 (on Management Module)
# of blade slots / orientation 14 x 30mm or 7 x 60mm (or combinations thereof) / vertical
Fabric bandwidth 10Gbps
Total # of switch/bridge module slots 10 (includes the following)
# of dedicated Gb Ethernet switch
module bays
2 hot-swap/redundant
# of dedicated bridge module bays 2 hot-swap/redundant
# of switch / bridge module bays 2 hot-swap/redundant (either 2 switch or 2 bridge modules)
# of dedicated high-speed switch
module bays
4 hot-swap/redundant
# of communication / I/O modules
standard
None
# of management modules (std / max) 1 / 2 hot-swap/redundant
Systems management controller Advanced Management Module
# of RS485 ports 1 (on Management Module)
# of serial breakout ports 1
# of parallel ports None (USB-attach)
# of mouse ports None (USB-attach)
