Intel LGA775 MB865 User Manual
Page 18
INSTALLATIONS

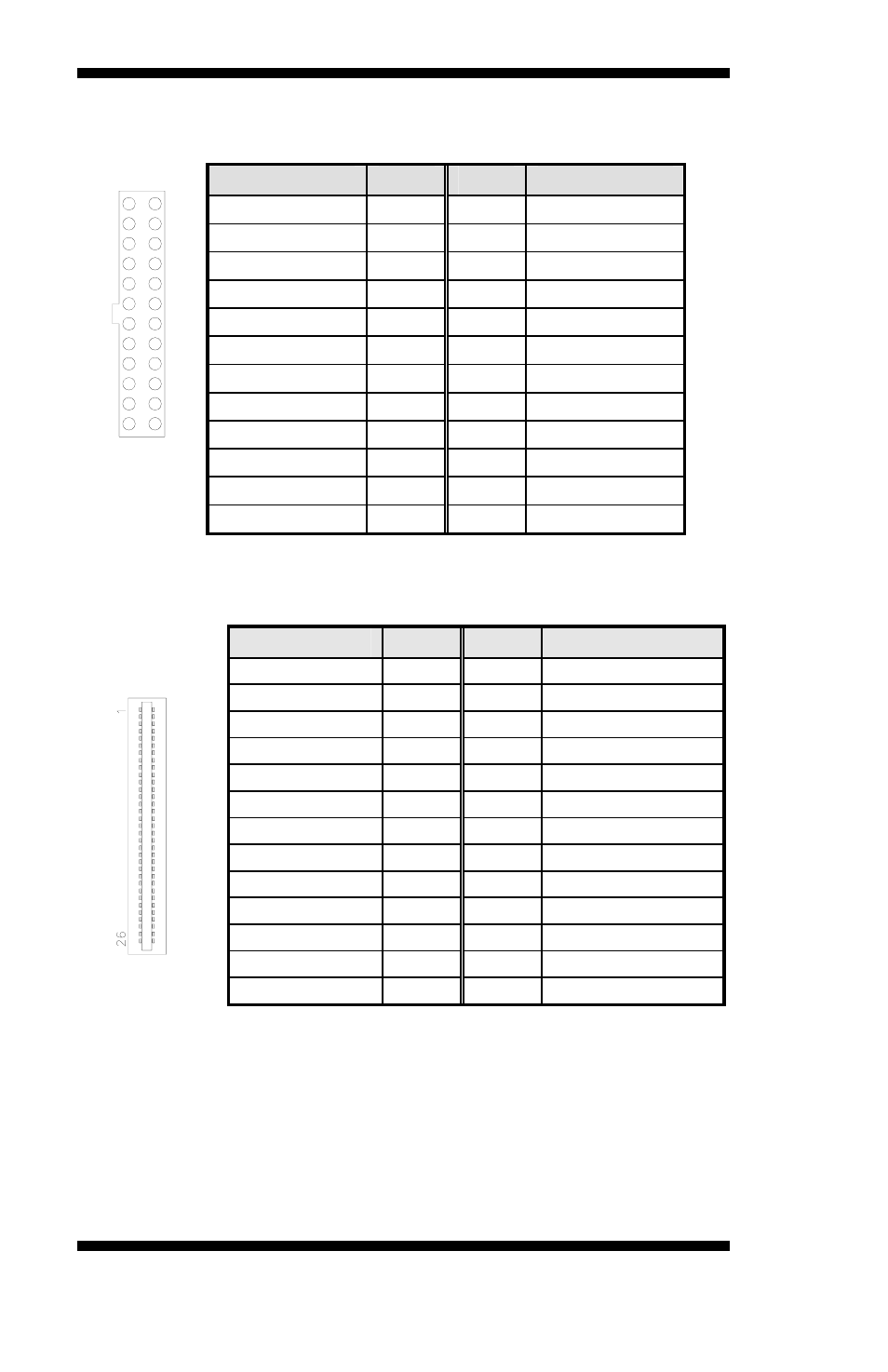

ATX1: ATX Power Supply Connector
Signal Name
Pin #
Pin #
Signal Name
3.3V 13
1 3.3V
-12V 14
2 3.3V
Ground 15
3 Ground
PS-ON 16
4 +5V
Ground 17
5 Ground
Ground 18
6 +5V
Ground 19
7 Ground
-5V 20
8
Power
good
+5V 21
9 5VSB
+5V 22
10 +12V
+5V 23
11 +12V
Ground 24
12 +3.3V
FDD1: Floppy Drive Connector
FDD1is a slim 26-pin connector and will support up to 1.44MB FDD.
Signal Name
Pin #
Pin #
Signal Name
VCC 1
2 INDEX
VCC 3
4
DRV_SEL
VCC 5
6 DSK_CH
NC 7
8 NC
NC 9
10
MOTOR
NC 11
12 DIR
NC 13
14 STEP
GND 15
16 WDATA
GND 17
18 WGATE
GND 19
20 TRACK
NC 21
22 WPROT
GND 23
24 RDATA
GND 25
26 SIDE
14
MB865 User’s Manual
