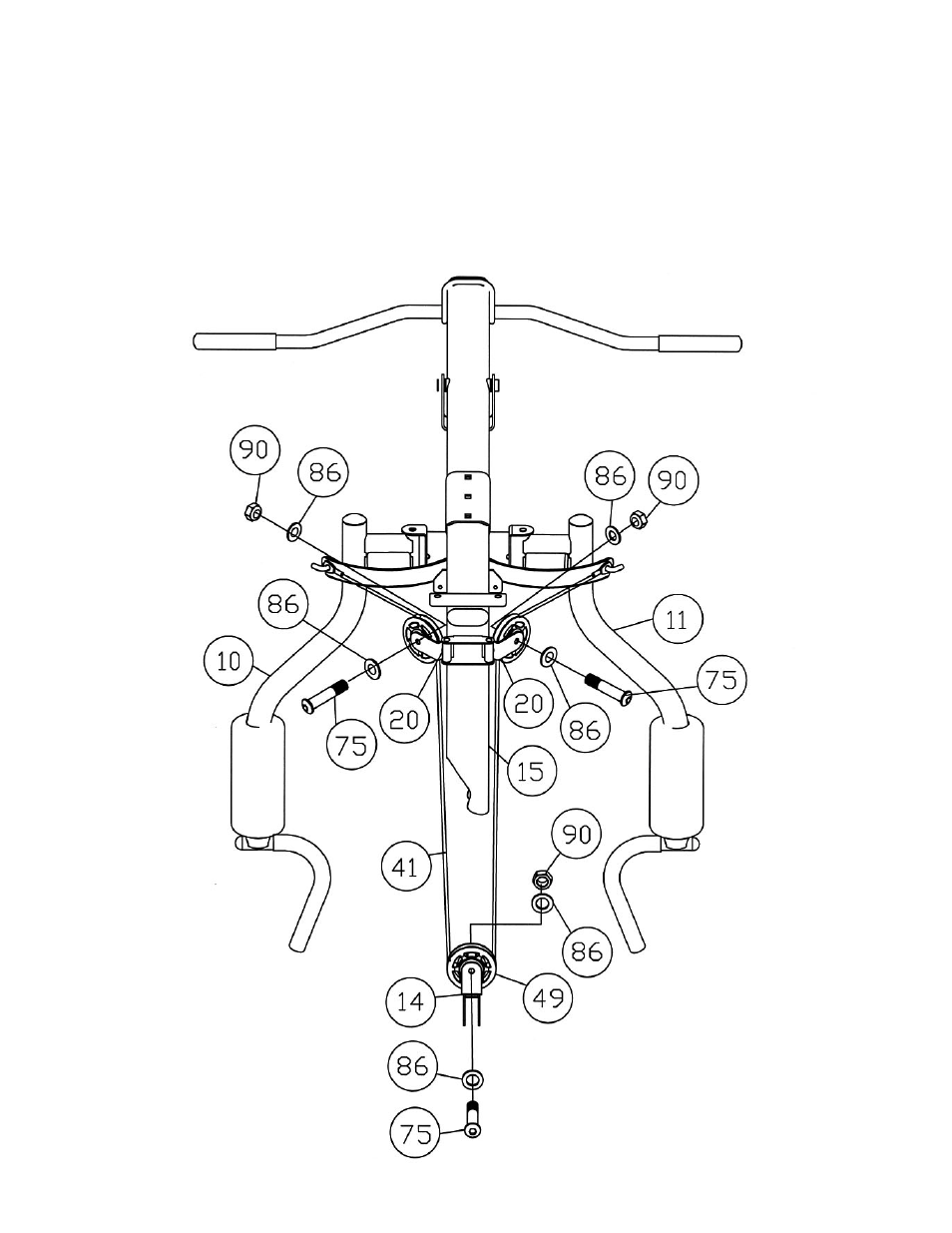

STEP 5 (See Diagram 5 & Cable Loop Diagram)
A.) Attach one end of the 119” Butterfly Cable (#41) to the hook on the Right Butterfly (#11).
B.) Draw the Cable to the right open bracket on the back of Upper Vertical Frame (#15).
C.) Attach a Pulley to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#75), two Ø ¾”
Washers (#86), and one M10 Aircraft Nut (#90).
D.) Draw the Cable over the Pulley then downward. Attach the Cable to a Crossed Double
Floating Pulley Bracket (#14). Install a Pulley. Let the Bracket hanging for now.
E.) Pull the Cable around the Pulley then upward to the left open bracket on the back of Upper
Vertical Frame. Install a Pulley.
F.) Draw the Cable to the Left Butterfly (#10). Attach the end to the hook on the Left Butterfly.
