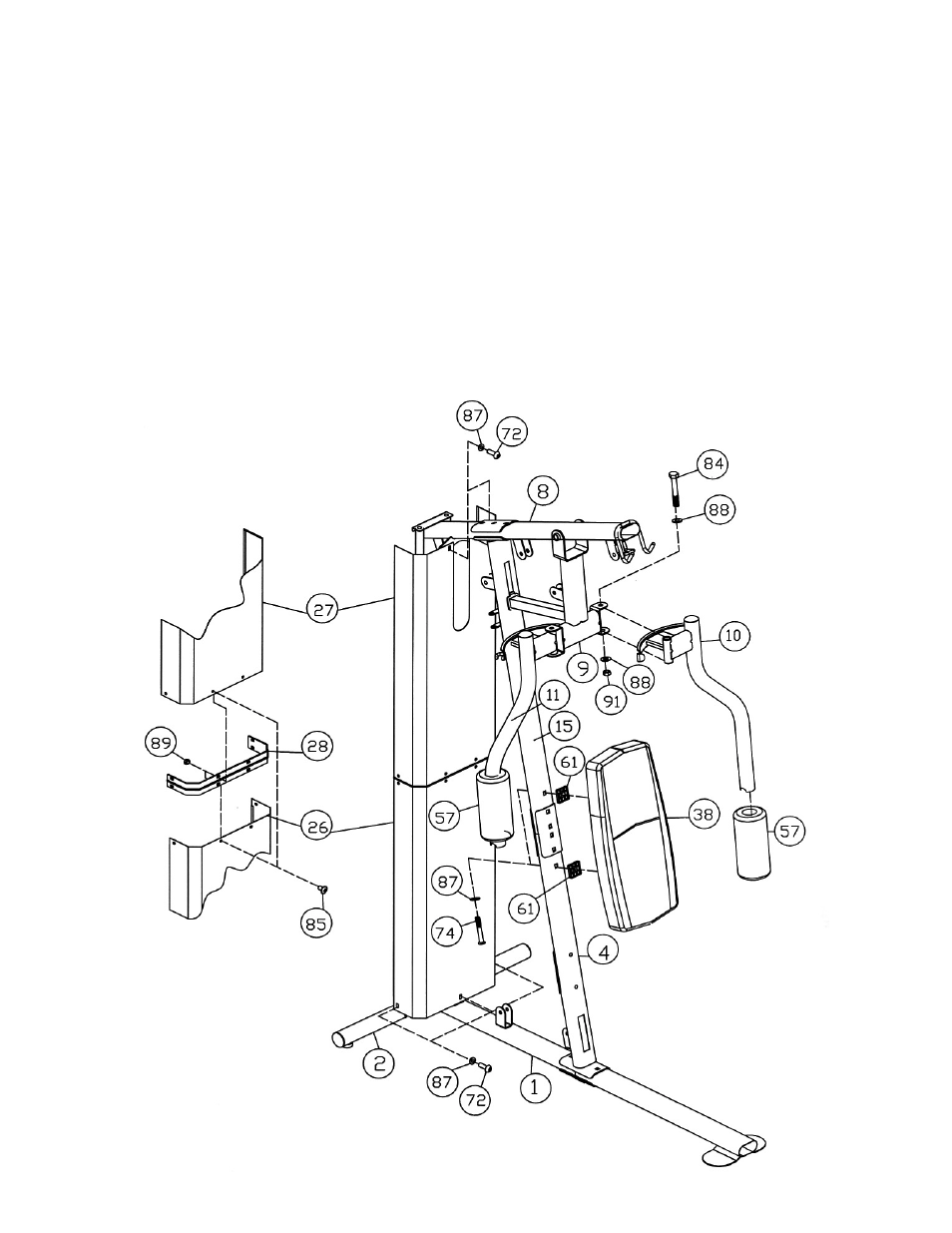

STEP 3 (See Diagram 3)
A.) Attach the Left Butterfly (#10) to the open bracket on the Front Press Base (#9). Secure it
with one M12 x 4” Hex Bolt (#84), two Ø 1” Washers (#88), and one M12 Aircraft Nut (#91).
B.) Slide a Butterfly Foam Roll (#57) onto the Left Butterfly arm.
C.) Repeat Steps A&B above to install the Right Butterfly (#11).
D.) Attach two 1 ¾” Spacers (#61) to the Lower & Upper Vertical Frames (#4 & #15). Attach the
Backrest Board (#38) to the Spacers. Secure it with two M8 x 2 ½” Allen Bolts (#74) and Ø
5/8” Washers (#87).
E.) Attach the Lower Weight Stack Cover (#26) to the Main Base Frame (#1) and Rear Base
Frame (#2). Secure it with three M8 x 5/8” Allen Bolts (#72) and Ø 5/8” Washers (#87).
F.) Attach the Cover Connecter (#28) to the Lower Weight Stack Cover. Secure it with four M6 x
3/8” Philips Screws (#85) and M6 Regular Nuts (#89).
G.) Attach the Upper Weight Stack Cover (#27) to the Upper Frame (#8). Secure it with two M8 x
5/8” Allen Bolts (#72) and Ø 5/8” Washers (#87).
H.) Secure the Upper Weight Stack Cover to the Cover Connecter with four M6x 3/8” Philips
Screws (#85) and M6 Regular Nuts (#89).
