A.) Attach the front holes on the Backrest Supports (#7) to the pivot on the Main Seat Support

(#3). Place the other end of the Backrest Supports (#7) on the Backrest Adjustment Bar (#6).
Place the Backrest Board (#8) onto the Backrest Supports (#7). Secure it with four M6 x 1
3/8” Hex Bolts (#29) and

∅

½” Washers (#35).

B.) Place the Seat Pad (#9) onto the Main Seat Support (#3). Secure it with four M6 x 1 3/8” Hex

Bolts (#29) and

∅

½” Washers (#35).

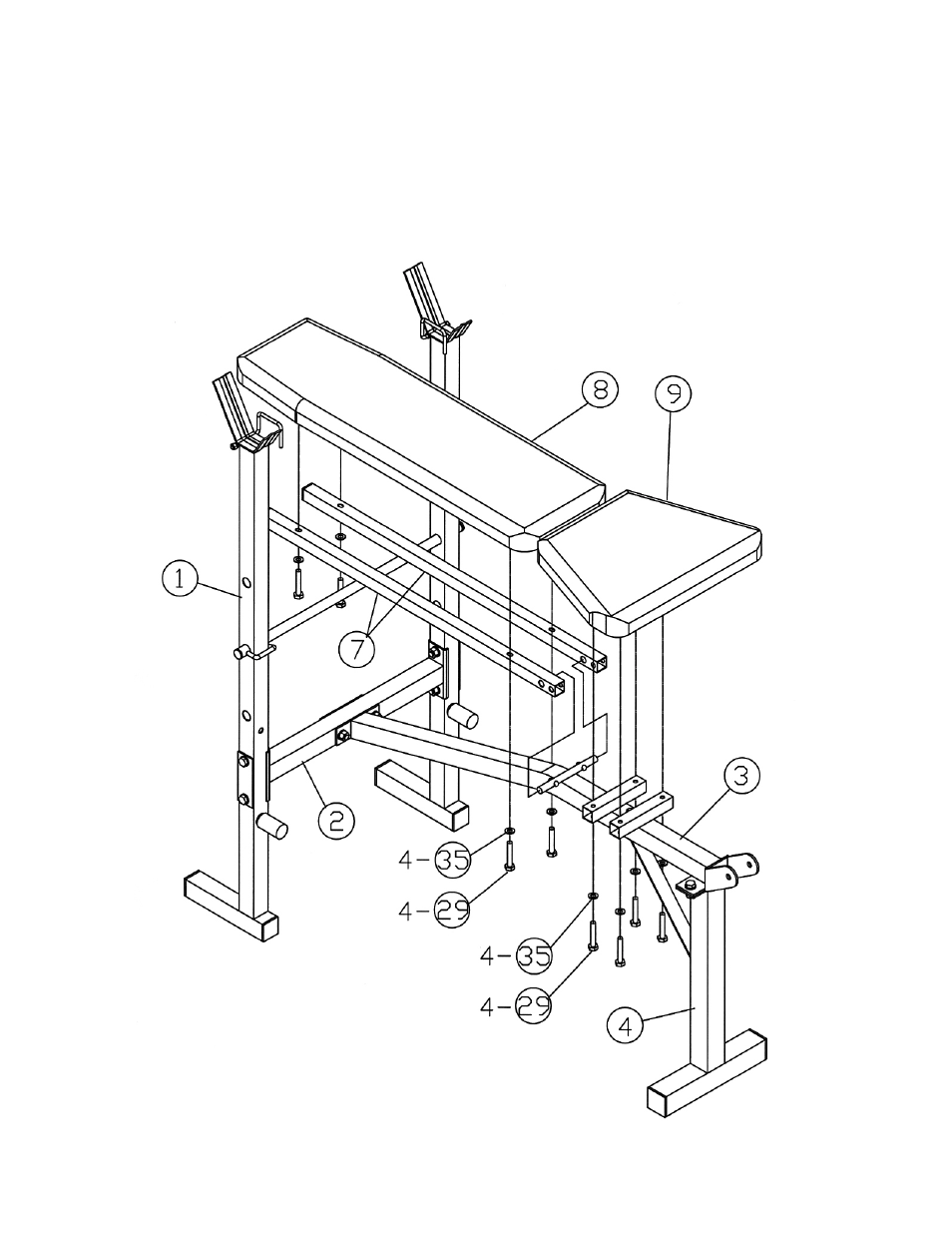

DIAGRAM 3

6


STEP 4 (See Diagram 4)
