A.) Attach the rear of the Main Seat Support (#3) to the Cross Brace (#2). Secure it with one
Bracket (#13), two M10 x 2 3/8” Hex Bolts (#25), four
∅
¾” Washers (#33), and two M10
Aircraft Nuts (#30).
B.) Attach the front of the Main Seat Support (#3) to the Front Support (#4). Secure them with
two M10 x 1” Hex Bolts (#26), four
∅
¾” Washers (#33), and two M10 Aircraft Nuts (#30).
C.) Attach one end of the Diagonal Support (#5) to the Main Seat Support (#3) and secure it with
one M8 x 2 1/8” Hex Bolt (#27), two
∅
5/8” Washers (#34), and one M8 Aircraft Nut (#31).
Attach the other end of Diagonal Support (#5) to the Front Support (#4). Secure it with one
M8 x 5/8” Hex Bolt (#28) and
∅
5/8” Washer (#34).

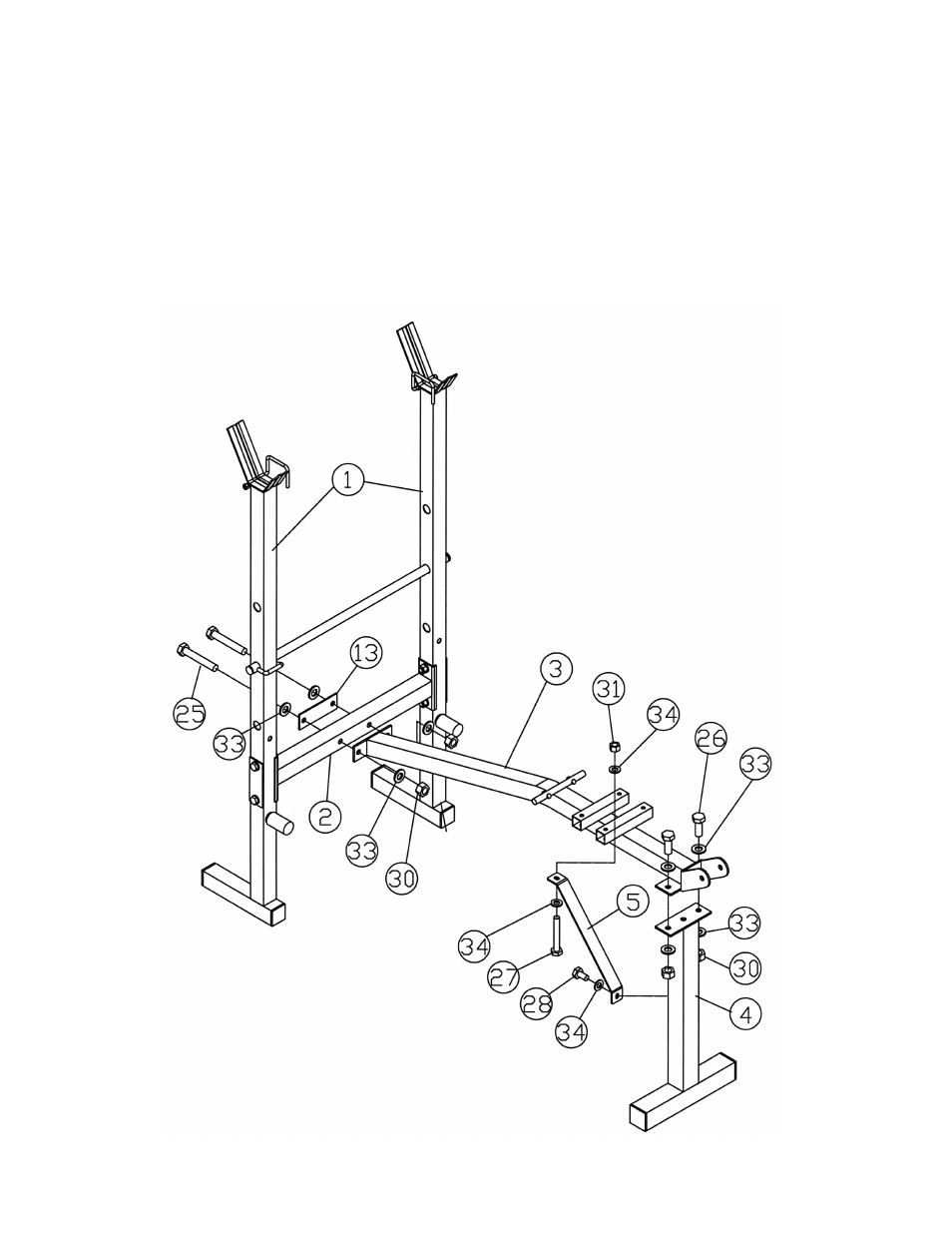

DIAGRAM 2
5
STEP 3 (See Diagram 3)
