INSTALLATIONS
20 IB868 User’s Manual

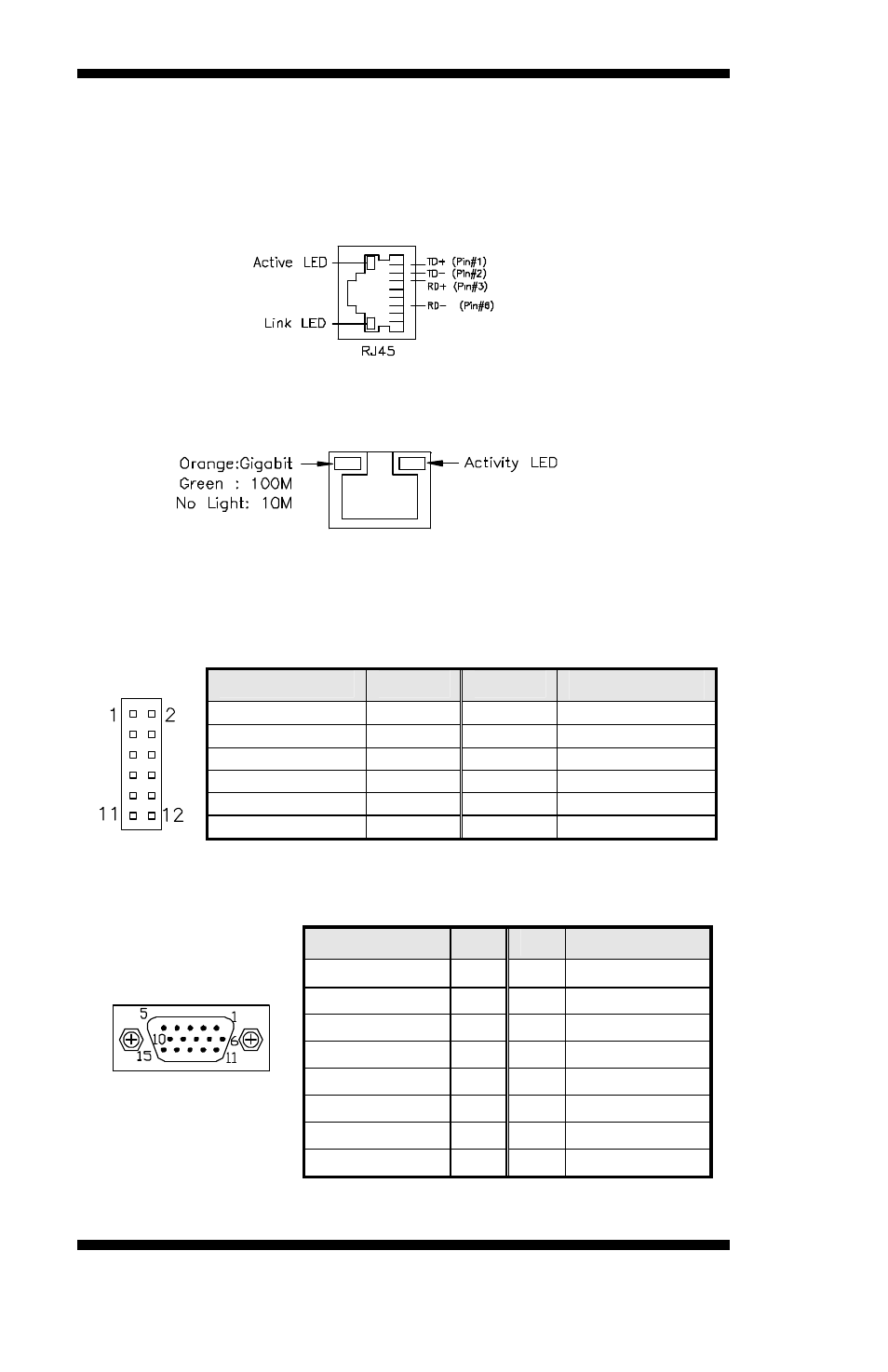

J20: Primary RJ45 Connector
J20 is the primary RJ-45 connector based on the chipset integrated LAN.
The figure below shows the pin out assignments of the connector and its
corresponding input jack.
J21: Gigabit LAN RJ45 Connector
J21 is the Gigabit LAN RJ45 connector.
J22: External Audio Connector
J22 is a 12-pin header that is used to connect to the optional audio cable
that integrates jacks for Line In, Line Out and Mic.
Signal Name Pin # Pin # Signal Name
LINEOUT_R 1 2 LINEOUT_L
Ground 3 4 Ground
LINEIN_R 5 6 LINEIN L
Ground 7 8 Ground
Mic-In 9 10 VREF-Mic
Ground 11 12 Protect pin
J23: VGA CRT Connector
The pin assignments of the J23 VGA CRT connector are as follows:
Signal Name Pin Pin Signal Name
Red 1 2 Green
Blue 3 4 N.C.
GND 5 6 GND
GND 7 8 GND
N.C. 9 10 GND
N.C. 11 12 N.C.
HSYNC 13 14 VSYNC
J23
NC 15
