INSTALLATIONS

10

IB868 User’s Manual

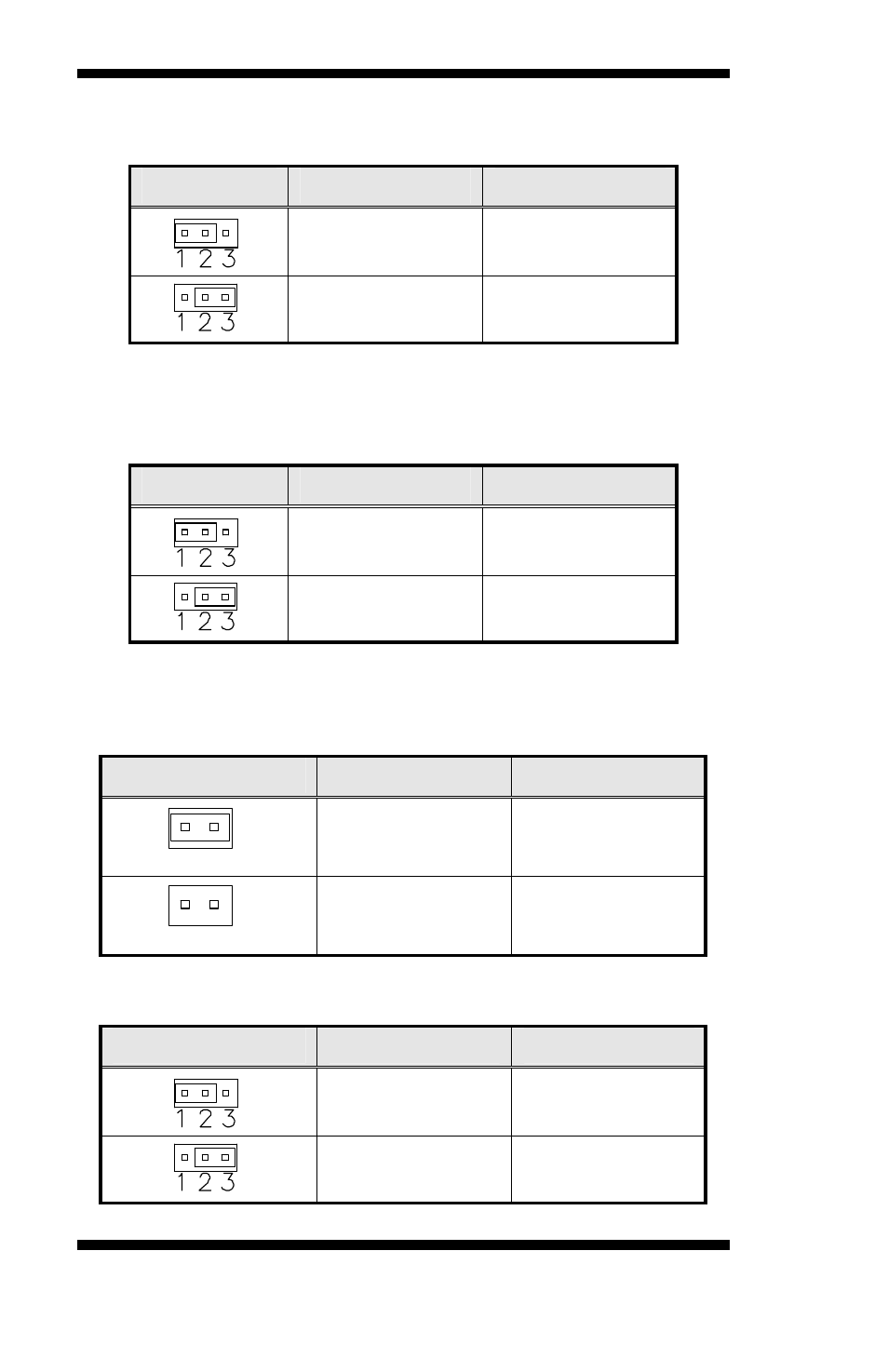

JP2: Panel Voltage Setting

JP2

Setting

Panel Voltage

Pin 1-2

Short/Closed

3.3V

Pin 2-3

Short/Closed

5V


JP3: Clear CMOS Contents
Note that the ATX-power connector should be disconnected from the
CPU card before clearing CMOS.

JP3

Setting

Function

Pin 1-2

Short/Closed

Normal

Pin 2-3

Short/Closed

Clear CMOS








JP5: VGA Signal Select
Use these 2-pin header to select the on board 915GM integrated VGA or
from the backplane PCI-EXPRESS*16 External Graphics card.

JP5

Setting

Function

SHORT

Pin 1-2

Short/Closed

Built-in VGA

OPEN

Pin 1-2

open

External VGA


JP6: CPU Front Side Bus Frequency Setting

JP6

Setting

Function

Pin 1-2

Short/Closed

533 MHz

Pin 2-3

Short/Closed

400 MHz
