Connecting Your Components
—Continued
With
(Remote Interactive), you can use the following special functions:
Auto Power On/Standby
When you start playback on a component connected via
, if the AV receiver is on Standby, it will automatically turn
on and select that component as the input source. Similarly, when the AV receiver is set to Standby, all components
connected via
will also go on Standby. This function will not work with components that are connected to an AC
OUTLET on the AV receiver.
Direct Change
When playback is started on a component connected via
, the AV receiver automatically selects that component as
the input source. If your DVD player is connected to the AV receiver’s multichannel input, you’ll need to press the
[Audio Selector] button repeatedly and select Multich to hear all channels (see page 81), as the Direct Change
function selects the DVD IN L/R jacks.
Remote Control
You can use the AV receiver’s remote controller to control your other
-capable Integra/Onkyo components. You must
enter the appropriate remote control code first (see page 120). And remember to point the remote controller at the AV
receiver and not the other component.
Notes:
• Use only
cables for
connections.
cables
are supplied with Integra/Onkyo players (DVD, CD,
etc.).
• Some components have two
jacks. You can con-
nect either one to the AV receiver. The other jack is
for connecting additional
-capable components.
• Connect only Integra/Onkyo components to
jacks. Connecting other manufacturer’s components
may cause a malfunction.
• Some components may not support all
functions.
Refer to the manuals supplied with your other Inte-
gra/Onkyo components.
• While Zone 2 or Zone 3 is on, the Auto Power
On/Standby and Direct Change
functions do not
work.
• Before connecting the power cord, connect all your speakers and AV components.
• Connect the power cord to the AV receiver’s AC INLET.
• Plug the other end of the power cord into a suitable wall outlet.
• Turning on the AV receiver may cause a momentary power surge that might interfere with other electrical equipment
on the same circuit. If this is a problem, plug the AV receiver into a different branch circuit.

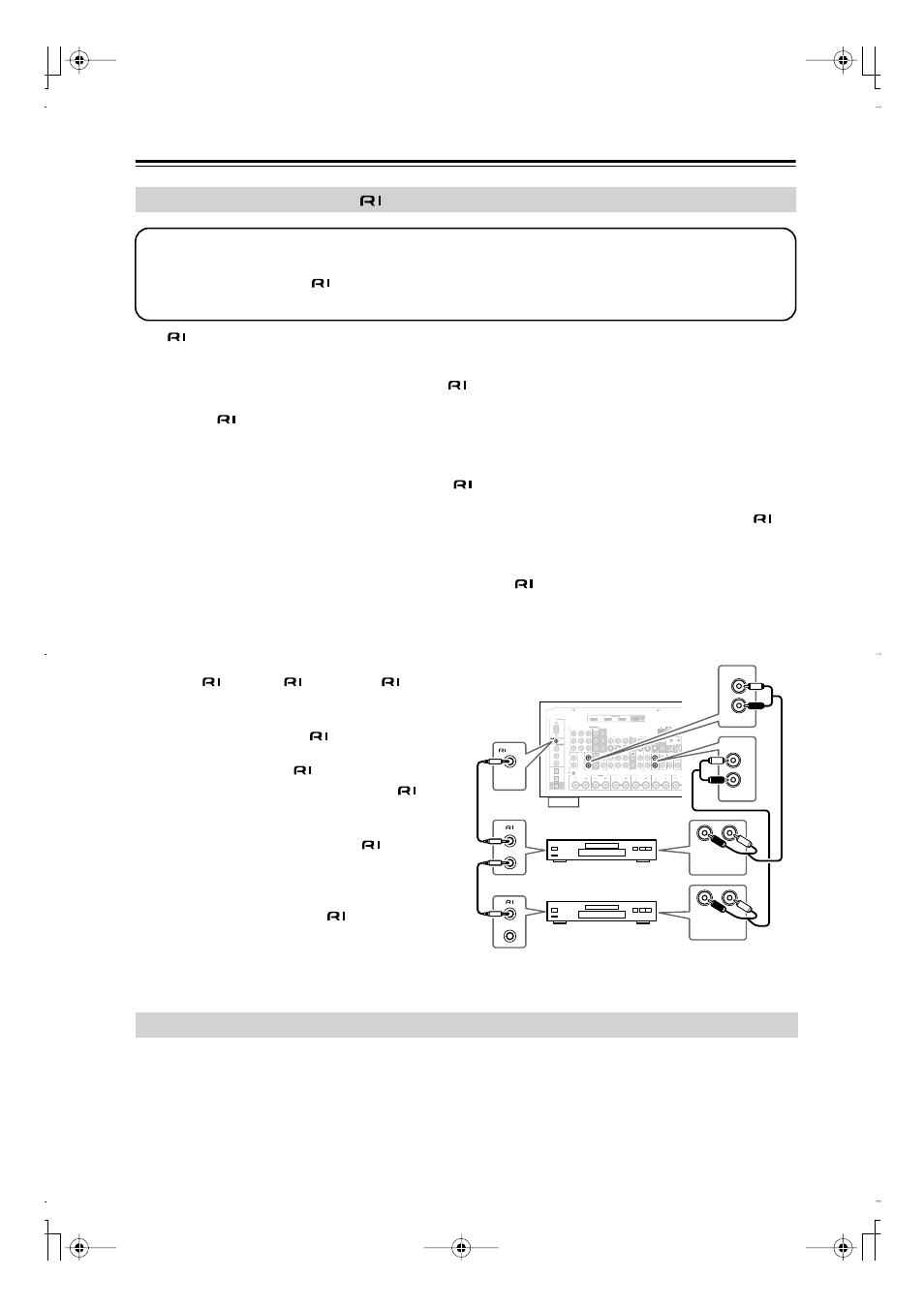

Connecting Integra/Onkyo
Components
Step 1: Make sure that each Integra/Onkyo component is connected to the AV receiver with an analog audio cable
(RCA).
Step 2: Make the necessary
connections (see illustration below).
Step 3: If you’re using an MD, CDR, or RI DOCK component, change the Input Display (see page 49).
RS232
DIGITAL
COAXIAL
OPTICAL
REMOTE
CONTROL
IN 1
IN 1
IN 2
IN
IN
IN
IN
PHONO
ZONE2 R
ZONE2 L
FRONT R
FRONT L
SURR R
CENTER
SURR L
SURR BACK R
CD
TAPE
AUX 1
GAME/TV
GAME/TV CBL/SAT
CBL/SAT
AUX 1
VCR/DVR
VCR/DVR
DVD
DVD
GND
IN 2
IN 3
L
L
V
S
R
R
ASSIGNABLE
(DVD)
(CBL/SAT)
(VCR/DVR)
(GAME/TV)
(CD)
OUT
HDMI
IN 1
IN 2
IN 3
ASSIGNABLE
OUT
COMPONENT VIDEO
ASSIGNABLE
IN 3
Y
CB/PB
CR/PR
IN 2
IN 1(DVD) MONITOR
OUT 1
OUT
IN
IN
OUT
IN
IN
FRONT
FRONT
CENTER
SUBWOOFER
SUBWOOFER
CENTER
SURR
SURR
MULTI CH
PRE OUT
SURR BACK
SURR BACK
AM
ANTENNA
FM75
AC INLET
Bi-AMP
SURR BACK L
Bi-AMP
ETHERNET
MONITOR OUT 2
/ZONE 2 OUT
ZONE 2
ZONE 3
PRE OUT
L
R
SW
A
B
IR
12V TRIGGER OUT
IN
A
B
OUT
V
S
MONITOR
OUT
ZONE 2
OUT
C
L
R
FRONT
DVD
L
R
IN
CD
L
R
REMOTE
CONTROL
ANALOG
AUDIO OUT
L
R
ANALOG
AUDIO OUT
e.g., CD player
e.g., DVD player
Connecting the Power Cord
