12

Getting to Know the AV Receiver

—Continued

A

REMOTE CONTROL

This

(Remote Interactive) jack can be con-

nected to the

jack on another

-capable Inte-

gra/Onkyo component for remote and system
control.

To use

, you must make an analog audio connec-

tion (RCA) between the AV receiver and the other
component, even if they are connected digitally.

B

RS232

This port is for connecting the AV receiver to home
automation equipment and external controllers.

C

PHONO IN

This audio input is for connecting a turntable.

D

COMPONENT VIDEO IN 1, 2, and 3

These RCA component video inputs are for con-
necting components with a component video output,
such as a DVD player, DVD recorder, or DVR (dig-
ital video recorder). They’re assignable, which
means you can assign each one to an input selector
to suit your setup. See “Component Video Input
Setup” on page 48.

E

COMPONENT VIDEO MONITOR OUT 1

This RCA component video output is for connect-
ing a TV or projector with a component video input.

F

COMPONENT VIDEO MONITOR OUT 2/
ZONE 2 OUT

This RCA component video output is for connect-
ing a TV or projector with a component video input
located in your main listening room or Zone 2.

G

HDMI IN 1–3 and OUT

HDMI (High Definition Multimedia Interface) con-
nections carry digital audio and digital video.

The HDMI inputs are for connecting components
with an HDMI output, such as a DVD player, DVD
recorder, or DVR (digital video recorder). They’re
assignable, which means you can assign each one to
an input selector to suit your setup. See “HDMI
Input Setup” on page 46.

The HDMI output is for connecting a TV or projec-
tor with an HDMI input.

H

SIRIUS antenna (on North American model)

This jack is for connecting a SIRIUS digital
antenna, sold separately (see page 70).

I

XM antenna (on North American model)

This jack is for connecting an XM Mini-Tuner and
Home Dock, sold separately (see page 65).

J

MONITOR OUT

The S-Video or composite video jack should be
connected to a video input on your TV or projector.

K

AM ANTENNA

These push terminals are for connecting an AM
antenna.

L

ZONE 2 OUT

This composite video output can be connected to a
video input on a TV in Zone 2.

M

FM ANTENNA

This jack is for connecting an FM antenna.

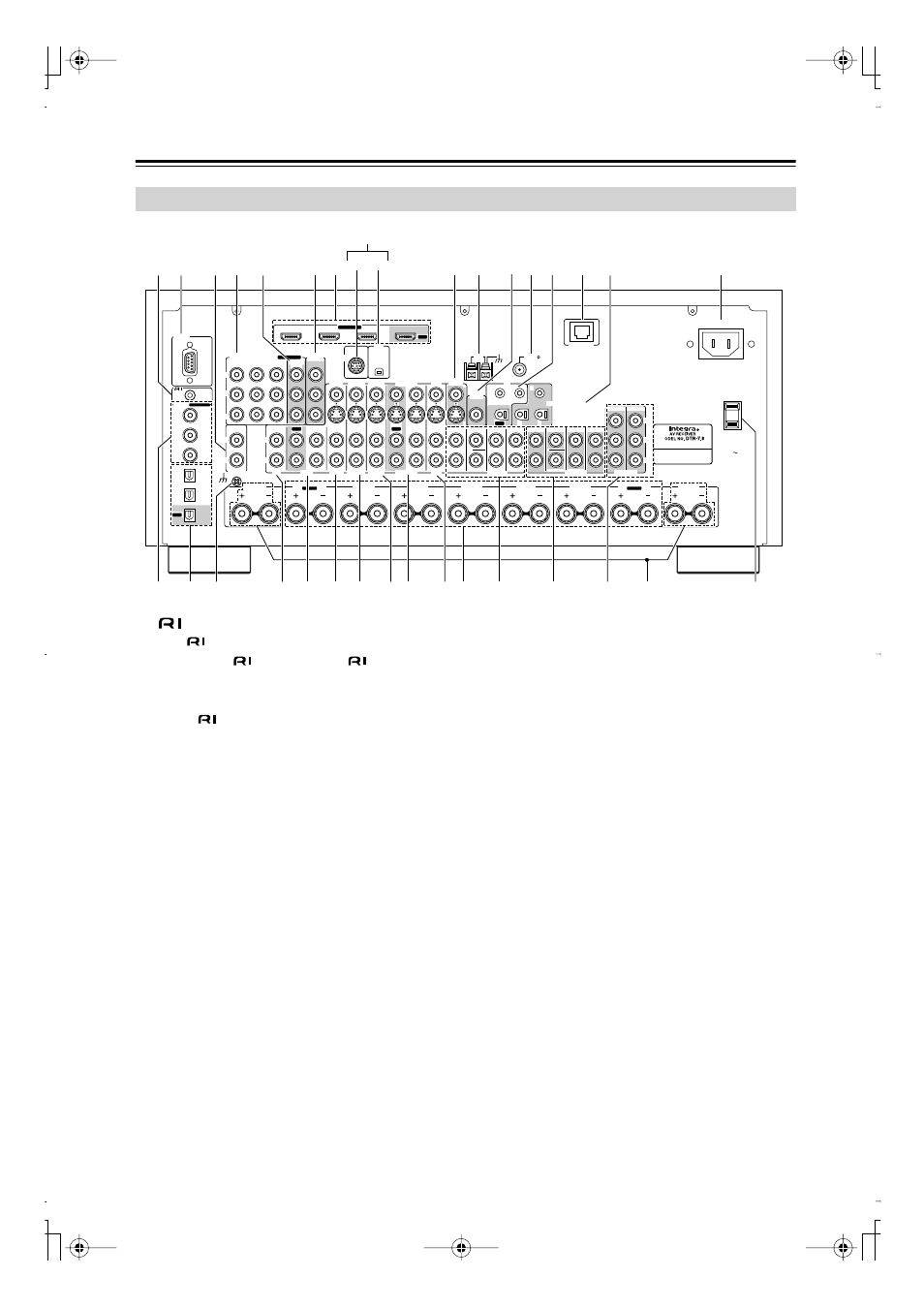

Rear Panel
