Intel Desktop Board DG41MJ Product Guide
42
Connecting to the Back Panel Audio
Connectors
After the audio driver has been installed, the multi-channel audio feature can be
enabled. Figure 19 shows the back panel audio connectors. The default connector
assignments are shown in the figure. Refer to Table 3 on page 15 for audio connector
retasking information.
Item Description
A Line
In
B Line
Out
C Mic
In

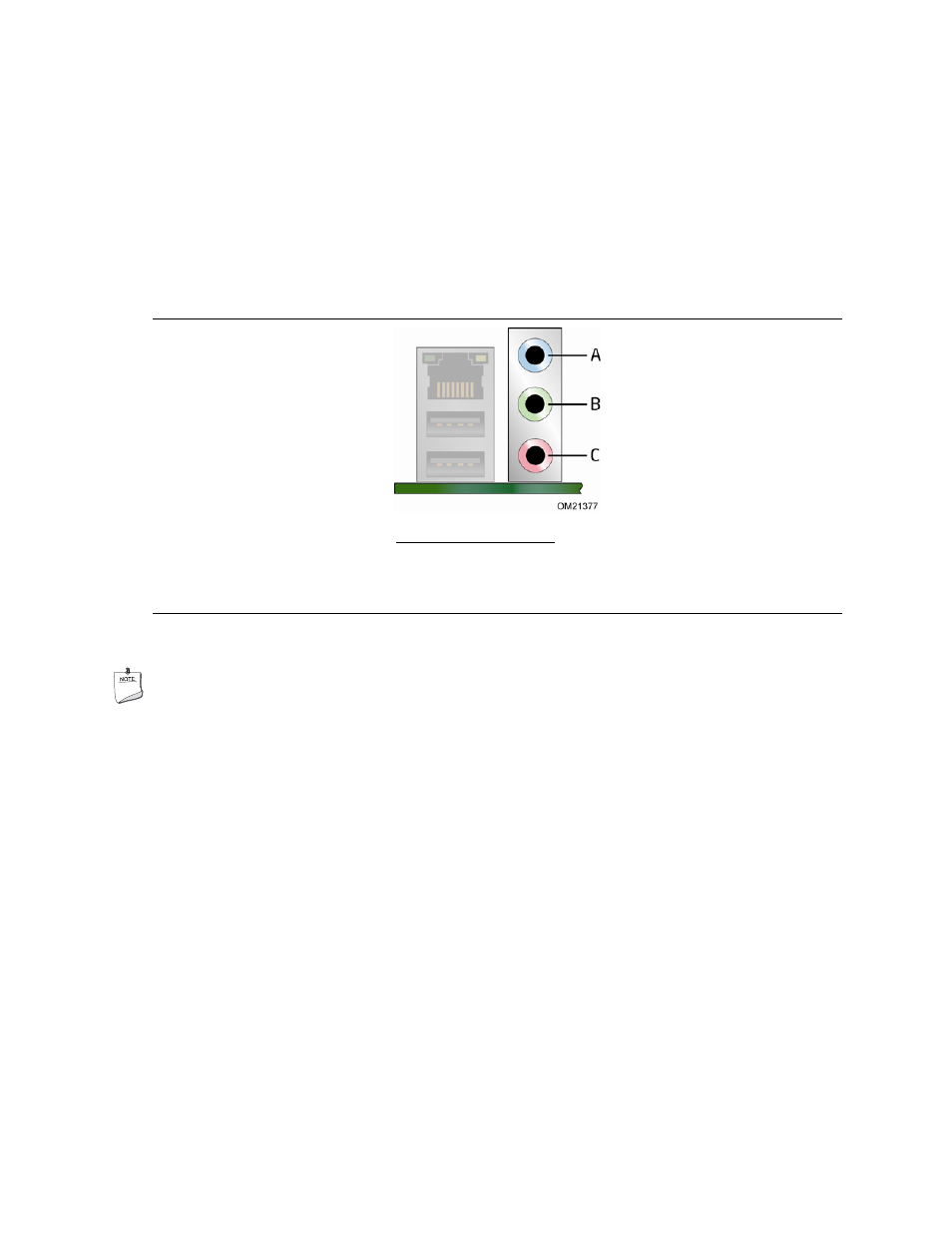

Figure 19. Back Panel Audio Connectors
NOTE
The back panel line out connector is designed to power either headphones or amplified
speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.
