Connecting to the internal headers and connectors – Intel DG41MJ User Manual
Page 38
Intel Desktop Board DG41MJ Product Guide
38
Connecting to the Internal Headers and
Connectors
Before connecting cables to the internal headers and connectors, observe the
precautions in “Before You Begin” on page 23. Figure 18 shows the location of the
internal headers and connectors for Intel Desktop Board DG41MJ.

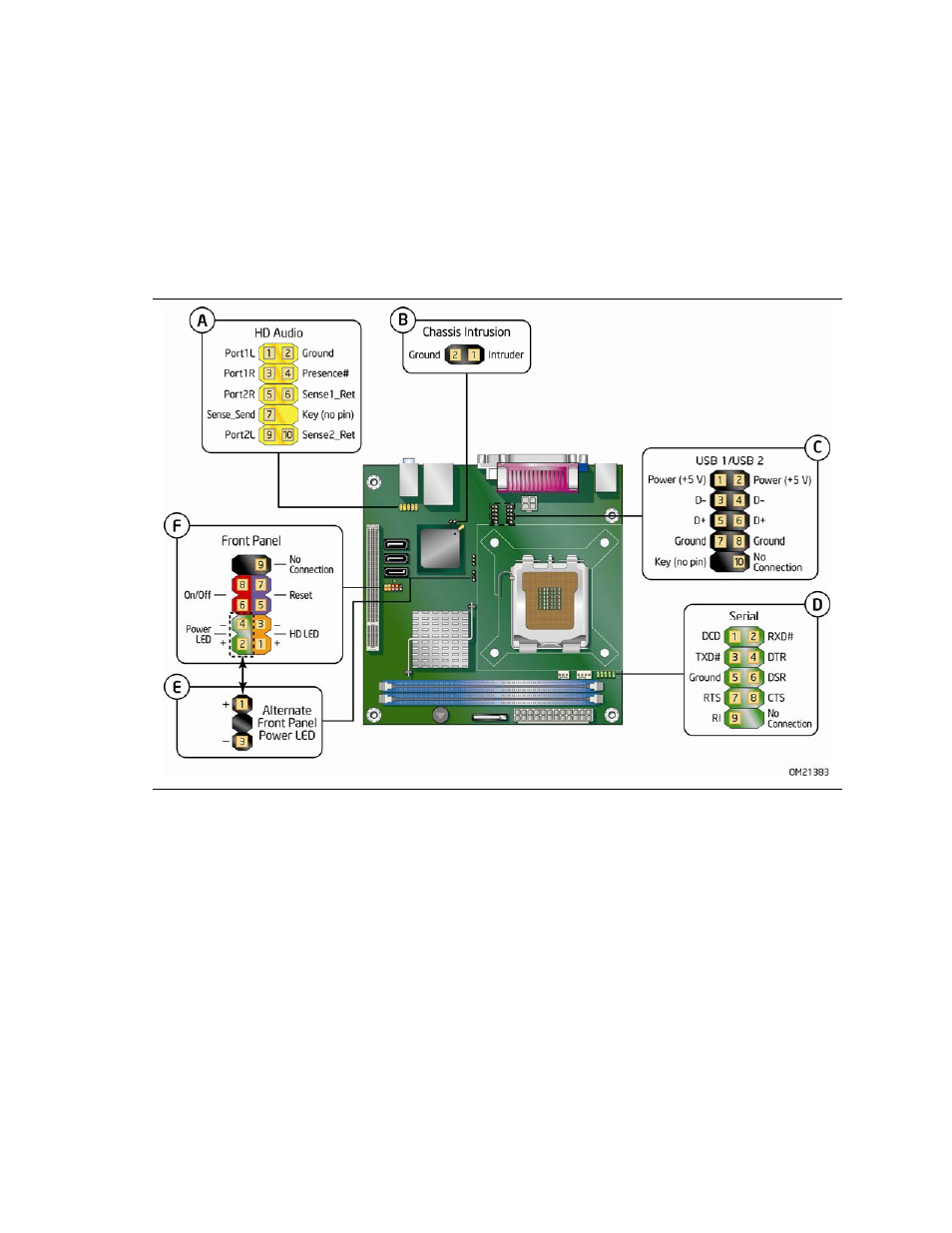

Figure 18. Internal Headers and Connectors
