InFocus SP-CEIL-UNIV - Manual (Page 8)

ISSUED: 10-22-04 SHEET #: 055-9236-5 01-10-06
Visit the InFocus Web Site at www.infocus.com
8 of 11

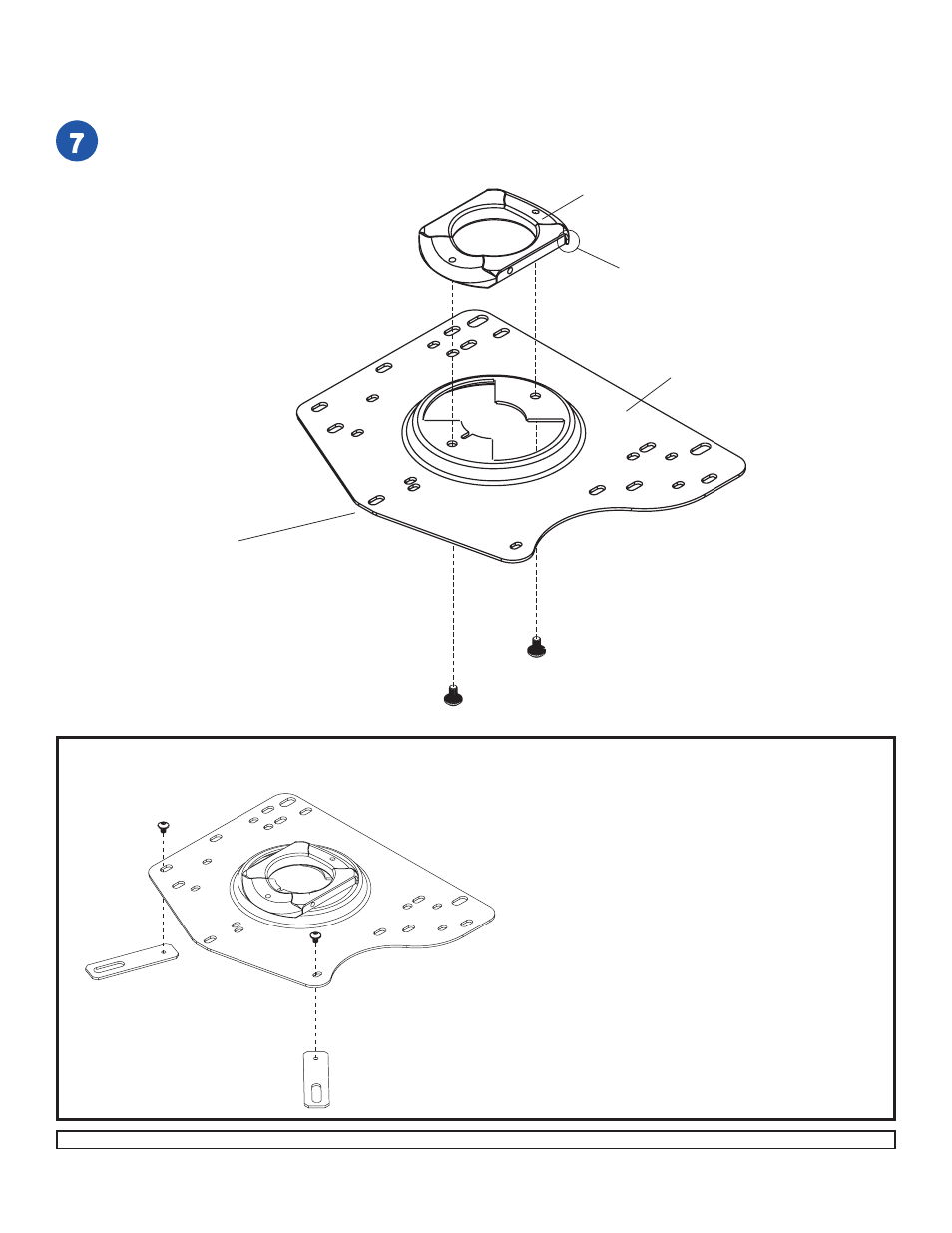

Note: The projector adapter plate and projector you are installing may differ in appearance from the sample illustrated
below.
Align shoulder on connection block opposite of front of projector. Attach adapter plate (R) to connection block from
projector mount assembly (A) using two #10-32 x 3/8" serrated socket pin screws (C) as shown.
CONNECTION BLOCK
ADAPTER PLATE
C
SHOULDER
P
S
R
R
Attach extension brackets (S) to adapter plate (R)
using two M4 x 6 mm serrated socket pin screws (P).
For specific models, see step 8H.
FRONT OF
PROJECTOR
