To adjust yaw (swivel) for wood stud, concrete ceiling, and threaded rod mounting applications: Loosen
wood screws (F), or locknuts for threaded rods, until projector mount can be rotated. Rotate mount to desired
position and retighten screws or locknuts.
To adjust yaw (swivel) for extension column applications: Loosen screw on projector mount assembly (A)
indicated below until projector mount can be rotated. Rotate mount to desired position and retighten screw.
To adjust pitch (forward and backward tilt): Loosen two screws on projector mount assembly (A) indicated
below. Tilt mount to desired position and retighten screws.
To adjust roll (side to side tilt): Loosen two screws on projector mount assembly (A) indicated below. Tilt mount
to desired position and retighten screws.

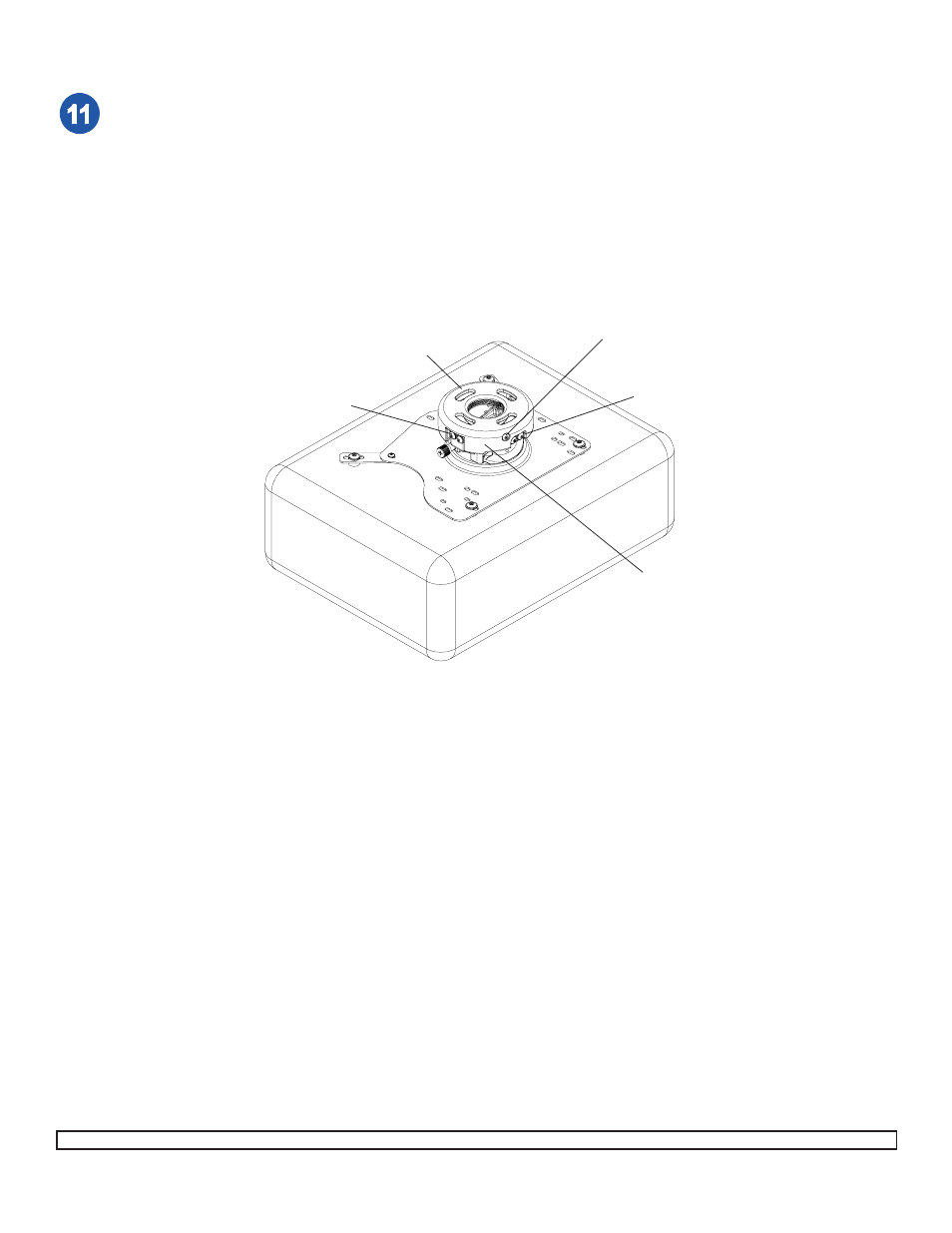

Projector Alignment Projector Alignment Projector Alignment Projector Alignment Projector Alignment
SCREW FOR SWIVEL STOP A
SCREWS FOR ROLL
ADJUSTMENT
SCREWS FOR PITCH
ADJUSTMENT
BACK OF MOUNT
