InFocus SP-CEIL-UNIV - Manual (Page 6)

ISSUED: 10-22-04 SHEET #: 055-9236-5 01-10-06
Visit the InFocus Web Site at www.infocus.com
6 of 11

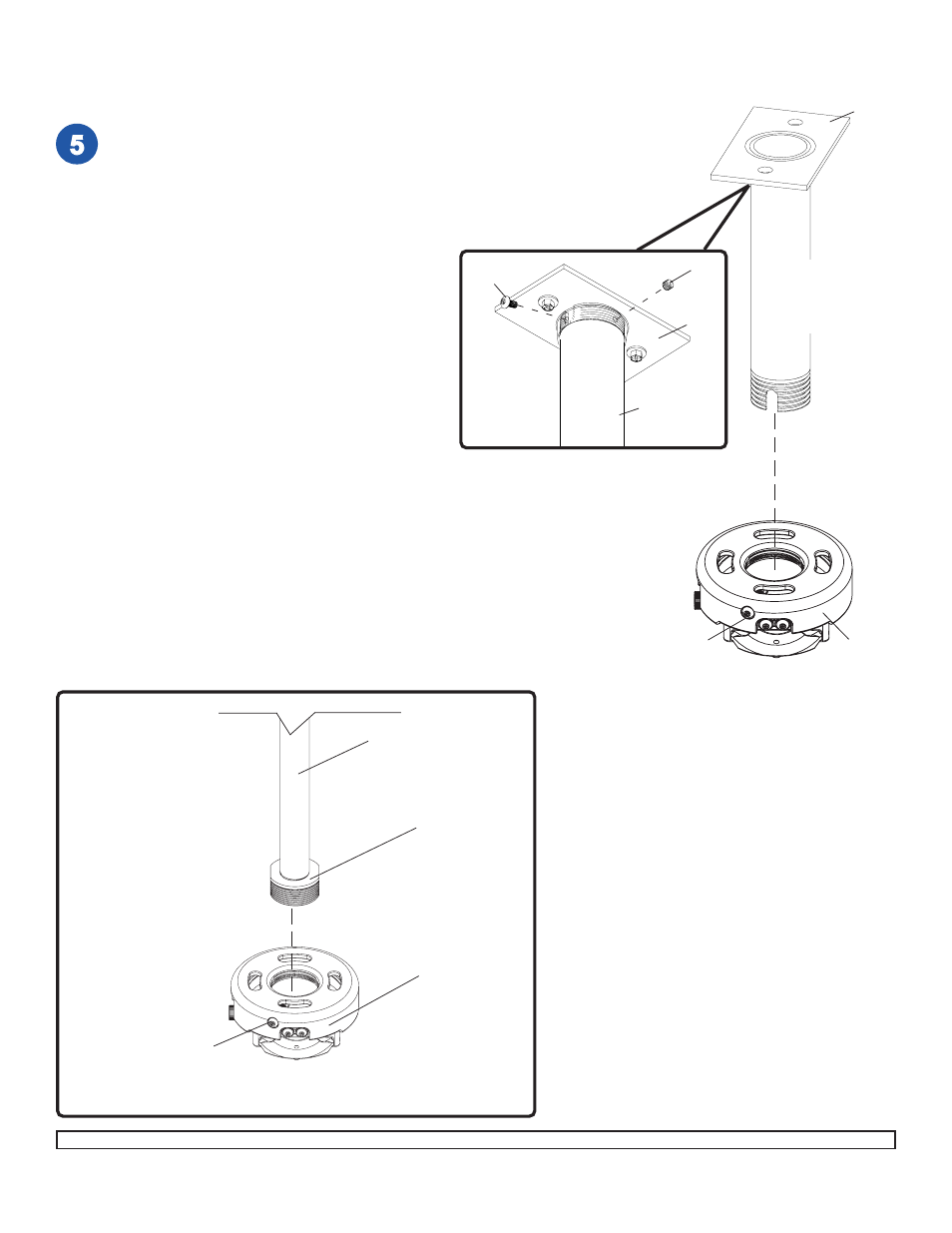

Screw extension column (sold separately) to
ceiling plate (Q). Align the notch with one of the
four holes in the ceiling plate (Q) and secure
extension column with a M5 x 10 mm socket pin
screw (M) using security allen wrench (B). See
detail 3.
Screw projector mount assembly (A) onto the
extension column as shown in detail 4.
Note: For 3/4" extension columns, reducer
ACC 913 will be required as shown in detail 5.
Tighten swivel stop screw against extension
column or reducer using security allen wrench (B).
Note: Swivel stop screw is used to jam against
threads of extension column or reducer to prevent
any excess movement of projector mount
assembly (A). Do not overtighten screw;
overtightening screw will damage threads making
it difficult to separate products.
Note: Slotted set screws (N) are used to jam
against the threads of each connecting joint to
prevent any excess movement. Do not overtighten
screws; overtightening screws will damage
threads making it difficult to separate the
products.
Skip to step 7.
Installation to Extension Column (SP-EXTARM-01, SP-
EXTARM-02, SP-EXTARM-03, SP-EXTARM-04)
A
SWIVEL STOP SCREW
BACK OF
MOUNT
3/4" EXTENSION COLUMN
ACC 913
(NOT UL LISTED)
DETAIL 3
EXTENSION
COLUMN
M
Q
N
Q
A
SWIVEL STOP SCREW BACK OF
MOUNT
DETAIL 4
DETAIL 5
EXTENSION COLUMN
(SOLD SEPARATELY)
(UL LISTED)
