SECTION 2—OPERATION
BAR750 16 Part No 1143215
Raising and Lowering the Head
and Foot Sections
NOTE: For this procedure, refer to
FIGURE 2.2.
1. To raise the head of the bed, press the
Head UP button.
2. To lower the head of the bed, press the
Head DOWN button.
3. To raise the foot of the bed, press the
Foot UP button.
4. To lower the foot of the bed, press the
Foot DOWN button.

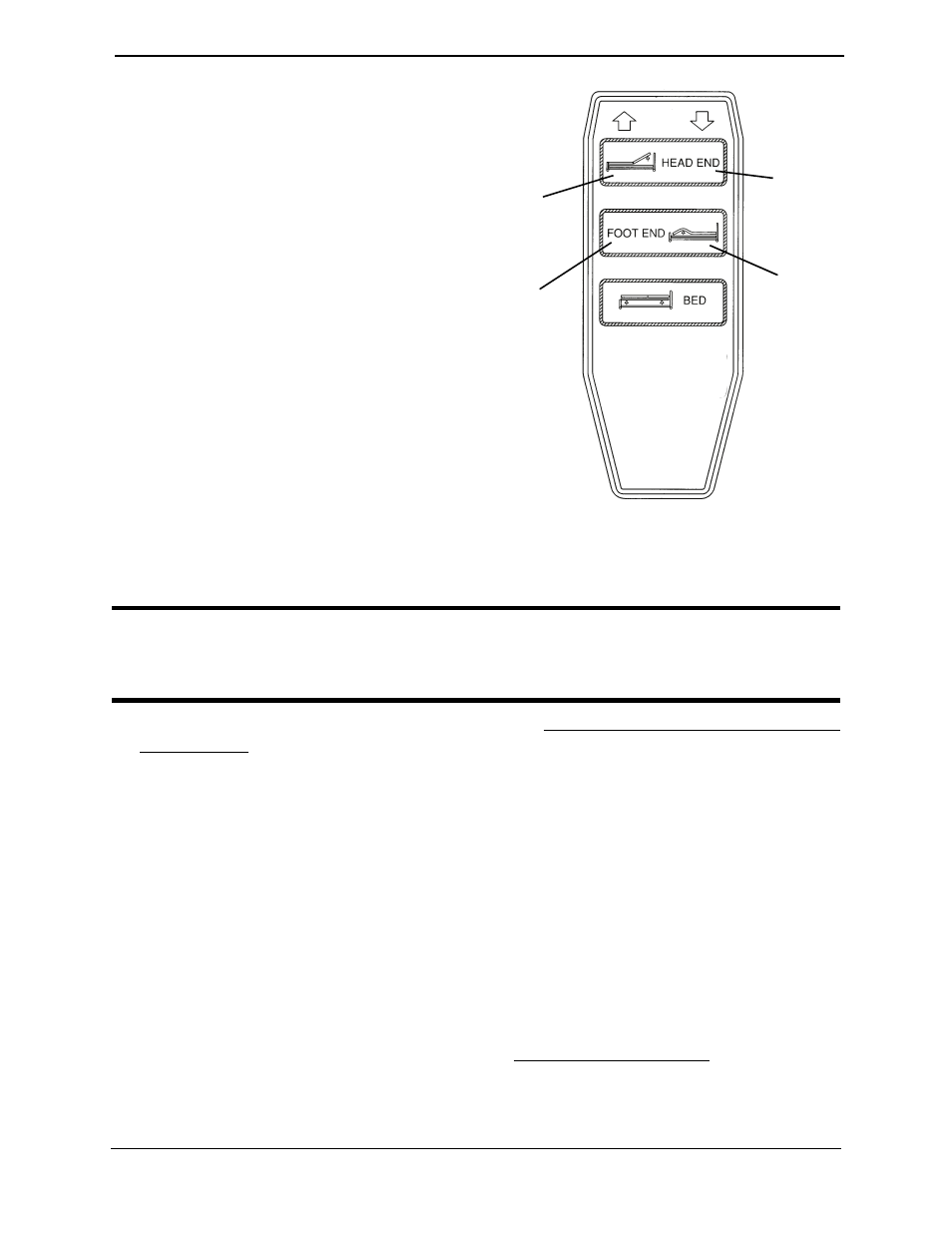

FIGURE 2.2 Raising and Lowering the Head
and Foot Sections
Upright Back Position (Fowler)
ƽ WARNING
Before operating the backrest ALWAYS ensure that casters are locked. Otherwise
an accident or injury may occur.
1. Raise the head section to Fowler position. Refer to Raising and Lowering the Head and
Foot Sections.
NOTE: The backrest stops at any angle between five degrees (horizontal) position and an upright
position of about 60 degrees.
Steering the Bed
NOTE: The bed can be steered in two modes, with the steering locked or with all four casters able
to move independently. The two casters on the head end are the “steer” control type.
Locking the Casters
NOTE: For this procedure, refer to FIGURE 2.3 on page 17.
NOTE: The steering lock function allows you to easily steer the bed in a straight line.
1. Lower the bed to the lowest postion. Refer to Operating Bariatric Bed on page 15.
2. At the head end of the bed, step down on the front of either caster pedal until it clicks.
NOTE: DO NOT lock the other steering caster.
Head
UP
Button
Foot
UP
Button
Head
DOWN
Button
Foot
DOWN
Button
