Diagram 12 – Impex CG 1400 User Manual

Page 21

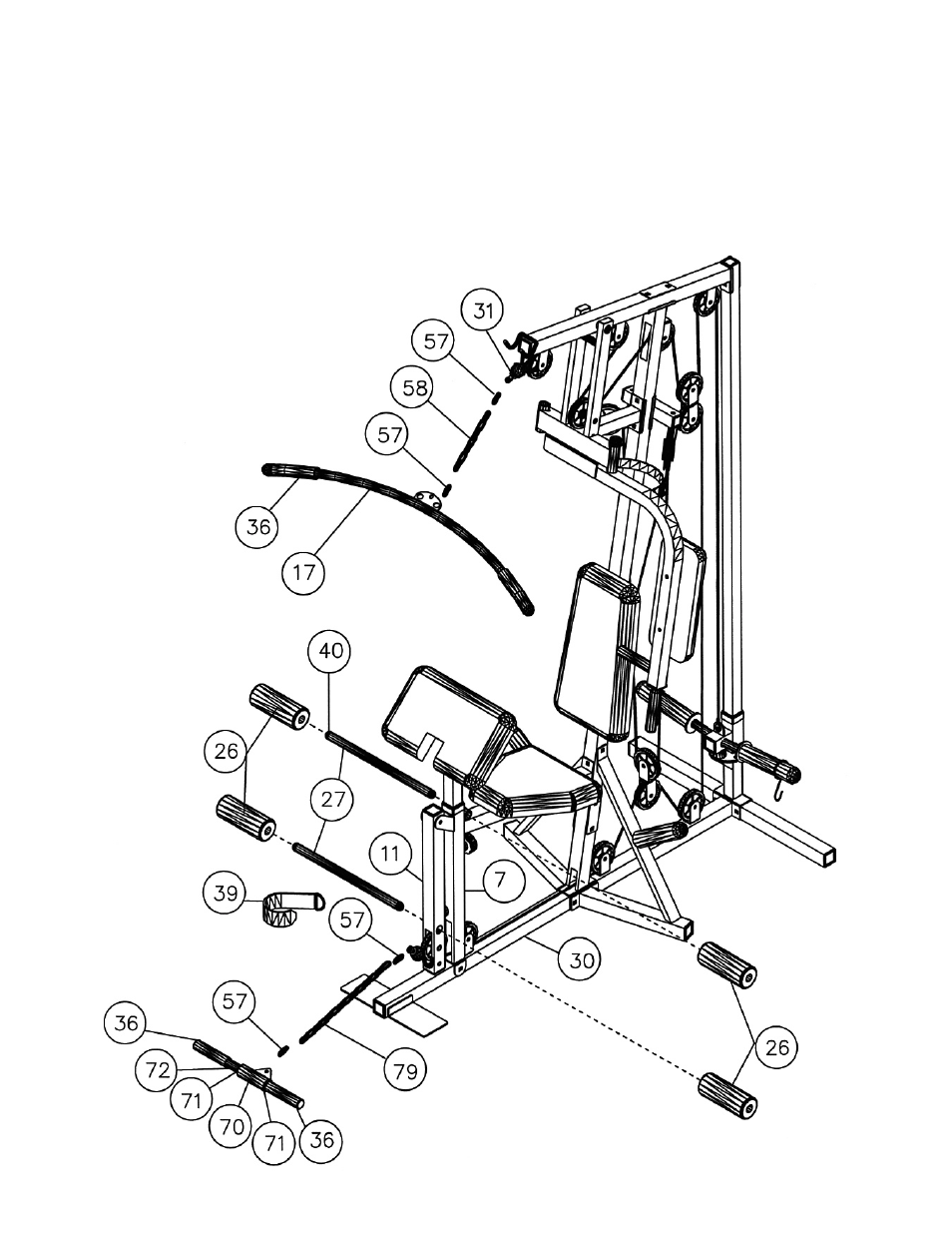

STEP 12 (See Diagram 12)

A.) Insert two Foam Roll Tubes (#27) halfway through the holes on the Main Seat Support (#7)

and Leg Developer (#11). Push four Foam Rolls (#26) onto the tubes.

B.) Connect the Arm Curl Handle (#70) to the Lower Cable with two C-clips (#57) and one Long

Chain (#79). Note: Remove the Arm Curl Handle and the Chain when using the Leg
Developer.

C.) Attach the Lat Bar to the Upper Cable with two C-clips (#57) and a Short Chain (#58)..

DIAGRAM
