STEP 2 (See Diagram 2)

A.) Attach the holed-side of the Backrest Supports (#4) to both ends of the Pivot on the

Main Frame (#2). Secure it with one M12 x 6 7/8” Hex Bolt (#28) and M12 Aircraft Nut (#35).

B.) Attach the Incline Support (#3) in between the Backrest Supports (#4). Secure it with a M10 x

5 ¾” Allen Bolt, two

3/4” Washers (#31) and one M10 Aircraft Nut (#34).

C.) Attach the Incline Support (#3) to the bracket on the Sliding Block (#9). Secure it with a M10 x

2 7/8” Allen Bolt (#26), two

¾” Washers (#31), and one M10 Aircraft Nut (#34).

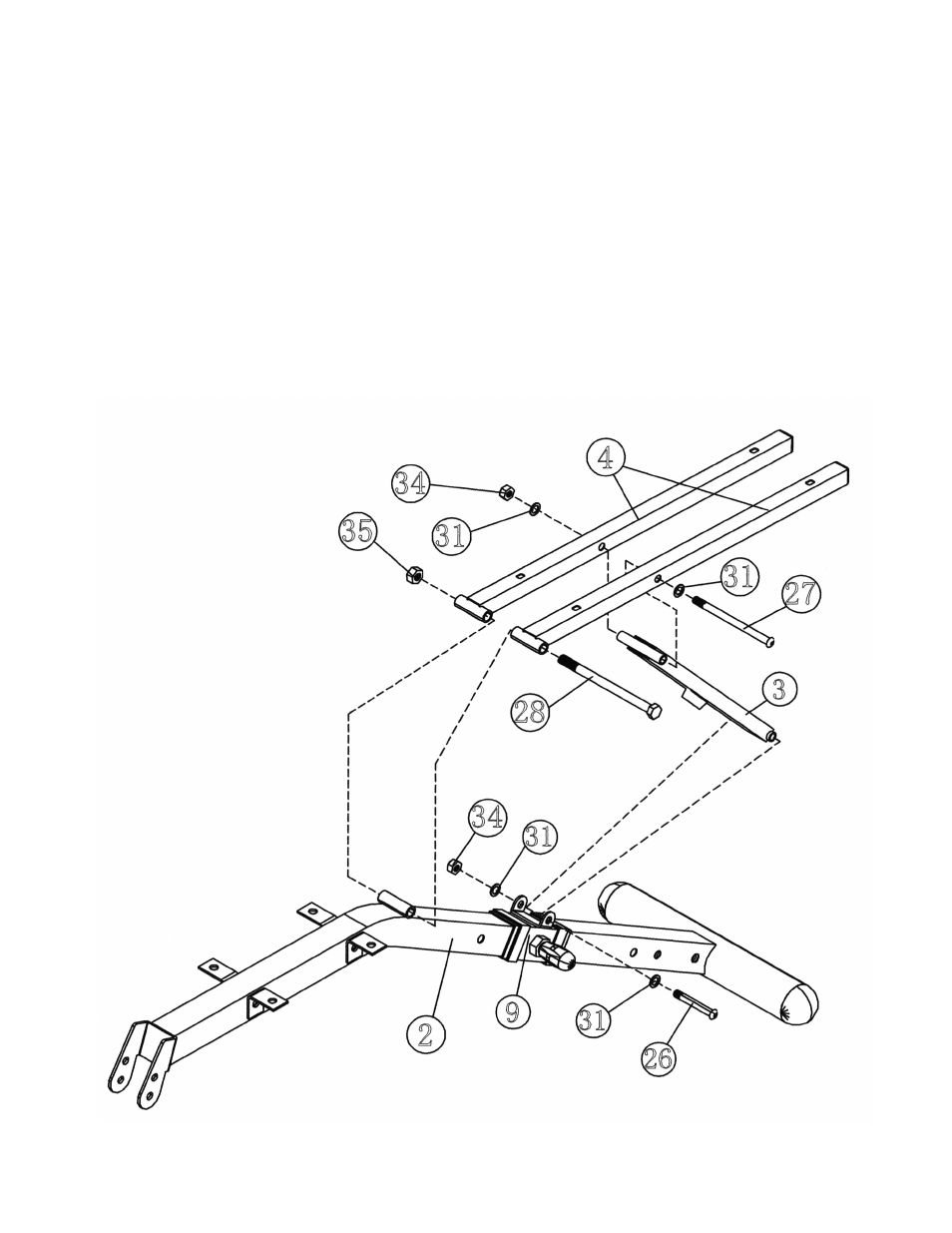

DIAGRAM 2

5
