Connector locations – IBM CMX58886CX User Manual
Page 24
16
CMX58886CX cpuModule
BDM-610000050
Rev A
Connector Locations

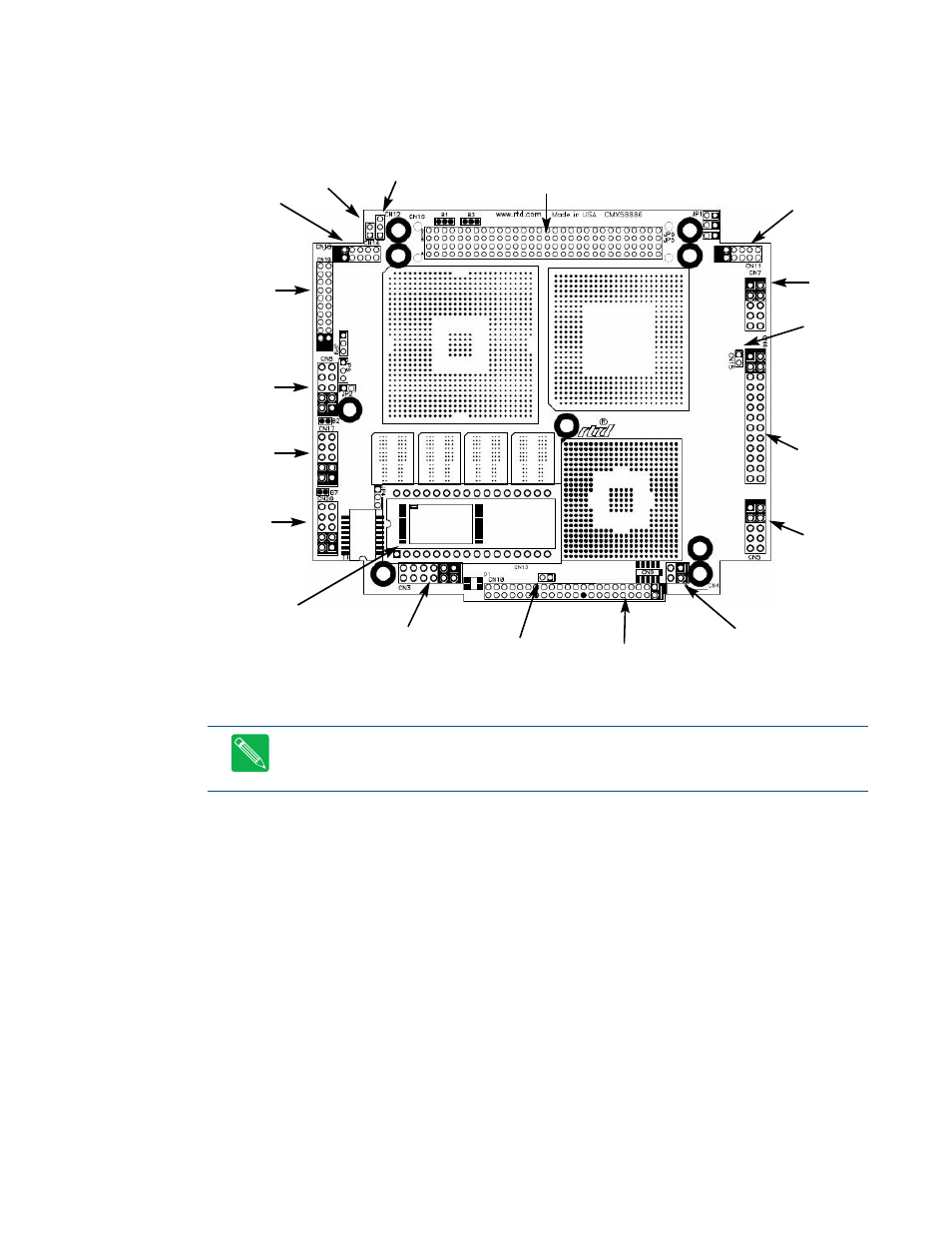

Figure 3 shows the connectors and the ATA/IDE Disk Chip socket of the CMX58886CX cpuModule.
Figure 3
CMX58886CX Connector Locations
Note
Pin 1 of each connector is indicated by a white silk-screened square on the top side of the board
and a square solder pad on the bottom side of the board. Pin 1 of the bus connectors match when
stacking PC104-Plus or PCI-104 modules.
ATA/IDE
Disk Chip
(U16)
PCI Bus (CN16)
COM1
(CN7)
COM2
(CN8)
SVGA
Video
(CN18)
EIDE (CN10)
Auxiliary Power
(CN3)
Multi-
Function
(CN5)
multiPort
(CN6)
LVDS Flat
Panel
(CN19)
Ethernet
(CN20)
USB 2.0
(CN17)
Audio
(CN11)
Bridge Link
(CN4)
CN12
CN13
CN14
CN15
