Page 8

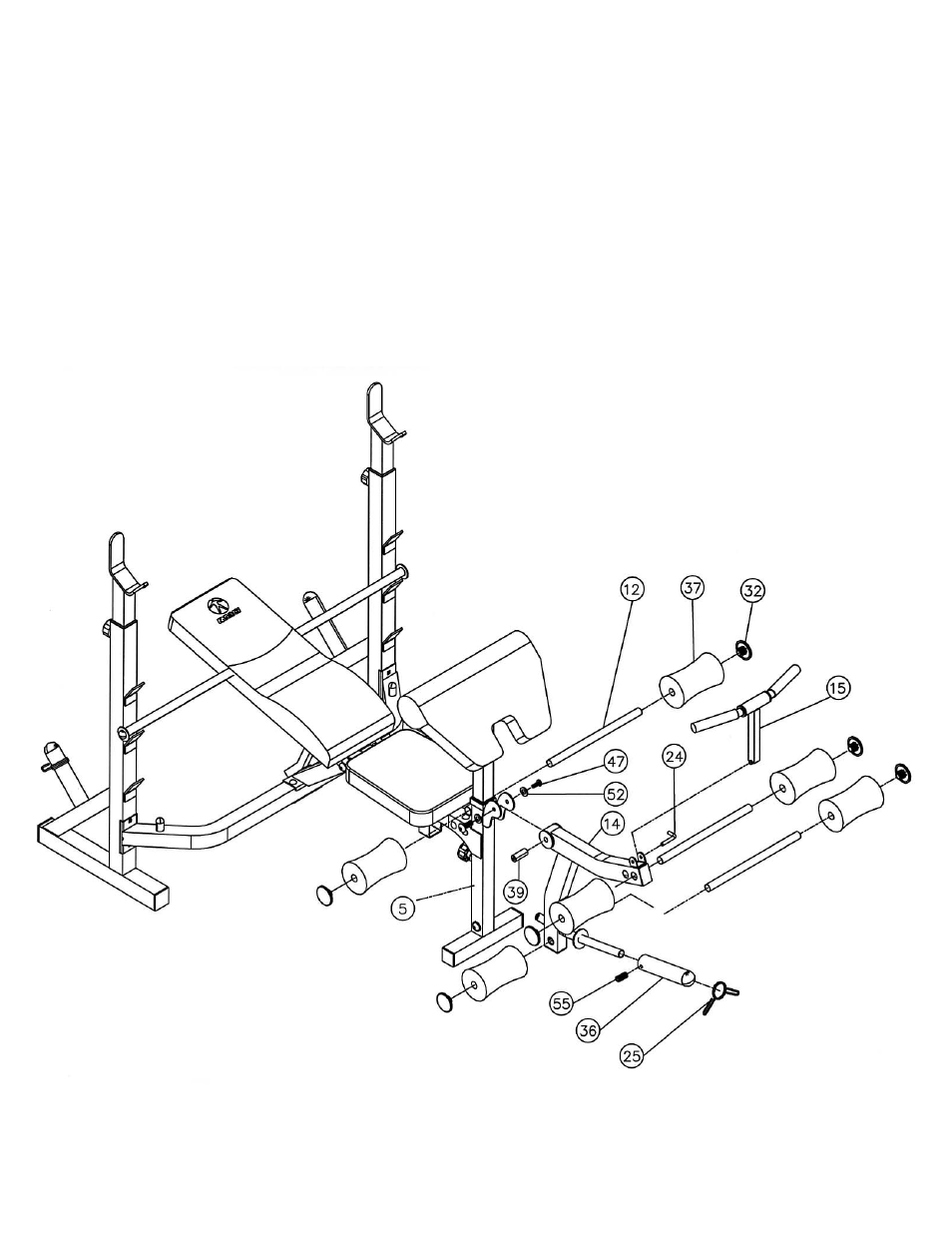

STEP 4 (See Diagram 4)

A.) Attach the Leg Developer (#14) to the Leg Developer Holder (#5). Secure it with an

Axle (#39), two M10 x 5/8” Allen Bolts (#47), and two Ø ¾” Washers (#52).

B.) Insert one Foam Tube (#12) halfway through the hole on the Leg Developer Holder.

Insert two Foam Tubes halfway through the holes on the Leg Developer.

C.) Push six Foam Rolls (#37) onto the Tubes from both ends. Plug six Foam Roll End

Caps (#32) into the ends.

D.) Attach the Curl Bar Handle Support (#15) to the bracket on the Leg Developer and

secure it with a 3” L-shaped Pin (#24). When using the Leg Developer, remove the
Pin, Curl Bar, and the Arm Curl Stand.

E.) Attach an Olympic Sleeve (#36) onto the weight post on the Leg Developer. Secure it

with a M8 x ½” Allen Screw (#55). Attach a Spring Clip (#25) to the Sleeve.

DIAGRAM 4
