Step 5

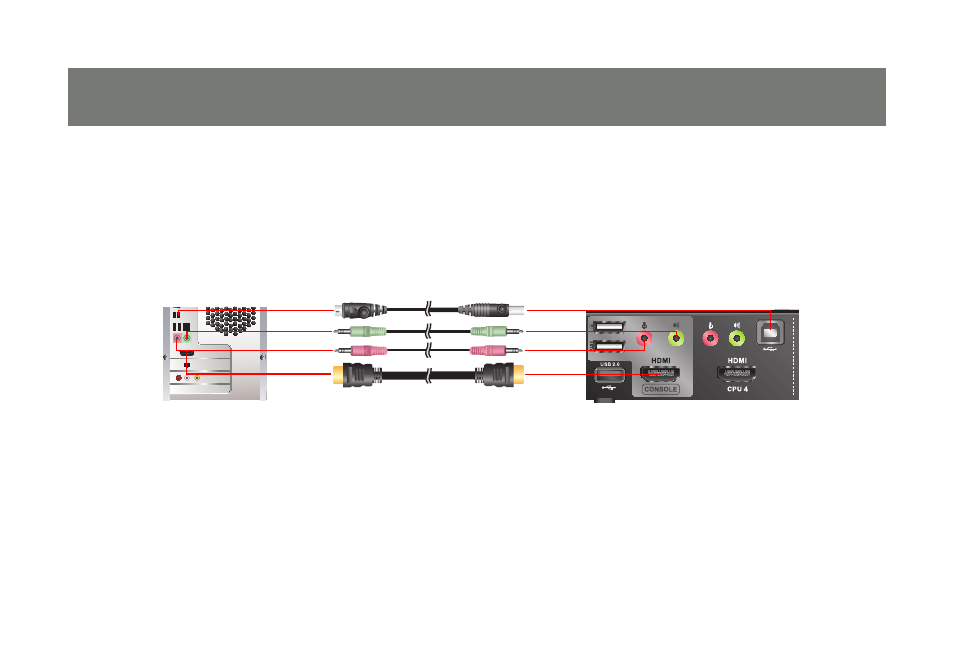

Connect a set of your HDMI KVM cable from the multimedia KVMP switch to each of your source devices
– HDMI cable to the HDMI output and USB cable to open USB port from your source device. Connect the
optional analog audio and mic connectors to your source device and if your device does not pass audio
through HDMI cable.
*If your source device has a DVI output instead of HDMI, please connect the HDMI (F) to DVI (M) Adapter (Model
No: GHDMIFDVIM) between your source device and your HDMI cable.
**If your source device does not support USB keyboard, mouse or peripheral, simply leave the USB connection
unconnected.
Final Step
Turn on your source devices.
