Connecting a Video Player
1 If your video player uses a round, one-prong composite video
connector, you’ll need only the A/V cable that shipped with
the projector.
• If your video player uses a round, four-prong S-video con-
nector, you’ll also need an S-video cable in addition to the
A/V cable. The S-video cable is sold separately. (See
“Accessories” on page 53.)
2 Plug the A/V cable’s yellow connector into the “video-out”
port on your video player (Figure 16). This port may be
labeled “To Monitor.”
• If you’re using an S-video cable, connect it to the “s-video
out” connector on the video player (Figure 17).
3 Plug the other yellow connector into the (composite
video) connector on the back of the projector.
• If you’re using S-video, plug the other end of the cable into
the (s-video) connector on the projector (Figure 17).

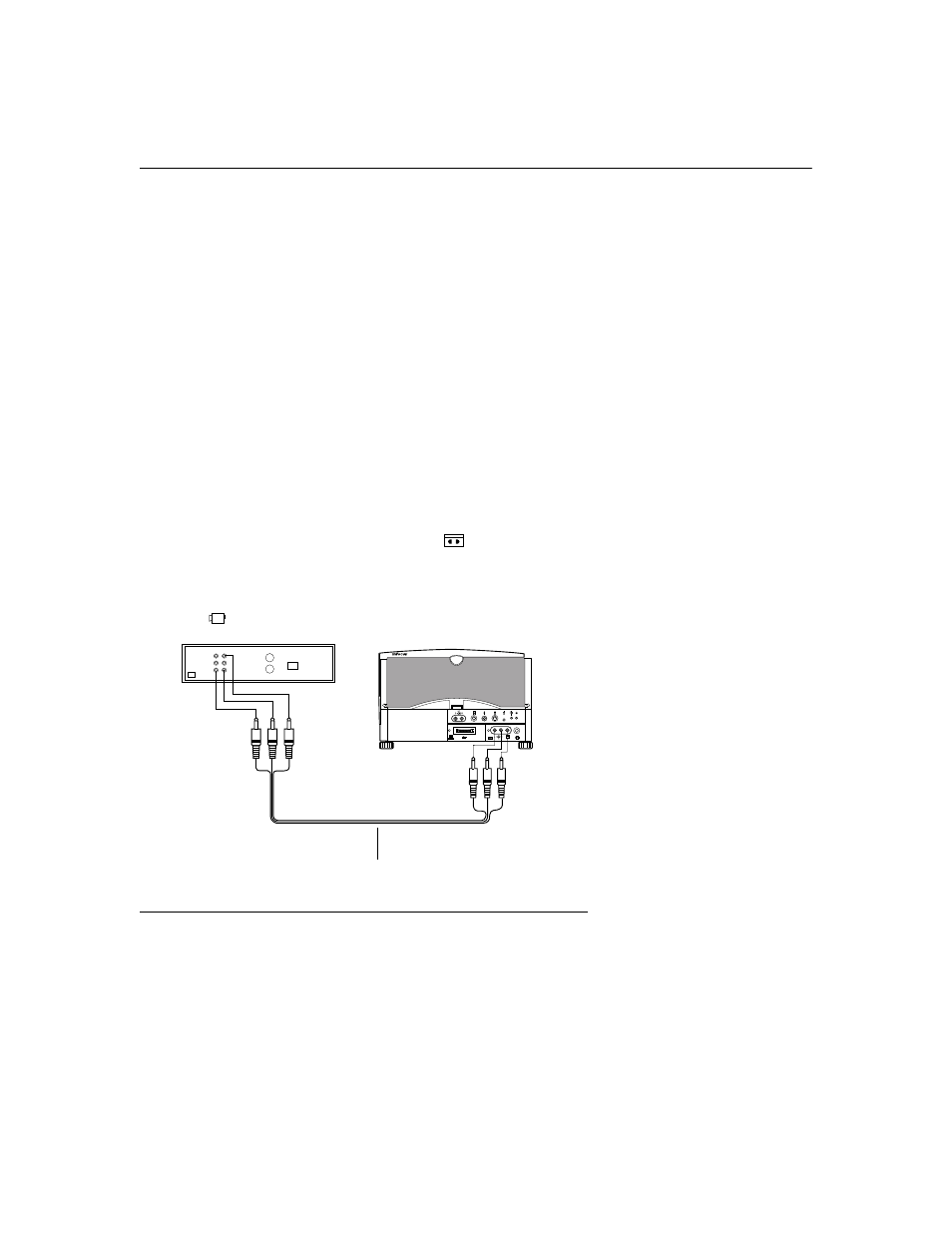

F IGURE 16
Connecting the projector to a video player using the standard A/V cable (with composite
video connector)
audio/video cable
