STEP 4 (See Diagram 4)

A.) Attach the Leg Developer (#11) to the Leg Developer Holder (#9). Secure it with an Axle

(#36), two M10 x 5/8” Allen Bolts (#52) and two

∅

¾” Washers (#56).

B.) Insert one Foam Tube (#24) halfway through the hole on the Leg Developer Holder.

Insert two Foam Tubes halfway through the holes on the Leg Developer. Push six Foam
Rolls (#30) onto the Tubes from both ends. Plug six Foam Roll End Caps (#38) into the
ends.

C.) Slide an Olympic Sleeve (#34) onto the weight post on the Leg Developer. Attach a

Spring Clip (#35) to the Sleeve.

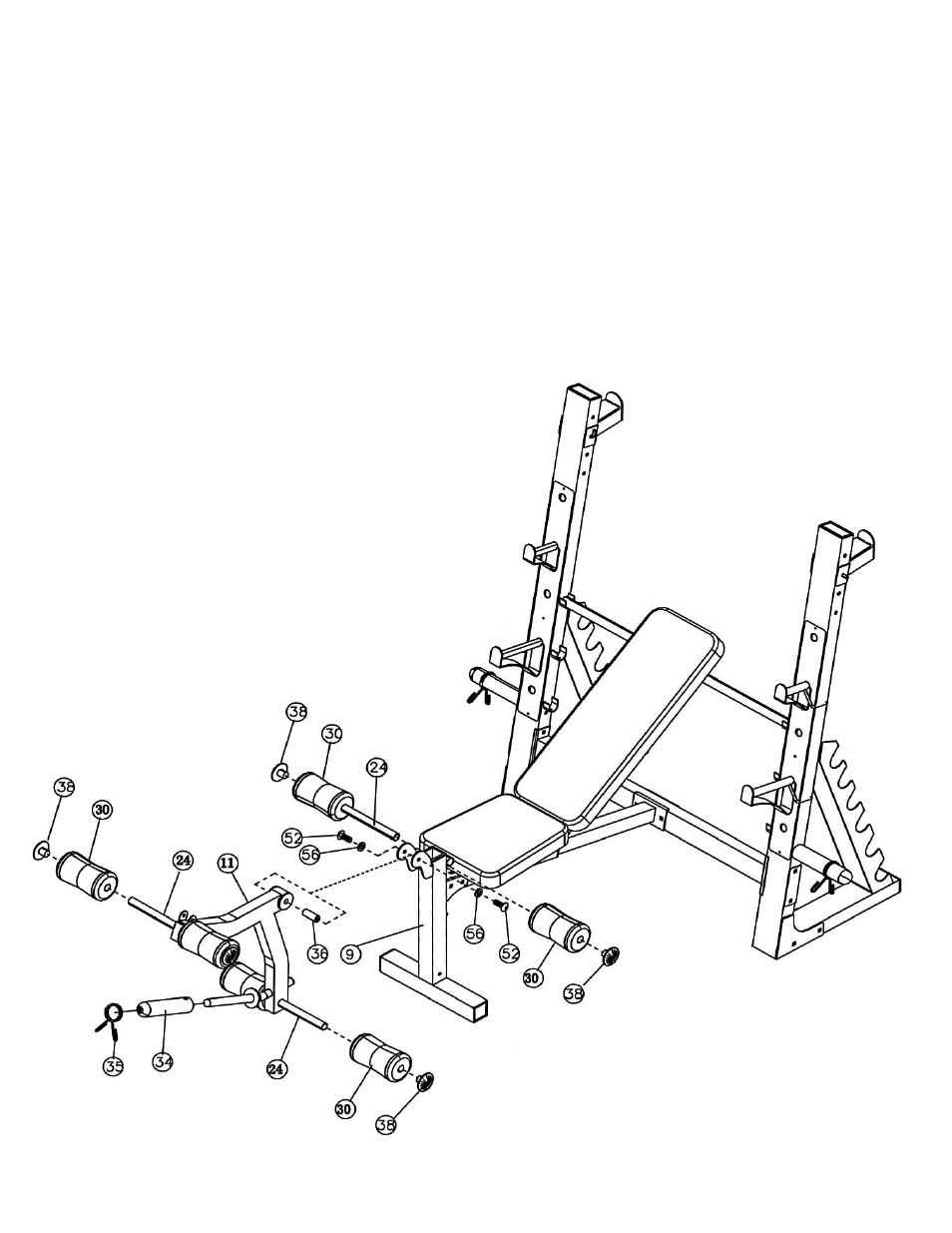

DIAGRAM 4
