MagicSpin Installation Guide
Page 12
4

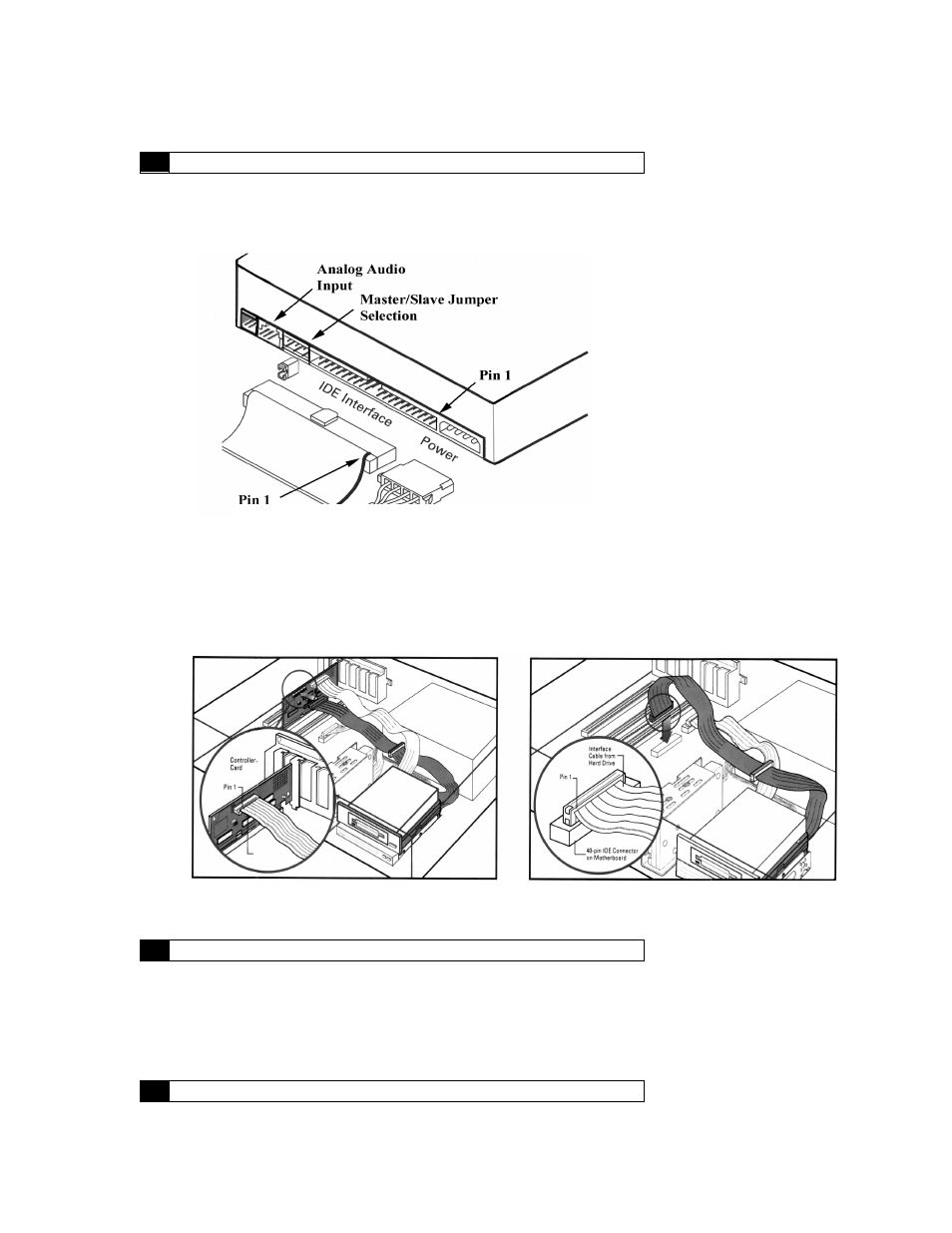

Connect the IDE interface cable.
Connect the 40 pin IDE cable into the MagicSpin CD-ROM drive’s IDE connector
located on the back of the CD-ROM drive (Figure 5).
Make sure to align the red-lined edge of cable with Pin-1 of the IDE connector. Connect
the other end into either your motherboard IDE controller, or your IDE controller card
plugged into your motherboard (Figure 6).
5
Connect the Audio cable from your Sound Card (If necessary).
If you have a sound card or an audio interface card, use the audio cable to connect from
the sound card audio port (SONY or IDE) to the MagicSpin CD-ROM drive’s Analog
Audio connector located on the back panel (Figure 4).
6
Re-attach the computer’s cover.
Figure 6: IDE connection
Figure 7: Connection to Motherboard
