ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches

NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.

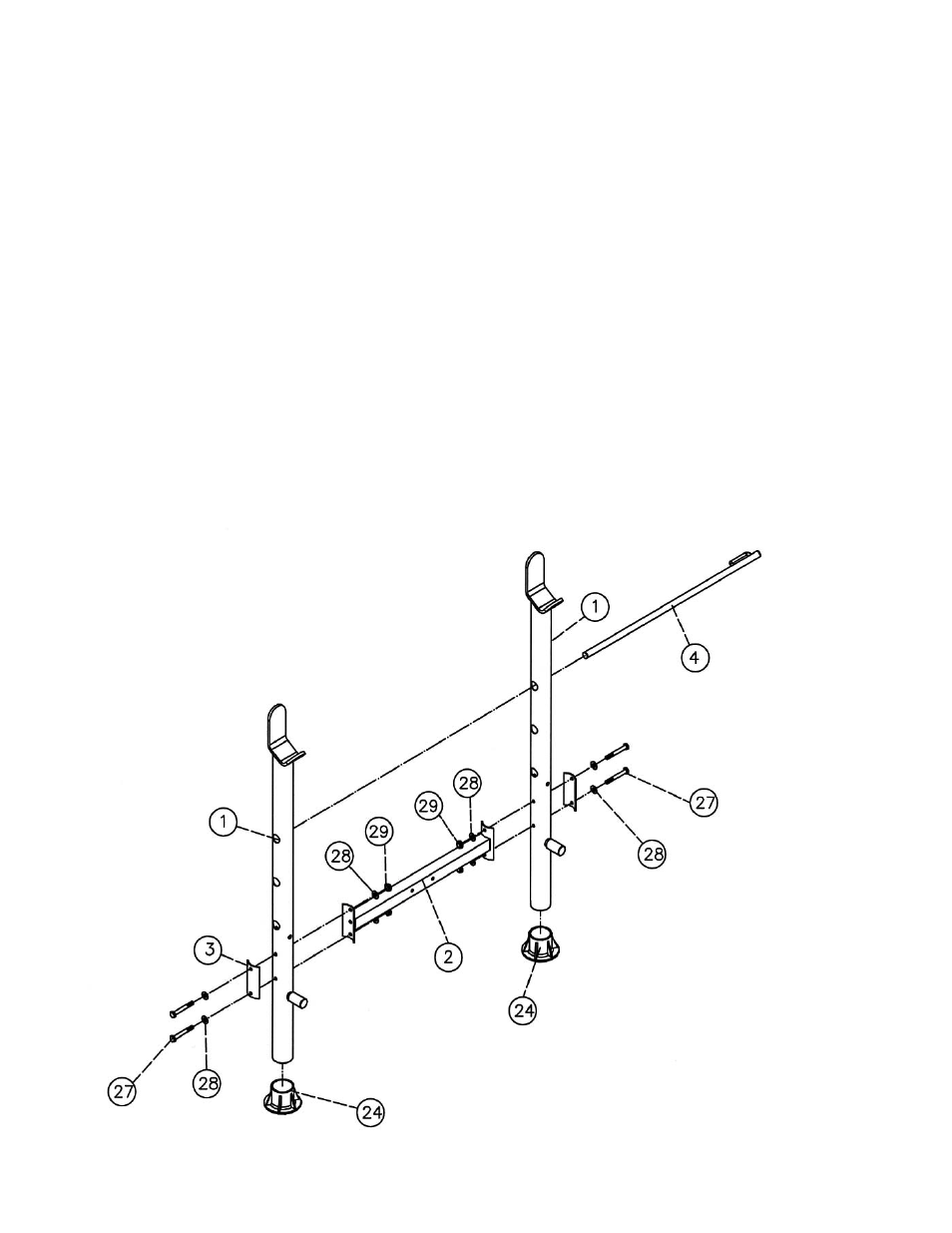

STEP 1 (See Diagram 1)

A.) Plug the two Stabilizer End Caps (#24) onto the bottom of the two Rear Upright

Beams (#1).

B.) Connect the two Rear Upright Beams by a Cross Brace (#2) in the Mid-span. Secure

them with two M8 x 3 1/8” Hex Bolts (#27), four

∅

5/8” Washers (#28), one Curved

Bracket (#3), and two M8 Aircraft Nuts (#29) on each end of the Cross Brace.

C.) Insert the Backrest Adjustment Bar (#4) through a selected hole to obtain desired

incline of Backrest.

Diagram 1
