STEP 3 (SEE DIAGRAM 3)
A.) Attach two Bushings (#54) to the pivot on the Main Seat Support (#1). Attach the
Seat Incline Support Bracket (#8) to the Bushings and align the holes. Secure it
with a M10 x 4 ½” Allen Bolt (#40), two
∅
7/8” Washers (#48), and a M10 Aircraft
Nut (#50). Do Not over tighten this nut and bolt. The Bracket needs to be able to
swing.
B.) Attach two Bushings (#54) to the Seat Incline Support Bracket (#8). Attach two
Seat Support Frames (#6) to the Bracket and align the holes. Secure them with a
M10 x 8 ¼” Allen Bolt (#38), two
∅
7/8” Washers (#48), and a M10 Aircraft Nut
(#50).

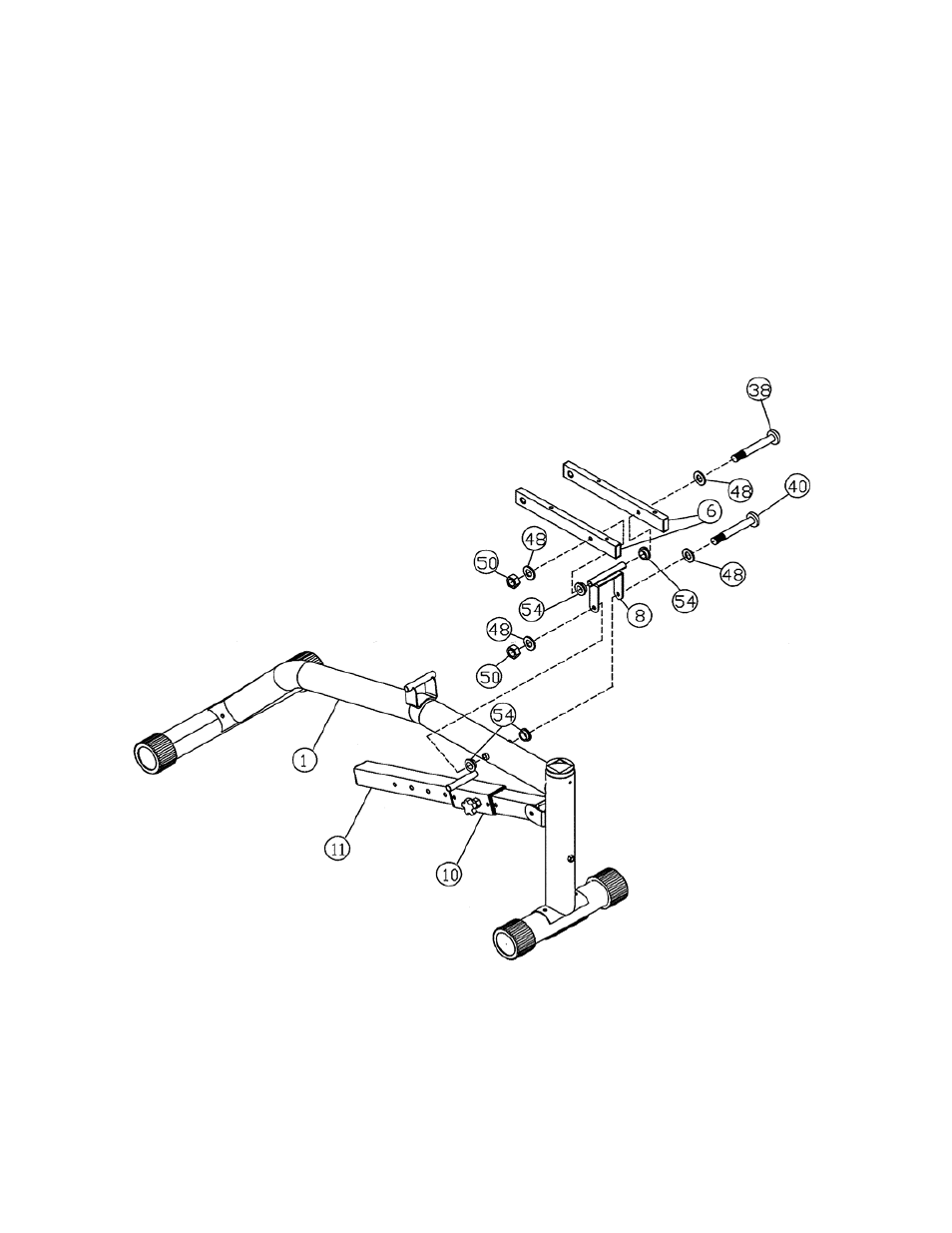

DIAGRAM 3
