Page 5

ASSEMBLY INSTRUCTION

Tools required to assembly the machine:
Two Adjustable Wrenches and Two Allen Wrenches

STEP 1

(SEE Diagram 1)

A.) Connect the Right Upright Beam (#3) to the Rear Stabilizer (#14). Secure them with

one Bracket (#17), two M10x 3 ¾” Carriage Bolts (#47), two M10 Aircraft Nuts (#50)
and two

∅

7/8” Washers (#48). Repeat the same procedure to assemble the Left

Upright Beam (#2).

B.) Connect these two Upright Beams by a Cross Brace (#13) in the mid span. Secure

them with one Bracket (#17), two M10 x 3 ¾” Carriage Bolts (#47), two M10 Aircraft
Nuts (#50) and two

∅

7/8” Washers (#48) on each side.

C.) Insert two Crutches (#12) into the opening holes on top of Left & Right Upright
Beams. Insert two Lock Knobs (#36) through selected holes to obtain desired

height.

D.) Insert the Left and Right Safety Hooks (#20) & (#21) into the holes on top of the

Crutches (#12). Secure them with two M8 Aircraft Nuts (#51).

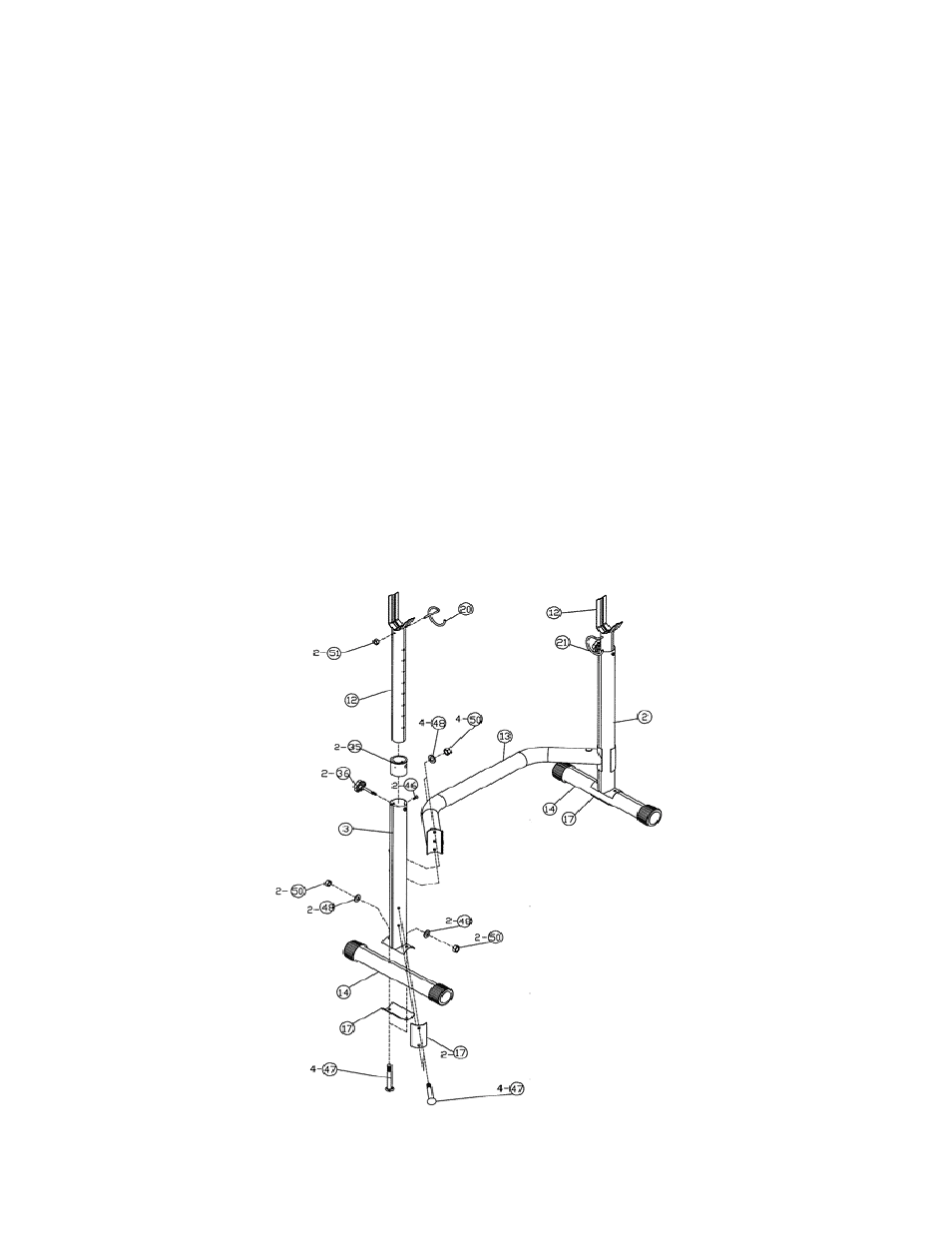

DIAGRAM 1
