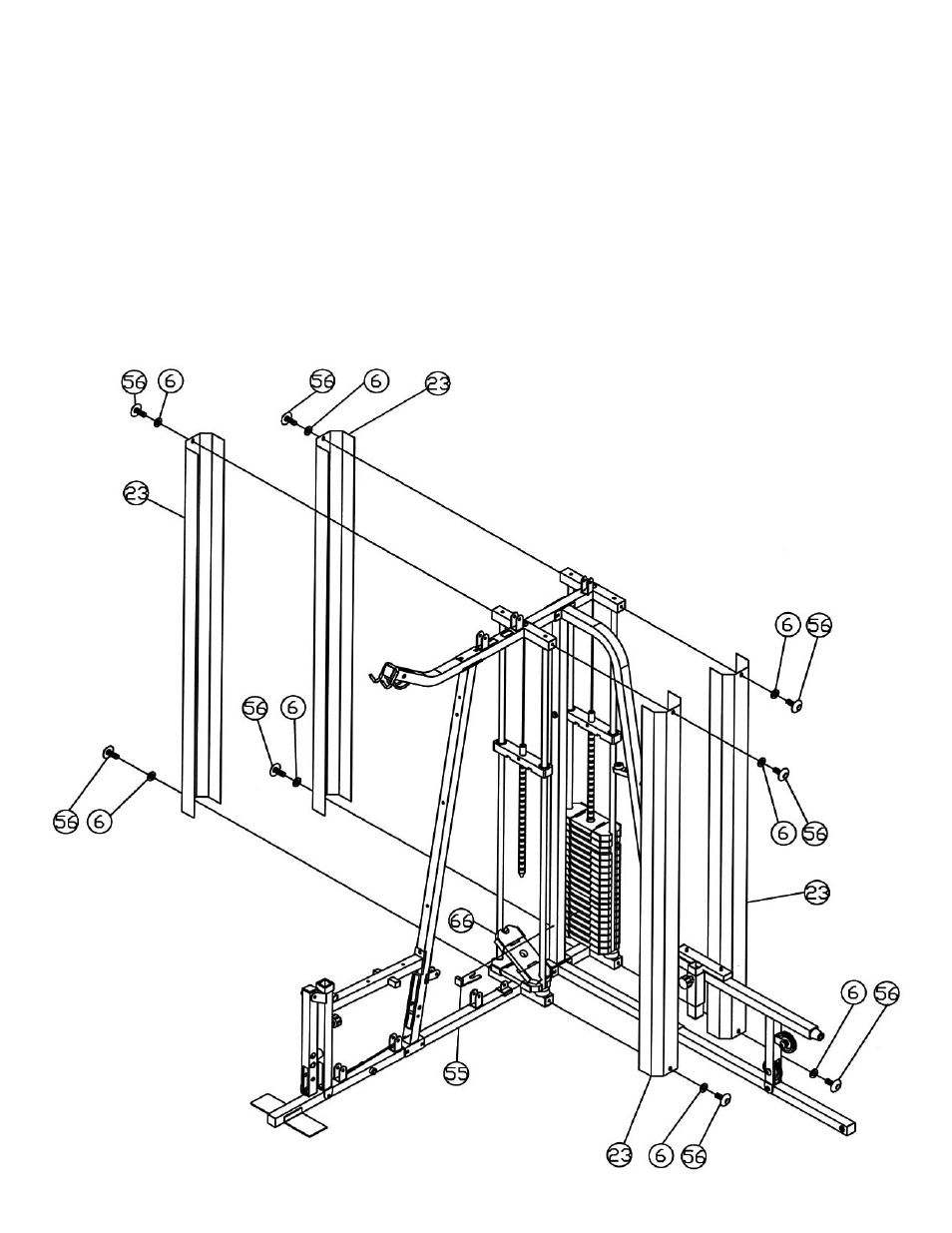

STEP 13 (See Diagram 13)
A.) Securely tighten all the nuts and bolts previously installed.
B.) Before putting the Weight Plates on, now move the machine to the corner of the room or

place where you will use the machine.

C.) Lift up the Selector Rod and install a stack of 19 Weight Plates (#66). To install the plates,

hold the plate at an angle and place between the two Guide Rods then drop it down. Make
sure the grooves on the plastic covers all face up. All the Plates should interlock with each
other. See diagram below. It is strongly recommended to spray some lubricant such as WD-
40 on the two Guide Rods to minimize friction. Use the Selector Pin (#55) to select the desired
weights. The Magnet on the Pin should face up. Repeat the same procedure to install
another stack of Weight Plates.

D.) Attach four Weight Stack Covers (#23) to the machine and secure each Weight Stack Cover

with two M10 x 1” Allen Bolts (#56) and

∅

3/4” Washers (#6).
