IBM Ethernet Switch B24X 4
Additional options are available through IBM System Networking HVEC channels. Table 4 lists the
orderable part numbers for these additional options.

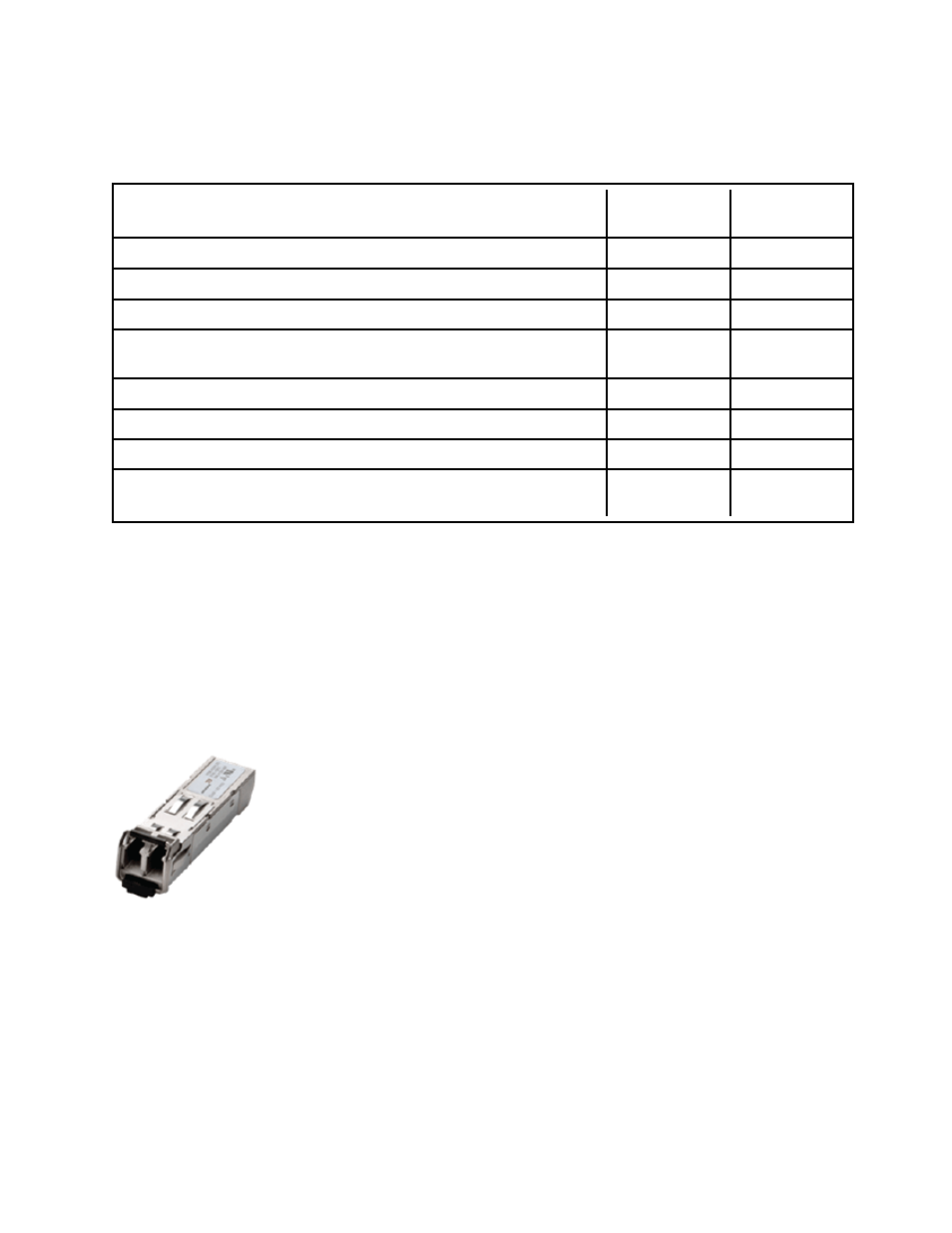

Table 4. IBM part numbers and feature codes for ordering (System Networking HVEC)
Description IBM part
number
IBM feature
code
10 GbE Direct Attach SFP+, 1 m, Active TwinAx copper cable 45W2398 2711
10 GbE Direct Attach SFP+, 3 m, Active TwinAx copper cable 45W2408 2731
10 GbE Direct Attach SFP+, 5 m, Active TwinAx copper cable 45W3039 2751
1 GbE 100 m SFP, 1000BASE-T (RJ-45, connects to CAT5 or
higher cabling)
45W2813 2202
1 GbE 550 m SFP, 1000BASE-SX (duplex LC, MMF, 850 nm, OM) 45W2815 2211
1 GbE 10 km SFP, 1000BASE-LX (duplex LC, SMF, 1310 nm, OM) 45W2816 2212
1 GbE 70 km SFP, 1000BASE-LHA (duplex LC, SMF, 1550 nm, OM) 45W2817 2213
10 GbE 10 km, SFP+, 10GBASE-LR (duplex LC, SMF, 1310 nm,
OM)
45W4264 2131
Note: OM = Optical Monitoring supported. SMF = single-mode fiber. MMF = multi-mode fiber. MMF
distance supported depends on cabling type. Use OM3 50 ìm (2000 MHz*km) MMF to support the farthest
distances.
The B24X has twenty-four dual-speed 10/1 GbE SFP+ ports enabling customers to seamlessly transition
their 1 GbE devices to 10 GbE speeds by upgrading the transceiver. Qualified SFP+ or SFP transceivers
are required for each SFP+ port and are not included. Up to twenty-four 10 GbE SFP+ or 1 GbE SFP
transceivers are supported on each IBM Ethernet Switch B24X.
10 GbE SFP+ optical –SR (10GBASE-SR) transceivers support distances up to 300 m, which is ideal for
connectivity within a data center. 10 GbE SFP+ optical –LR (10GBASE-LR) transceivers support extended
distances up to 10 km.
Figure 3. SFP+/SFP optical transceiver - Receives duplex LC connectors
