STEP 4 (See Diagram 4)
A.) Attach the Right & Left Seat Swivel Frame (#13) & (#14) to Main Base Frame (#1) from each
side. Secure them together with one M12 x 7 7/8” Allen Bolt (#74), two Ø 1” Washer (#90),
and one M12 Aircraft Nut (#93). Do not over tighten the Nut and Bolt. Make sure the
Swivel Frames are able to swivel smoothly.
B.) Repeat above procedure to install the two Front Seat Swivel Frames (#12).
C.) Attach the Seat Support to the top of the two Seat Swivel Frames and Swivel Supports.
Secure them together with two M12 x 7 7/8” Allen Bolts (#74), four Ø 1” Washers (#90), and
one M12 Aircraft Nut (#93).
D.) Attach Leg Developer (#10 to open bracket on the Seat Support. Secure it with one 2 ½”
Axle (#60), two Ø ¾” Washers (#91), and two M10 x 5/8” Allen Bolts (#83).

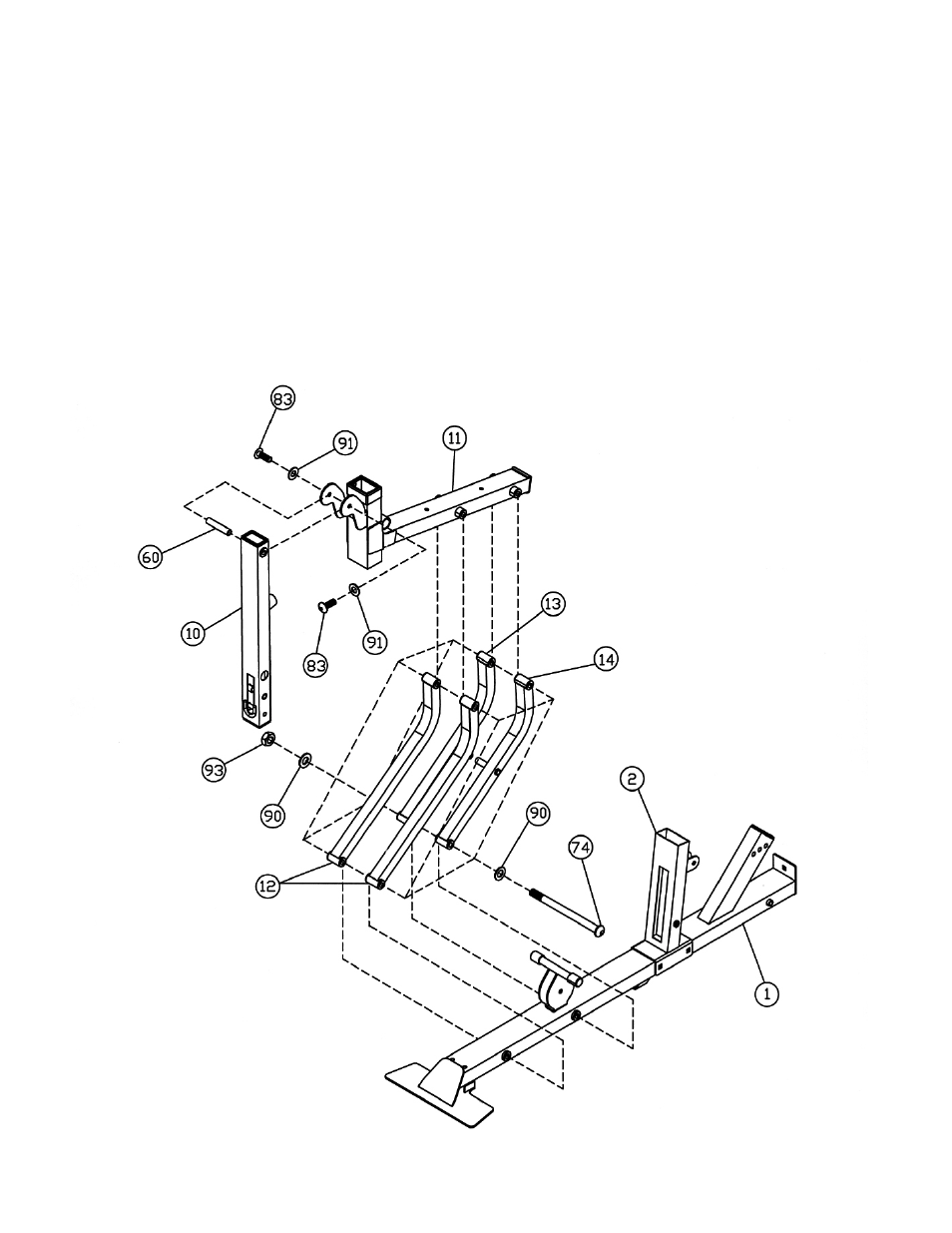

DIAGRAM 4
12
