SECTION 13—TRANSPORTING
61

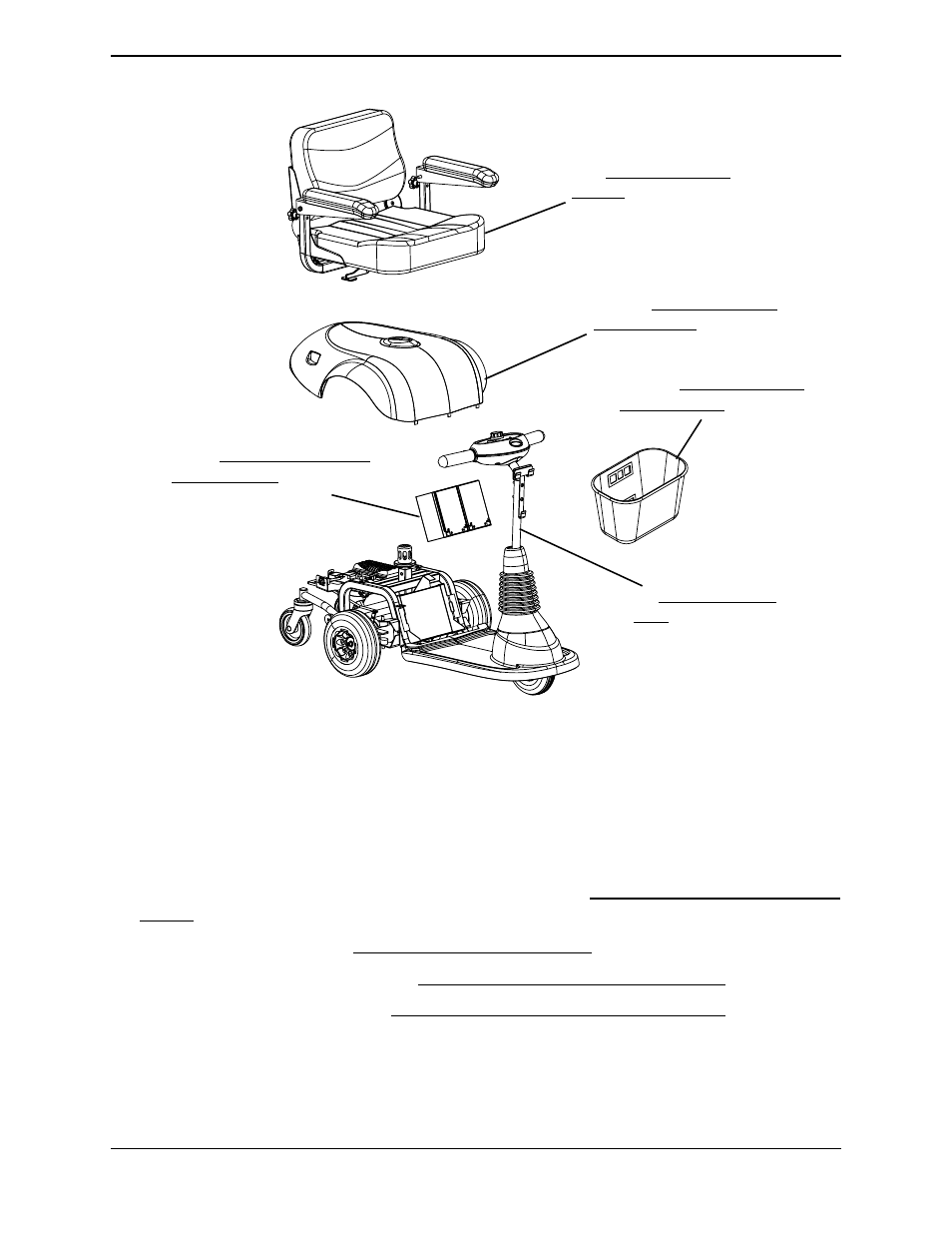

FIGURE 13.1 - TRANSPORTING THE SCOOTER - 300
400
NOTE: For this procedure, refer to FIGURE 13.2.
DISASSEMBLING
1. If installed on scooter, remove the front basket. Refer to Removing/Installing the Front
2. Remove the seat. Refer to Removing/Installing the Seat on page 34.
3. Remove the rear shroud. Refer to Removing/Installing the Rear Shroud on page 44.
4. Remove the batteries. Refer to Removing/Installing the Batteries on 400 on page 53.
5. Disconnect the 4-housing motor [located under marker label # 1] connector from the
controller (Detail “B” of FIGURE 13.2).
6. Perform the following to separate the FRONT frame assembly from the REAR frame
assembly:
