INSTALLATIONS

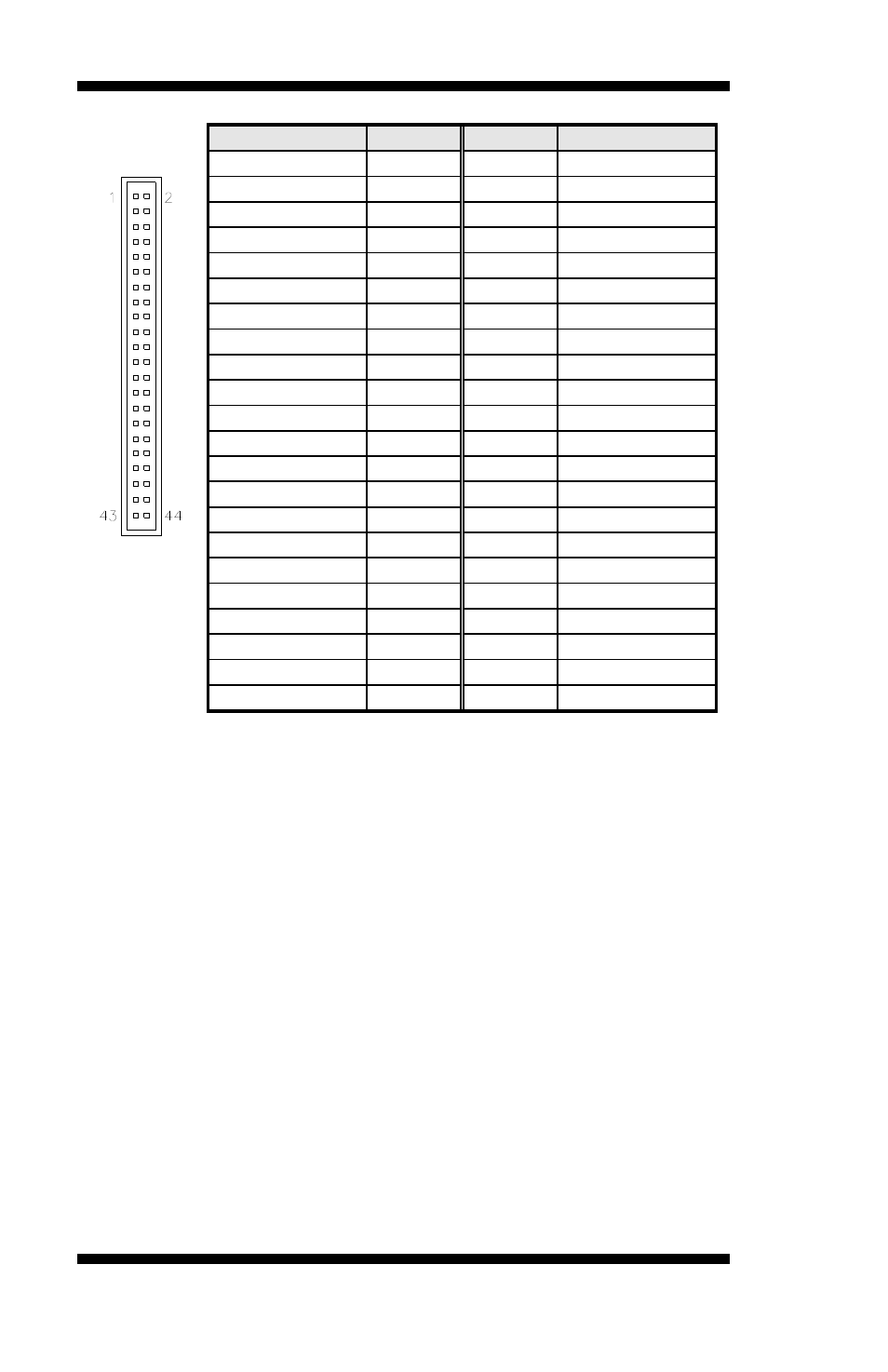

CN14: Front Side Bridge Board to ID370

Signal Name

Pin #

Pin #

Signal Name

PWR-SW 1 2 GND

Reset-SW 3 4 GND

Speaker 5 6 VCC

VCC 7

8

VCC

GND(PWR LED)

9

10

Pull up to VCC

HDD LED

11

12

Pull up to VCC

RELAY LED

13

14

Pull up to VCC

GND 15

16

GND

GND 17

18

GND

GPO0 19

20

GPI0

GPO1 21

22

GPI1

GPO2 23

24

GPI2

GPO3 25

26

GPI3

GPO4 27

28

GPI4

GPO5 29

30

GPI5

GPO6 31

32

GPI6

GPO7 33

34

GPI7

VCC 35

36

VCC

GPIO26 37

38

GPIO32

GPIO27 39

40

GPIO56

GPIO28 41

42

GPIO57

VCC3 43

44

VCC3




















IDE1: Primary and Secondary IDE Connectors


16
